Hunter Industries Pump Start Relay


Price:
Sale price $67.20
Stock:
In stock

Description

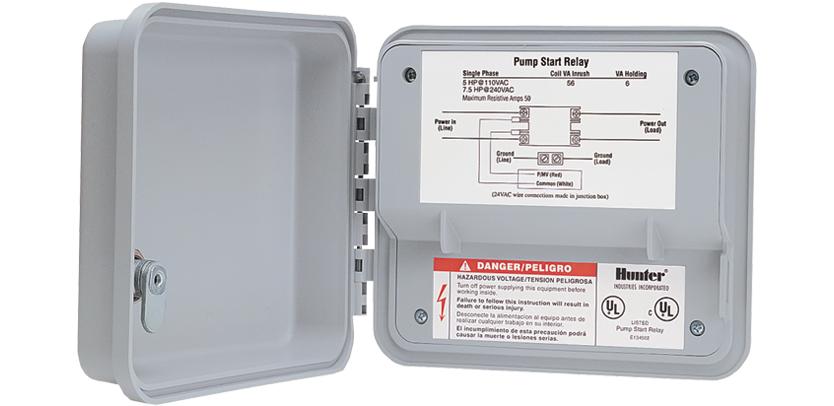

When a system requires the use of a booster pump or pulls water directly from a creek or pond, it’s imperative to include a relay that can be counted on to activate the pump each and every time. Hunter’s Pump Start Relay (PSR) has been created to provide that reliability–as well as a lockable NEMA rated enclosure–at an economical price. Available in a choice of three models to accommodate a variety of power sources and landscape needs, the PSR is fully compatible with all standard 24VAC controllers. It’s also designed with user-friendliness in mind. Flying wire leads allow for effortless 24V connections. Plus a wide array of "knockouts" make wiring easy and accommodating to most mounting specifications.

Key Benefits

  • A pump start relay family for a variety of voltage and power requirements.

  • 24 VAC flying leads make connection to the controller quick and easy

  • Suitable for conventional wiring or two-wire decoder activation, allows flexible installation options

  • Provides a solution for irrigation controller and pump start relay installations that have insufficient power to activate the pump

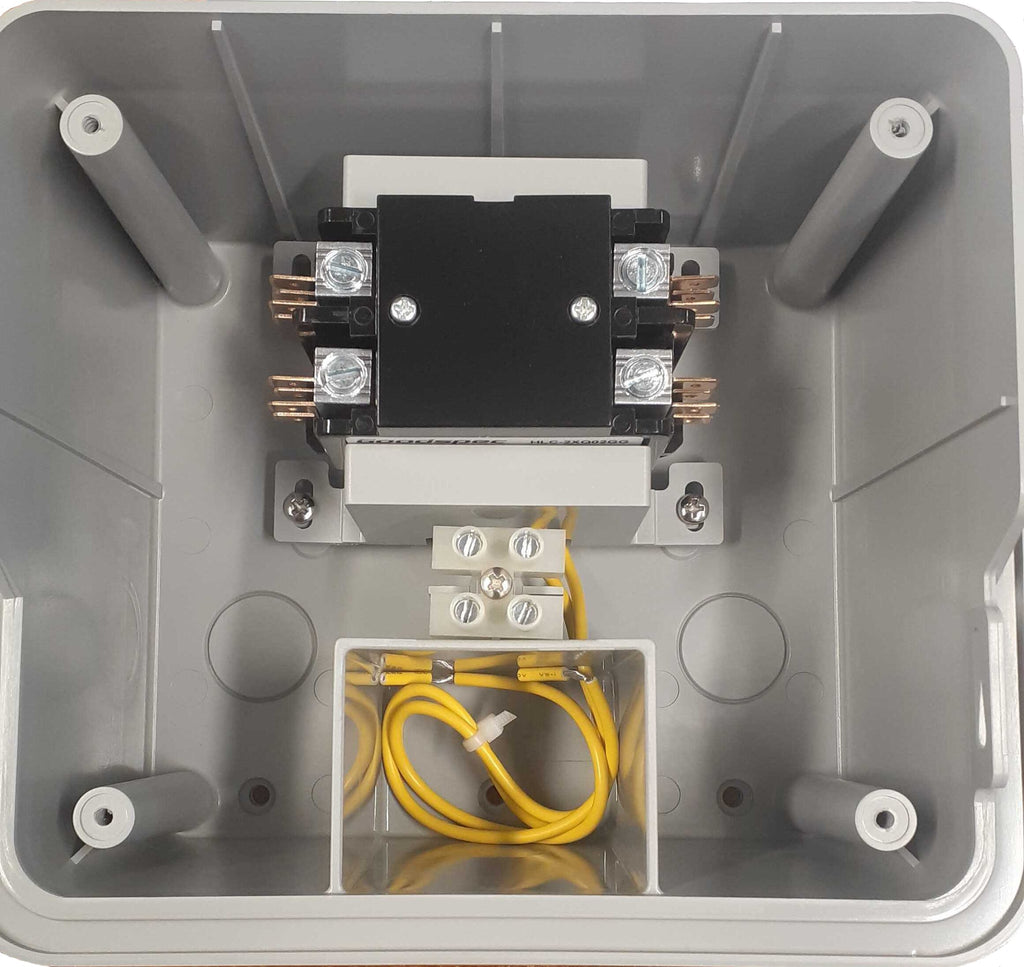

  • Includes solid state relay and local 24 VAC transformer for simple PSR activation

Operating Specifications

  • Recommended installation: minimum 15' from irrigation controller
  • Primary AC power input: 120/230 VAC
  • Secondary AC power output: 24 VAC, 1.6 A
  • Relay rating: Double-pole, double-throw solid state (10 A)
  • Approvals: IP44, UL, CE, NEMA 3R rated
  • Warranty period: 2 years

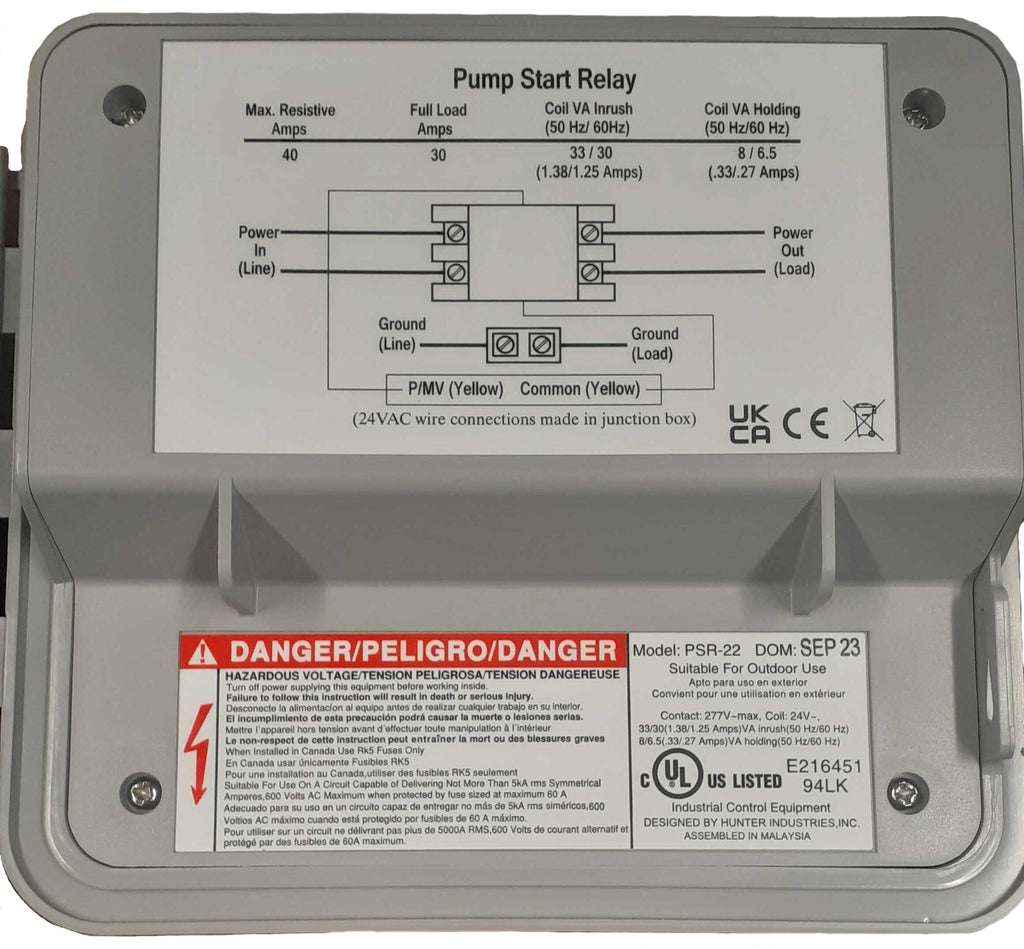

Models Single Phase 3 Phase** Max. Full
Load Amps
Max.
Resistive
Amps
Coil VA Coil VA
HP at
120 VAC
HP at
230 VAC
HP at
230 VAC
Inrush (Amps) Holding (Amps)
PSR-22 2* 3* N/A 30 40 30 (1.25) 6.5 (0.27)
