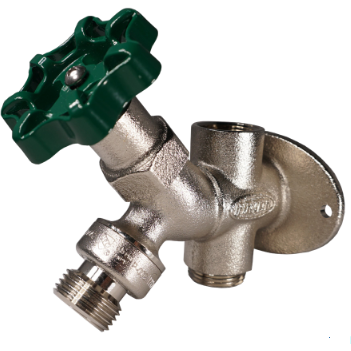

Prier P-366 Angle Sill Faucet for Exposed Piping - Double Check Vacuum Breaker

PrierSKU: P-366NP.75

Sale price $142.94
Re-stocking soon


Prier P-366 Angle Sill Faucet for Exposed Piping - Double Check Vacuum Breaker - Operating Key & Handle - 3/4" - Satin Nickel Plated - P-366NP.75

PRIER’s exposed pipe angle sill faucets are designed for areas that require water service with an anti-siphon backflow check valve connection, but are not subject to freezing temperatures. Typical installations include outdoor connections in mild climates or any indoor installation for residential, commercial, institutional and industrial applications. The heavy pattern design with solid brass stem assures years of reliable service with minimal maintenance.


  • Heavy pattern satin nickel plated cast brass construction with solid cast brass mounting flange with enclosed screw holes
  • 3/4” FPT inlet option on top and bottom for flexibility during installation
  • Includes brass plug for easy close-off and ‘drain down’ for the system
  • Integral shut off allows valve to be shut off and serviced without shutting off entire system
  • Powder coated aluminum metal handle or operating key on loose key vandal proof angle sill faucets
  • Stainless steel seat washer screw and handle screw
  • Full circle ACME threads on stem assembly with standard 1/4” L size seat washer
  • AFG teflon with graphite packing
  • P-156, P-256 and P-356 have a P-002 vacuum breaker backflow check valve approved under ASSE 1011
  • P-166, P-266, and P-366 have a P-004 vacuum breaker backflow double check valve approved under ASSE 1052
