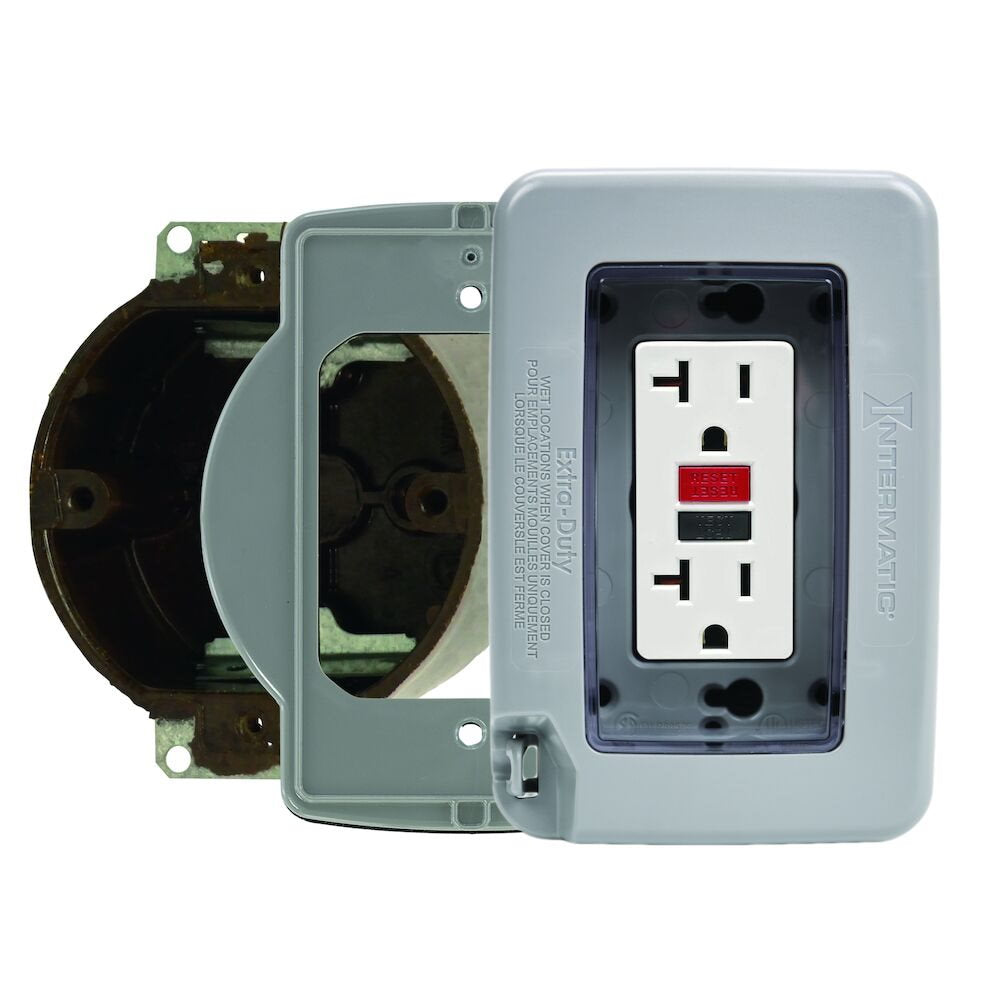

Intermatic WP7003G Low-Profile Extra-Duty Plastic In-Use Weatherproof Cover, Single-Gang, Vrt/Hrz, Clear, 3/0 Adapter Plate

IntermaticSKU: WP7003G

Price:
Sale price $12.80
Stock:
Sold out

Description

Specifications

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

  • Includes 3/0 adapter plate for 3” (76 mm) round box
  • 100% Paintable surface
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • Exceeds CEC Section 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
  • 1?8" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 0.19" dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact

Applications:

  • Receptacle Protection

Specifications:

Box Type Single Color Clear, Gray
Is Extra-Duty Rated Yes Enclosure Type Outdoor type 3R plastic
Hinge Direction Vertical/Horizontal Warranty Period 1-Year limited
Accepted Cord Size Max 1x16 AWG Cover Gasket 3mm
Has Reinforced Hinge Pin Yes Material UV Stabilized Polycarbonate
RoHS Certification Yes Trade Size in 3-1/2
Weatherproof Cover Material UV Stabilized Plastic Product Depth (in) 1.5
Product Depth (mm) 38.1 Product Height (in) 5.5
Product Height (mm) 139.7 Product Width (in) 3.75
Product Width (mm) 95.25 Unit Carton Height (in) 1.675
Unit Carton Length (in) 5.5 Unit Carton Weight (lb) 0.5
Unit Carton Width (in) 4
