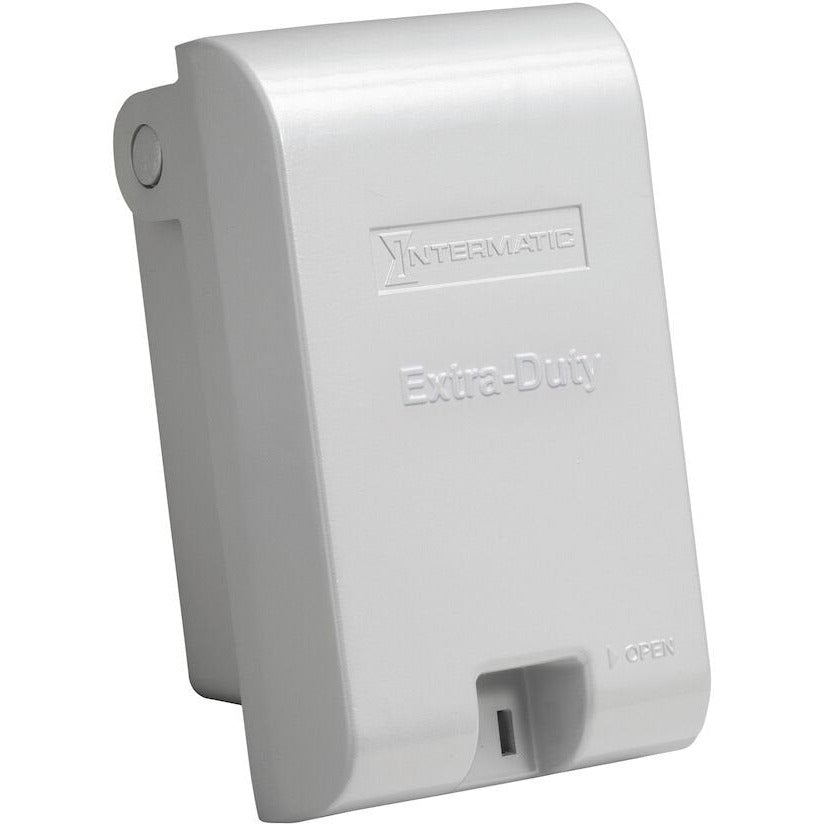

Intermatic - WP3110MXD - Extra-Duty Die-Cast In-Use Weatherproof Cover, Single-Gang, Vrt, 2.75" Gray

IntermaticSKU: WP3110MXD

Price:
Sale price $20.15
Stock:
Sold out

Description

Spec Sheet  Install Manual

Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
  • 1?8" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4" (6 mm) dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
  • Warranty: 1-year limited

Applications:

  • Engine Block Heaters
  • Receptacle Protection
  • Walk-in Refrigeration Cooler/Freezer

Specifications:

Box Type Single Color Gray
Is Extra-Duty Rated No Hinge Direction Vertical
Warranty Period 1-Year limited Accepted Cord Size Max 1x12 AWG
Insert Types Included WP17 Material Die-Cast Aluminum
Trade Size in Other Product Depth (in) 2 3/4
Product Depth (mm) 70 Product Height (in) 6 3/8
Product Height (mm) 161.9 Product Width (in) 3 4/5
Product Width (mm) 96.8 Unit Carton Height (in) 2.875
Unit Carton Length (in) 6.375 Unit Carton Weight (lb) 0.9
Unit Carton Width (in) 3.875
