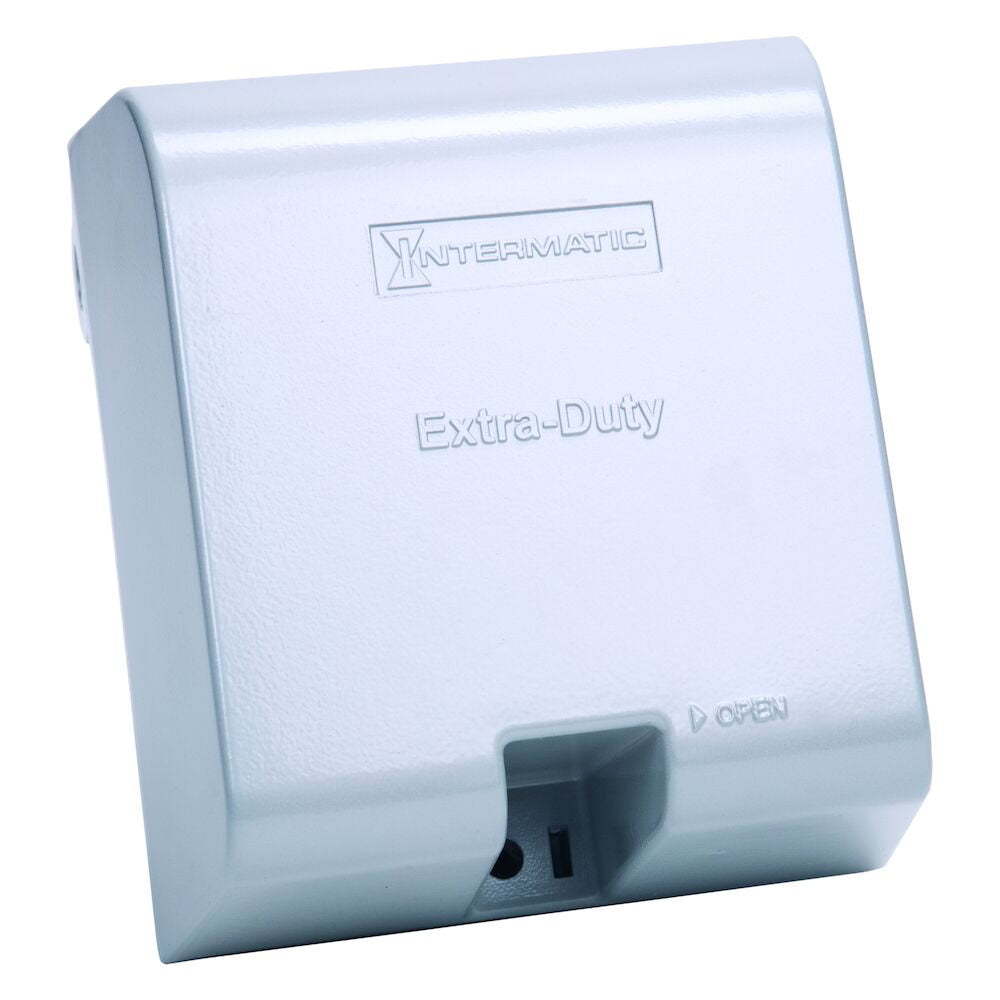

Intermatic - WP1250MXD - Extra-Duty Die-Cast In-Use Weatherproof Cover, Double-Gang, Vrt, 4.625" Gray

IntermaticSKU: WP1250MXD

Sale price $24.84
Sold out


Spec Sheet  Install Manual

Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.


  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
  • 1?8" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4" (6 mm) dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
  • Warranty: 1-year limited


  • Engine Block Heaters
  • Receptacle Protection
  • Walk-in Refrigeration Cooler/Freezer


Box Type Double Color Gray
Is Extra-Duty Rated Yes Enclosure Type Outdoor type 3R metal
Hinge Direction Vertical Warranty Period 1-Year limited
Accepted Cord Size Max 2x12 AWG Cover Gasket 3mm
Has Reinforced Hinge Pin Yes Insert Types Included WP217
Material Die-Cast Aluminum Trade Size in Other
Weatherproof Cover Material Die-Cast Aluminum Product Depth (in) 4 5/8
Product Depth (mm) 117 Product Height (in) 6 3/8
Product Height (mm) 161.9 Product Width (in) 5 5/8
Product Width (mm) 142.9 Unit Carton Height (in) 4.75
Unit Carton Length (in) 6.312 Unit Carton Weight (lb) 1.65
Unit Carton Width (in) 5.75
