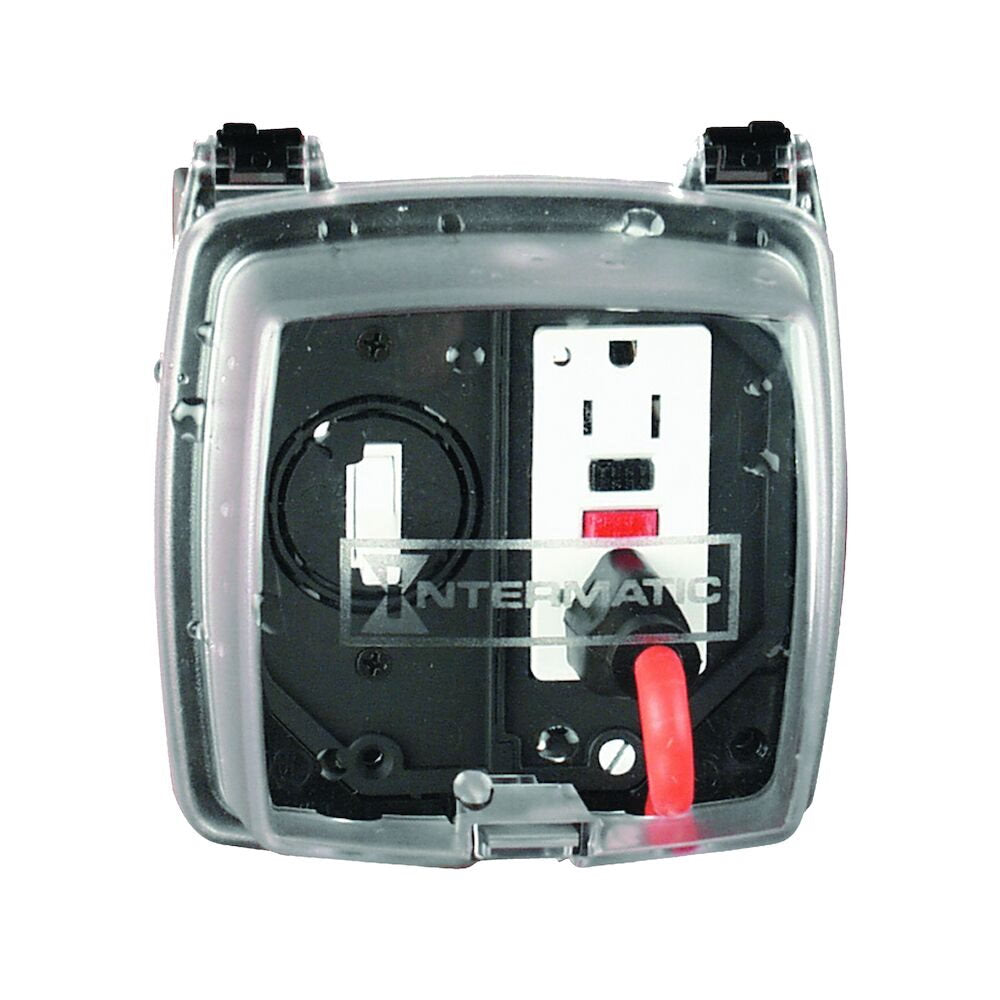

Intermatic - WP1220C - Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 2.25" Clear

IntermaticSKU: WP1220C

Price:
Sale price $11.44
Stock:
Sold out

Description

Spec Sheet  Install Manual

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8" (3 mm) thick neoprene gasket with slits for mounting screws
  • Six inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1250 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited

Applications:

  • Receptacle Protection

Specifications:

Box Type Double Color Clear
Is Extra-Duty Rated No Enclosure Type Outdoor type 3R plastic
Hinge Direction Vertical Warranty Period 1-Year limited
Accepted Cord Size Max 1x12 AWG, 2x14 AWG Basic Delivery Free to Customer Yes
Basic Delivery Free to Installer Yes Cover Gasket 3mm
Insert Types Included WP217 Material UV Stabilized Polycarbonate
SO Customer Ship Surcharge 0.00 SO Installer Ship Surcharge 0.00
SO Store Ship Surcharge 0.00 Ship to Customer Delivery Option 99 - Manually Assign
Ship to Installer Delivery Option 99 - Manually Assign Ship to Store Delivery Option 99 - Manually Assign
Trade Size in 1/8 Weatherproof Cover Material UV Stabilized Plastic
Product Depth (in) 2 1/4 Product Depth (mm) 57
Product Height (in) 5 1/2 Product Height (mm) 139.7
Product Width (in) 5 Product Width (mm) 127
Unit Carton Height (in) 3.001 Unit Carton Length (in) 5.501
Unit Carton Weight (lb) 0.444 Unit Carton Width (in) 5.501
