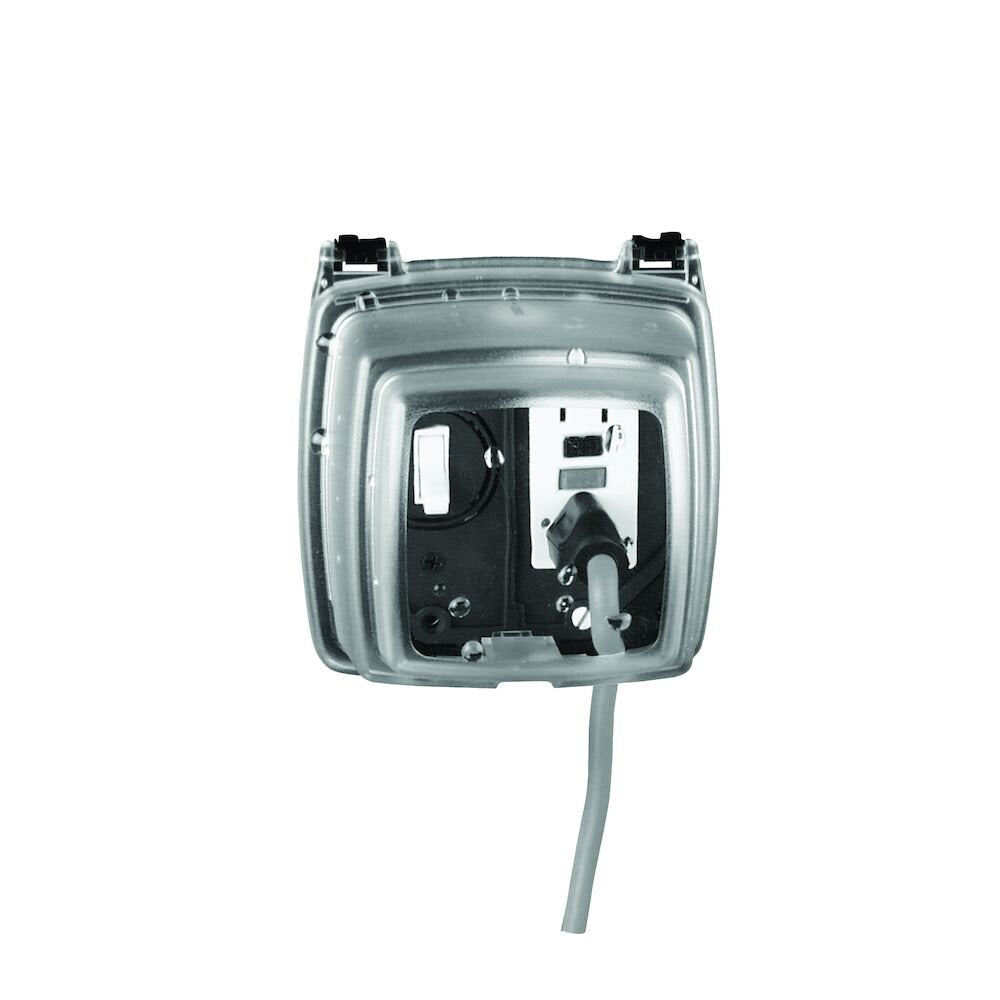

Intermatic - WP1150C - Plastic In-Use Weatherproof Cover, Single-Gang, Hrz, 4.75" Clear

IntermaticSKU: WP1150C

Sale price $14.08
Sold out


Spec Sheet  Install Manual

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.


  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Warranty: 1-year limited


  • Receptacle Protection


Box Type Single Color Clear
Is Extra-Duty Rated No Enclosure Type Outdoor type 3R plastic
Hinge Direction Horizontal Warranty Period 1-Year limited
Accepted Cord Size Max 1x12 AWG, 2x14 AWG Cover Gasket 3mm
Insert Types Included WP17 Material UV Stabilized Polycarbonate
Weatherproof Cover Material UV Stabilized Plastic Product Depth (in) 4 3/4
Product Depth (mm) 121 Product Height (in) 5 3/8
Product Height (mm) 136.5 Product Width (in) 3 1/2
Product Width (mm) 88.9 Unit Carton Height (in) 5.001
Unit Carton Length (in) 6.251 Unit Carton Weight (lb) 0.444
Unit Carton Width (in) 4.501
