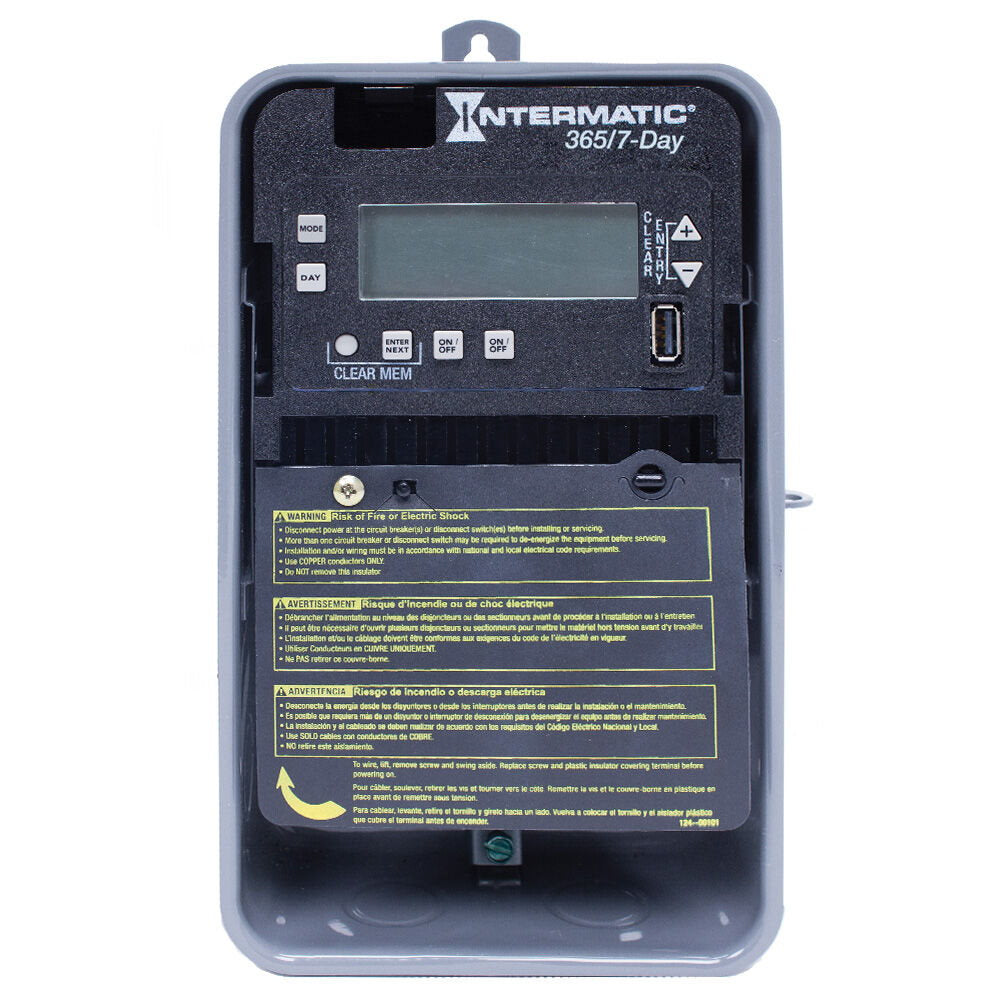

Intermatic - WH2725AT - Pre-Programmed 7-Day Water Heater Timer

IntermaticSKU: WH2725AT

Price:
Sale price $144.20
Stock:
Sold out

Description

Install Manual

The WH2725AT pre-programmed 7-day water heater timer features independent 7-day programming for convenient flexibility when load switching differs.

Features:

  • Program can be repeated on a weekly basis
  • 240 VAC, 60 Hz
  • Lockout feature ensures city code cannot be modified
  • To-the-minute programming for accurate load control and reduced energy costs
  • Relays with Zero-crossing technology to extend the life of the control
  • Automatic Daylight Saving Time (DST) ON/OFF adjustment
  • Temporary override for 1-hour operation
  • 100-hour supercapacitor eliminates battery dependency

Applications:

  • Agriculture Feeders
  • Greenhouse Misting Control
  • Water Heater Control

Specifications:

Backup Type Supercapacitor Input Voltage Range(s) 240 VAC, 60 Hz
Maximum ON/OFF Operations 16 Operation Mode 7-day
Switch Type DPST Enclosure Type Outdoor type 3R metal
Minimum ON/OFF Times 1 min Operation Features Daylight Saving Time, Holiday
Maximum ON/OFF Times Indefinite Maximum Power Consumption (W) 5 W
Wiring Option Terminals ON/OFF Operations 16
Backup Protection Time 100 Hour Resistive (NO) 30 A, 240 VAC, 60 Hz
Warranty Period 2-Year limited Application Compatibilities LED
Backup Restoration Time 30 Minutes Inductive Load Ratings NO Ranges 30 A, 240 VAC, 60 Hz
Resistive (NO) Range(s) 30 A, 240 VAC, 60 Hz Voltage Selection Type Auto Voltage
Wire Size Max #8 AWG Wire Size Min #14 AWG
Operating Temperature Max (°C) 40 Operating Temperature Max (°F) 104
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.625 Product Depth (mm) 92.1
Product Height (in) 10.125 Product Height (mm) 257.2
Product Width (in) 6.5 Product Width (mm) 165.1
Unit Carton Height (in) 10.063 Unit Carton Length (in) 6.5
Unit Carton Weight (lb) 3.3 Unit Carton Width (in) 3.625
