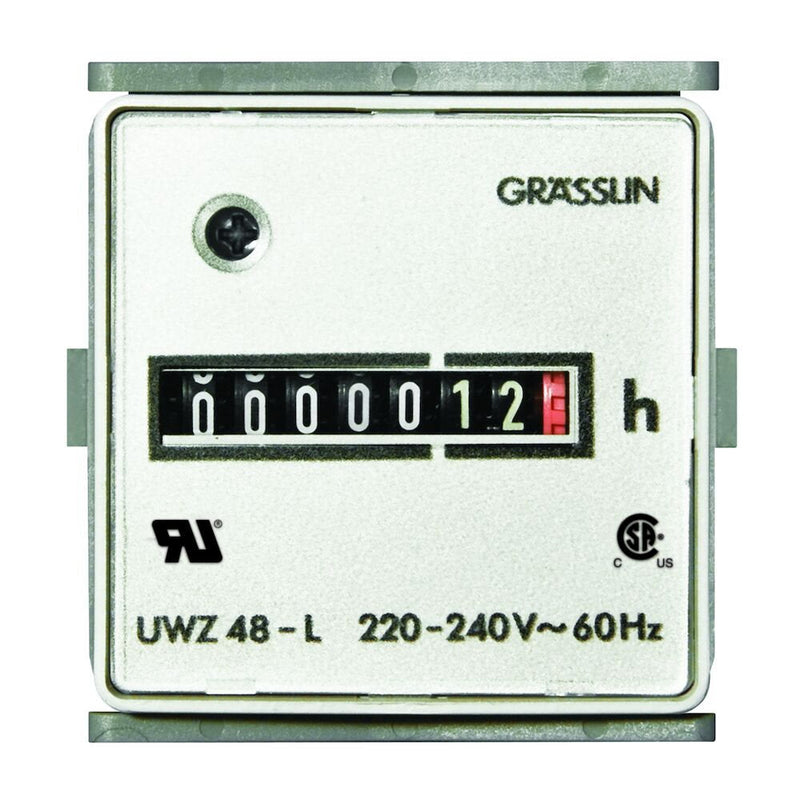

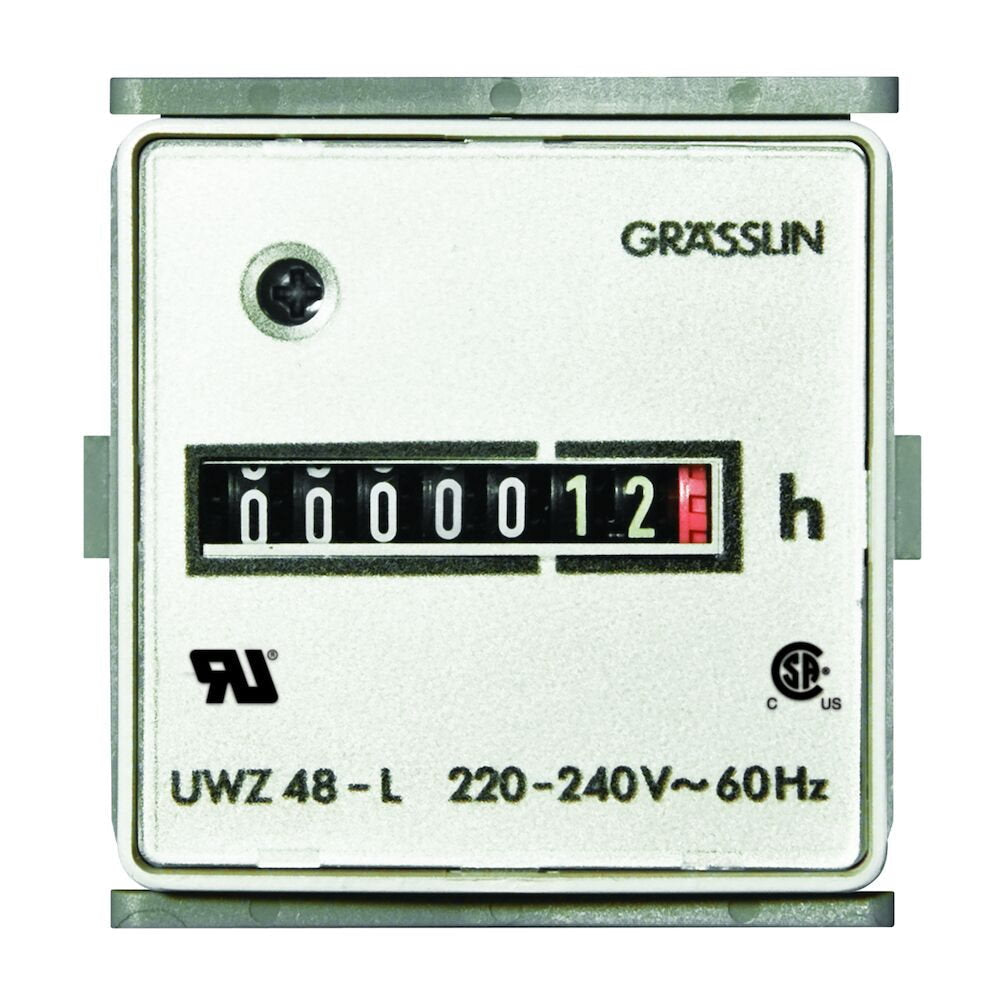

Intermatic - UWZ48E-24U - AC Hour Meter

IntermaticSKU: UWZ48E-24U

Price:
Sale price $68.23
Stock:
Sold out

Description

Spec Sheet

Flush mounted with bracket, the UWZ48E unit fits into a 1.79" x 1.79" (45.5 x 45.5 mm) cutout. The thickness of the panel for flush mounting can be up to .35" (9 mm). The unit is secured in position by a plastic slip-on retaining bracket. The unit also fits square or round openings for 72 mm with optional 72 mm bezel.



Applications:

  • Distribution/Control Panel
  • Monitoring

Specifications:

Color Light Gray Input Voltage Range(s) 24 VAC, 60 Hz
Mounting Options Flush Mechanical Movement Synchronous
Warranty Period 1-Year limited Wiring Option 1/4" Spade w/screw clamp
Category Hour MeterWeb Digits Coloring (Hours) White on Black
Digits Coloring (Tenths) Yellow on Black Environmental Rating IP20
Hour Meter Material Plastic RoHS Certification Yes
Operating Temperature Max (°C) 72 Operating Temperature Max (°F) 160
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 1.65 Product Depth (mm) 49
Product Height (in) 2.13 Product Height (mm) 54
Product Width (in) 1.89 Product Width (mm) 48
Unit Carton Height (in) 2.25 Unit Carton Length (in) 3.25
Unit Carton Weight (lb) 0.202 Unit Carton Width (in) 3.25
