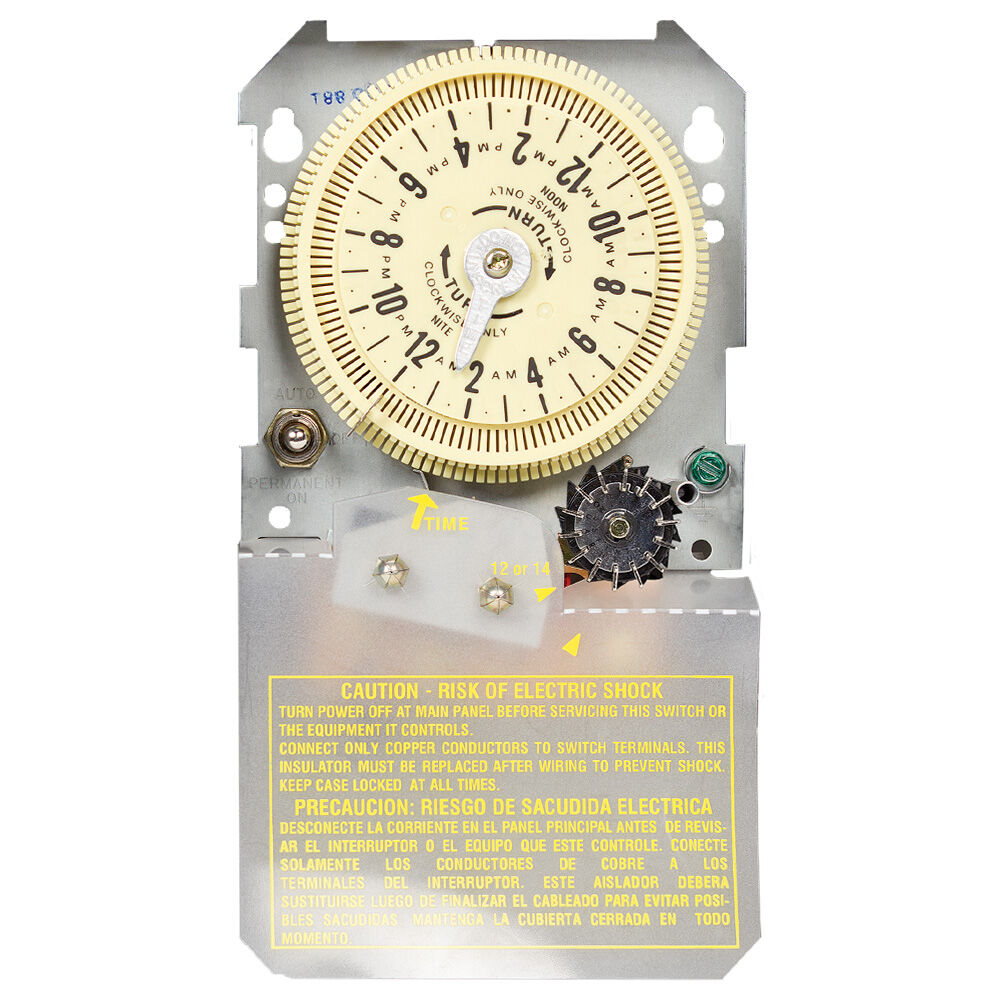

Intermatic T8805M101C Sprinkler/Irrigation Time Switch with 14-Day Skipper - Mechanism Only

IntermaticSKU: T8805M101C

Sale price $96.33
Sold out



These irrigation timers are designed to permit one to 44 "ON" operations every 24 hours and provide watering increments down to 12 minutes or up to 20 hours and 45 minutes to ensure proper watering increments. These models also allow for biweekly scheduling with the convenient 14-day skipper for maximum water conservation and odd/even day compliance.


  • Up to 44 ON/OFF settings per day
  • Water metering increments from 12 minutes to 20 hours and 45 minutes
  • 14-Day skipper enables irrigation to be omitted on selected day(s)
  • Provides for every other day operation
  • ON/OFF/AUTO switch enables shutdown during rainy days and extended watering during dry periods without disturbing the cycle set on dial


  • Agriculture Feeders
  • Greenhouse Misting Control


Input Voltage Range(s) 125 VAC, 60 Hz Maximum ON/OFF Operations 44
Mechanism Type Analog/Mechanical Switch Type DPST
Minimum ON/OFF Times 12 min Maximum ON/OFF Times 20 hours, 45 minutes
Warranty Period 1-Year limited Amps Per Pole 15 A
Clock Motor Voltage 125 VAC, 60 Hz HP 1/2
Load Voltage 125 VAC, 60 Hz Motor (Three-Phase) 1/2 HP, 120 VAC, 60 Hz
Number of Trippers Included 12 Tripper Actuating Time 12 min
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 4 Product Depth (mm) 101.6
Product Height (in) 10 Product Height (mm) 254
Product Width (in) 6.5 Product Width (mm) 165.1
Unit Carton Height (in) 3.63 Unit Carton Length (in) 6.63
Unit Carton Weight (lb) 1.347 Unit Carton Width (in) 5.19
