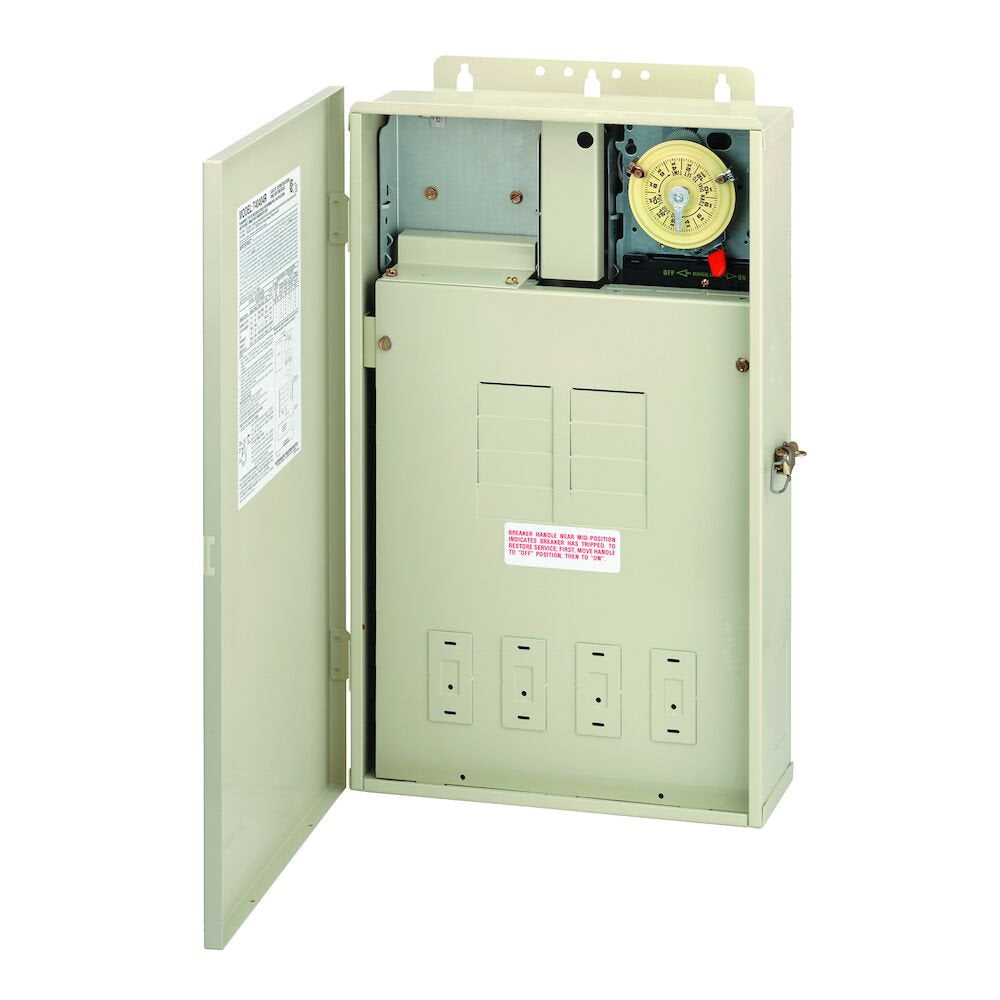

Can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems.
- Eight breaker spaces
- Reduces installation costs
- All-in-one electrical load center eliminates the need for additional service panels
- Accepts any combination of PF1000M Series, P1403ME, P1353ME, P4043ME, P4243ME, T100M Series or RC2000M Series mechanisms
- Fully compatible with all electrical requirements for pool/spa installations
- Load center dead front has four knockouts for switches or GFCIs (Note: T40000R4 has one knockout)
- Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately
|Input Voltage Range(s)||208-277 VAC, 60 Hz||Number Of Circuits||1|
|Resistive||40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz||Switch Type||DPST|
|Enclosure Type||Outdoor type 3R plastic||Maximum Power Consumption (W)||3 W|
|Resistive Load Ratings Ranges||40 A, 120-240 VAC, 60 Hz||Warranty Period||1-Year limited|
|Inductive||40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz||Inductive Load Ratings Ranges||40 A, 120-240 VAC, 60 Hz|
|Knockout Dimensions Back||(4) 1/2" - 3/4", (2) 3/4" - 1"||Knockout Dimensions Bottom||(5) 1/2" - 3/4", (4) 1/2", (2) 3/4" - 1", 1 1/4"|
|Knockout Dimensions Left||(2) 1/2" - 3/4"||Knockout Dimensions Right||(1) 1 3/4" x 2 3/4"|
|Load Center Rating Display||125 A MAX, 120-240 VAC, Single Phase, 60 Hz||Load Center Ratings||125 A, 120 VAC, 60 Hz, 125 A, 208 VAC, 60 Hz, 125 A, 240 VAC, 60 Hz, Single Phase|
|Mechanism Supply Voltage||240 VAC, 60 Hz||Mechanisms||(1) T104M|
|Motor (Three-Phase)||2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz||Pilot Duty (NO)||1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz|
|Pilot Duty Load Ratings Ranges||1000 VA, 120-240 VAC, 60 Hz||Tungsten (NO)||40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz|
|Tungsten Range(s)||40 A, 120-240 VAC, 60 Hz||Operating Temperature Max (°C)||54|
|Operating Temperature Max (°F)||130||Operating Temperature Min (°C)||-40|
|Operating Temperature Min (°F)||-40||Product Depth (in)||4.75|
|Product Depth (mm)||120.7||Product Height (in)||20.875|
|Product Height (mm)||530.2||Product Width (in)||12.875|
|Product Width (mm)||327||Unit Carton Height (in)||6.5|
|Unit Carton Length (in)||22||Unit Carton Weight (lb)||20.358|
|Unit Carton Width (in)||14|
