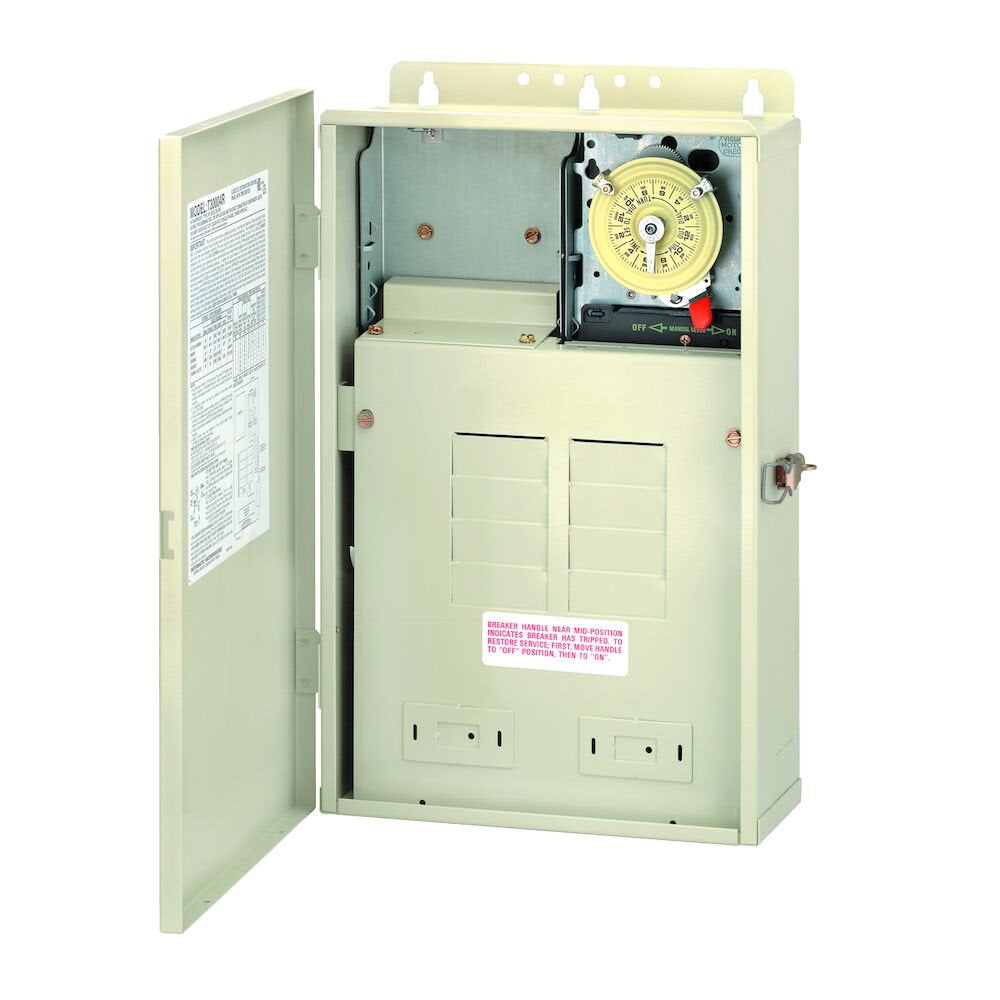

Intermatic - T30004R - 100 A Load Center with T104M Mechanism, 8-Breaker Spaces

IntermaticSKU: T30004R

Price:
Sale price $272.11
Stock:
Sold out

Description

Install Manual

Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.

Features:

  • Eight breaker spaces
  • Reduces installation costs
  • Eliminates the need for additional service panels
  • Fits most of our hard-wired T100 mechanical and PE digital timers
  • Control two-speed pumps with the T30604R
  • Fully compatible with all electrical requirements for pool/spa installations
  • Load center dead front has two knockouts and one on the side for switches or GFCIs
  • Wiring devices may be installed in these load centers with the use of Standoffs, sold separately

Applications:

  • Distribution/Control Panel
  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 208-277 VAC, 60 Hz Number Of Circuits 1
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Switch Type DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Resistive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz Warranty Period 1-Year limited
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz
Knockout Dimensions Back (5) 1/2" - 3/4" Knockout Dimensions Bottom (4) 1/2" - 3/4", (3) 1/2", (2) 3/4" - 1"
Knockout Dimensions Left (1) 3/4" - 1" Knockout Dimensions Right (1) 1 3/4" x 2 3/4"
Load Center Rating Display 100 A, 120-240 VAC, Single Phase, 60 Hz Load Center Ratings 100 A, 120 VAC, 60 Hz, 100 A, 208 VAC, 60 Hz, 100 A, 240 VAC, 60 Hz, Single Phase
Mechanism Supply Voltage 240 VAC, 60 Hz Mechanisms (1) T104M
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-240 VAC, 60 Hz Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 4.75
Product Depth (mm) 120.7 Product Height (in) 16.875
Product Height (mm) 428.6 Product Width (in) 10.875
Product Width (mm) 276.2 Unit Carton Height (in) 5.13
Unit Carton Length (in) 18.5 Unit Carton Weight (lb) 16.366
Unit Carton Width (in) 13.19
