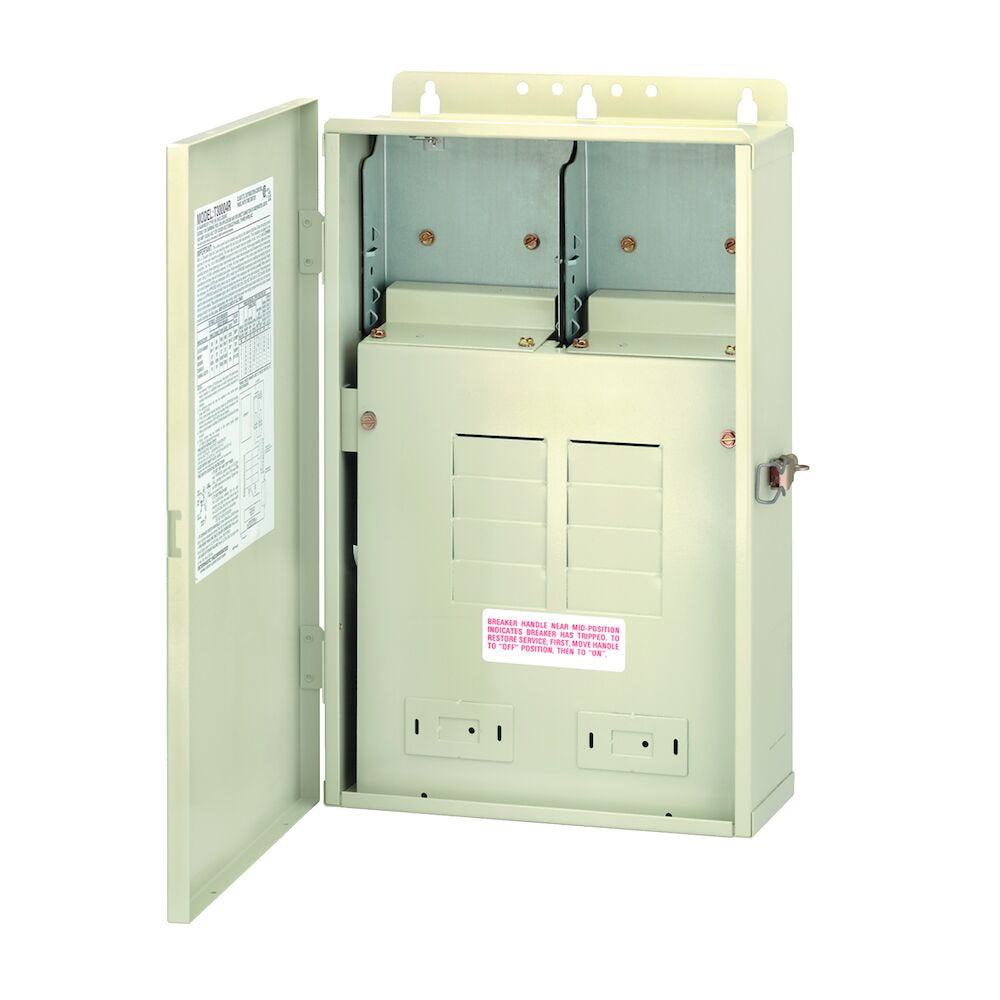

Intermatic - T30000R5 - 100 A Load Center Only, 8-Breaker Spaces

IntermaticSKU: T30000R5

Price:
Sale price $251.05
Stock:
Sold out

Description

Install Manual

Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.

Features:

  • Eight breaker spaces
  • Reduces installation costs
  • Eliminates the need for additional service panels
  • Fits most of our hard-wired T100 mechanical and PE digital timers
  • Control two-speed pumps with the T30604R
  • Fully compatible with all electrical requirements for pool/spa installations
  • Load center dead front has two knockouts and one on the side for switches or GFCIs
  • Wiring devices may be installed in these load centers with the use of Standoffs, sold separately

Applications:

  • Distribution/Control Panel

Specifications:

Warranty Period 1-Year limited Knockout Dimensions Back (5) 1/2" - 3/4"
Knockout Dimensions Bottom (4) 1/2" - 3/4", (3) 1/2", (2) 3/4" - 1" Knockout Dimensions Left (1) 3/4" - 1"
Knockout Dimensions Right (1) 1 3/4" x 2 3/4" Mechanisms Load Center Only
Operating Temperature Max (°C) 54 Operating Temperature Max (°F) 130
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 4.75 Product Depth (mm) 120.7
Product Height (in) 16.875 Product Height (mm) 428.6
Product Width (in) 10.875 Product Width (mm) 276.2
Unit Carton Height (in) 5.13 Unit Carton Length (in) 18.5
Unit Carton Weight (lb) 15.468 Unit Carton Width (in) 13.19
