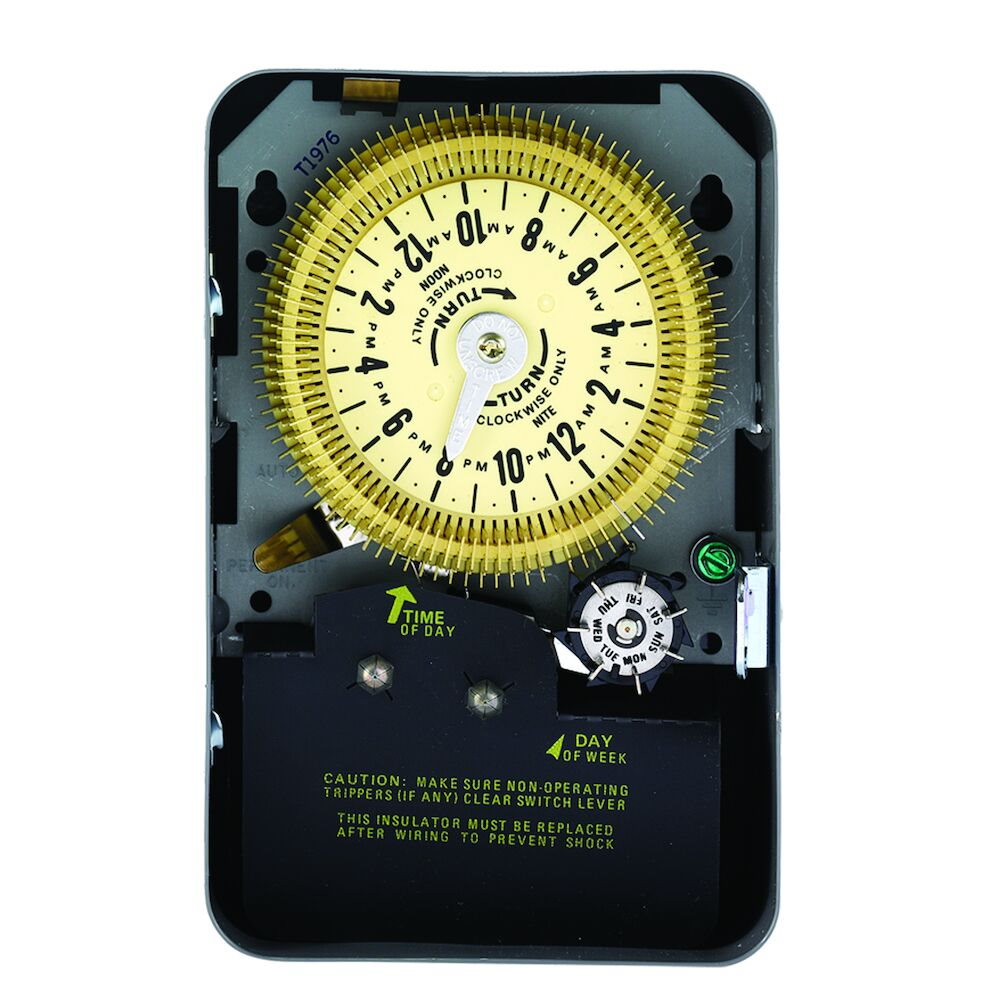

Intermatic T1976 24-Hour Mechanical Time Switch with Skip-a-Day, 208-277 VAC, 60Hz, SPDT, Indoor Metal Enclosure, 15 Minute Interval
This series of mechanical time switches offers more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole, double throw switch.
- Provides up to 96 operations (48 ON/48 OFF) every 24 hours
- Models with skipper wheel allow for operations to be omitted on selected days of the week
- 15-minute intervals
- Captive trippers slide in and out of dial for fast, accurate setting
Indoor Lighting Control
|Input Voltage Range(s)||208-277 VAC, 60 Hz||Maximum ON/OFF Operations||48|
|Number Of Circuits||1||Operation Mode||24 hour|
|Resistive||20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz, 20 A, 480 VAC, 60 Hz||Switch Type||SPDT|
|Enclosure Type||Indoor type 1 metal||Minimum ON/OFF Times||15 min|
|Maximum Power Consumption (W)||3 W||Wiring Option||Terminals|
|Resistive Load Ratings Ranges||20 A, 125-480 VAC, 60 Hz||Warranty Period||1-Year limited|
|Has Manual Override||Yes||Motor (Three-Phase)||1/2 HP, 125 VAC, 60 Hz, 1 HP, 250 VAC, 60 Hz|
|Number of Trippers Included||96||Rating||General Purpose|
|Skipper Wheel||24 hour||Wire Size Max||#12 AWG|
|Wire Size Min||#14 AWG||Operating Temperature Max (°C)||54|
|Operating Temperature Max (°F)||130||Operating Temperature Min (°C)||-40|
|Operating Temperature Min (°F)||-40||Product Depth (in)||3.4375|
|Product Depth (mm)||87.3||Product Height (in)||7.875|
|Product Height (mm)||200||Product Width (in)||5.125|
|Product Width (mm)||130.2||Unit Carton Height (in)||8.25|
|Unit Carton Length (in)||5.5||Unit Carton Weight (lb)||2.744|
|Unit Carton Width (in)||3.5|
