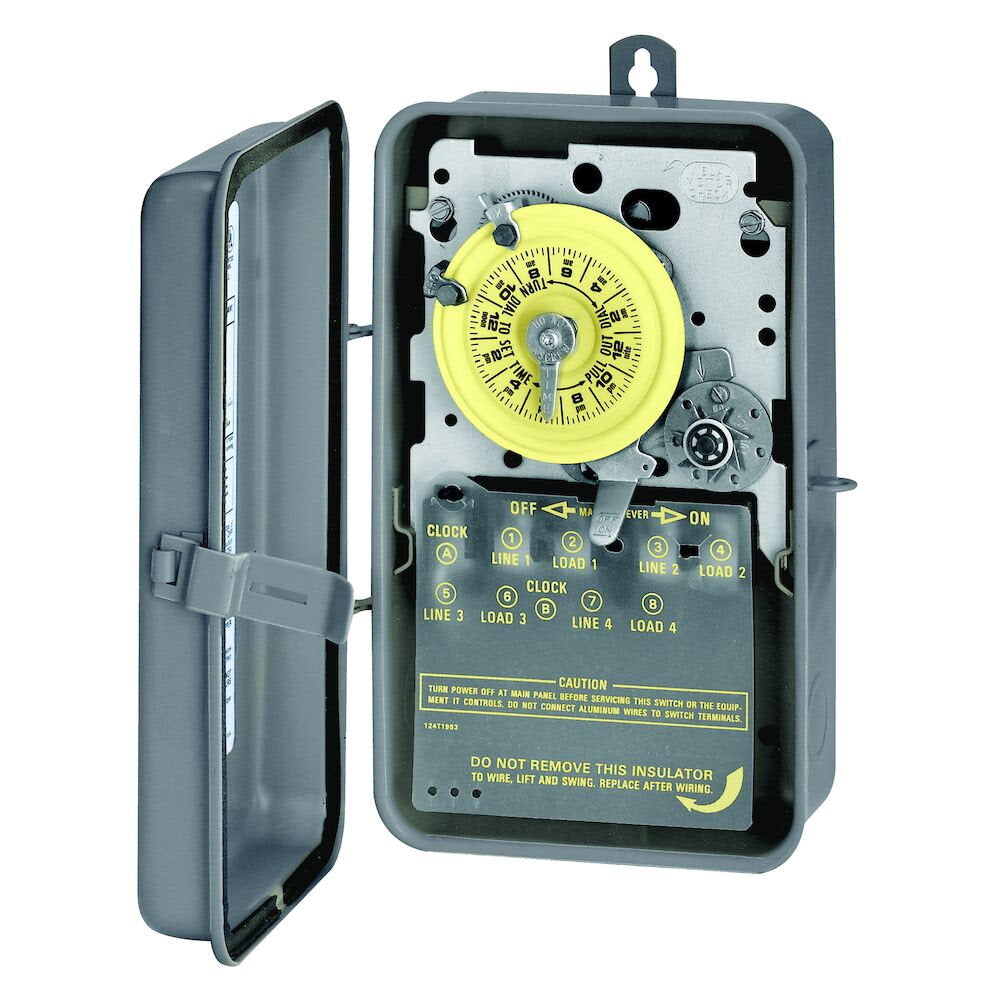

Intermatic - T173R - 24-Hour Mechanical Time Switch with Skip-a-Day, 120 VAC, DPST, Outdoor Metal Enclosure

IntermaticSKU: T173R

Price:
Sale price $197.98
Stock:
Sold out

Description

Install Manual

Intermatic T173R 24-Hour Mechanical Time Switch with Skip-a-Day, 120 VAC, 60Hz, DPST, Outdoor Metal Enclosure, 1 Hour Interval

Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.

Features:

  • Controls loads up to 40 A per pole
  • Direct 24-hour control of most loads
  • Up to 10 ON/OFF operations each day
  • Minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper and three day-skipper screws included

Applications:

  • Indoor Lighting Control
  • Outdoor Lighting Control
  • Timing/Scheduling ON/OFF

Specifications:

Input Voltage Range(s) 120 VAC, 60 Hz Maximum ON/OFF Operations 10
Number Of Circuits 1 Operation Mode 24 hour
Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Switch Type DPST
Electronic Ballast 16 A, 277 VAC, 60 Hz Enclosure Type Outdoor type 3R metal
Minimum ON/OFF Times 1 hour Maximum Power Consumption (W) 3 W
Wiring Option Terminals Resistive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz
Warranty Period 1-Year limited Application Compatibilities HID, LED
Electronic Ballast Load Ratings Ranges 16 A, 277 VAC, 60 Hz Has Manual Override Yes
Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz Inductive Load Ratings Ranges 40 A, 120-277 VAC, 60 Hz
Motor (Three-Phase) 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz Pilot Duty (NO) 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz
Pilot Duty Load Ratings Ranges 1000 VA, 120-277 VAC, 60 Hz Rating Tamper Resistant, Weather Resistant
Skipper Wheel Not Included Timer Type Mechanical
Timing Interval 1 hr Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz
Tungsten Range(s) 40 A, 120-277 VAC, 60 Hz Wire Size Max #8 AWG
Wire Size Min #14 AWG Operating Temperature Max (°C) 54
Operating Temperature Max (°F) 130 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 3.625
Product Depth (mm) 92.1 Product Height (in) 10.125
Product Height (mm) 257.2 Product Width (in) 6.5
Product Width (mm) 165.1 Unit Carton Height (in) 4
Unit Carton Length (in) 11.5 Unit Carton Weight (lb) 3.543
Unit Carton Width (in) 7.06
