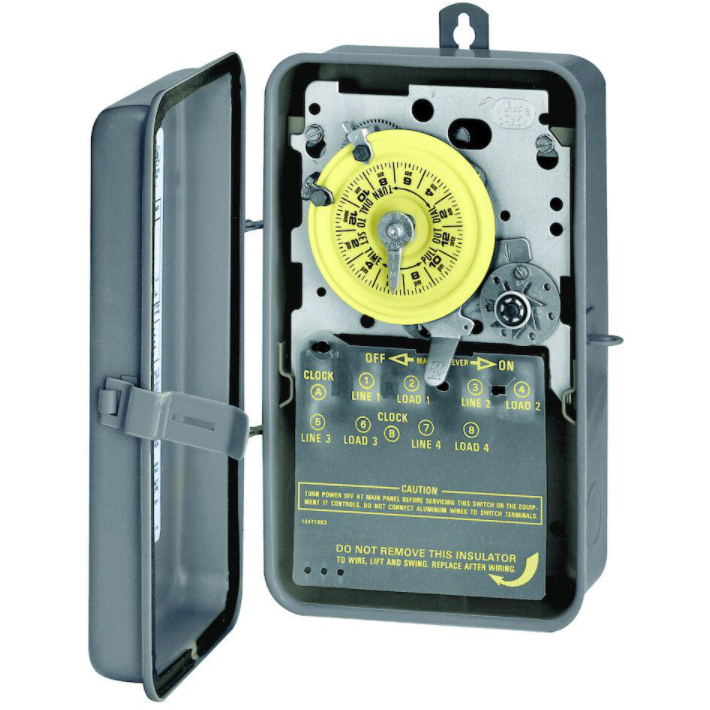

Intermatic T1471BR 24-Hour Mechanical Time Switch with Skip-a-Day, 120 VAC, 60Hz, 4-SPST, Outdoor Metal Enclosure, 1 Hour Interval
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Features:
- Controls loads up to 40 A per pole
- Direct 24-hour control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
Applications:
-
Indoor Lighting Control
-
Outdoor Lighting Control
-
Timing/Scheduling ON/OFF
Specifications:
Backup Type | Spring Wound Carry-over | Input Voltage Range(s) | 120 VAC, 60 Hz |
Maximum ON/OFF Operations | 10 | Number Of Circuits | 1 |
Operation Mode | 24 hour | Resistive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz, 40 A, 480 VAC, 60 Hz |
Switch Type | 4-PST | Electronic Ballast | 16 A, 277 VAC, 60 Hz |
Enclosure Type | Outdoor type 3R metal | Minimum ON/OFF Times | 1 hour |
Maximum Power Consumption (W) | 3 W | Wiring Option | Terminals |
Resistive Load Ratings Ranges | 40 A, 120-480 VAC, 60 Hz | Backup Protection Time | 16 Hours |
Warranty Period | 1-Year limited | Application Compatibilities | HID, LED |
Backup Restoration Time | 1 Hour for Every 2 Hours Without Power | Electronic Ballast Load Ratings Ranges | 16 A, 277 VAC, 60 Hz |
Has Manual Override | Yes | Inductive | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz |
Inductive Load Ratings Ranges | 40 A, 120-277 VAC, 60 Hz | Motor (Single-Phase) | 2 HP, 24 FLA @ 120 VAC, 60 Hz, 5 HP, 28 FLA @ 240 VAC, 60 Hz |
Motor (Three-Phase) | 10 HP, 28 FLA @ 240 VAC, 60 Hz, 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz | Motor Single Phase Ranges | 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz |
Motor Three Phase Ranges | 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz | Pilot Duty (NO) | 1000 VA, 120 VAC, 60 Hz, 1000 VA, 208 VAC, 60 Hz, 1000 VA, 240 VAC, 60 Hz, 1000 VA, 277 VAC, 60 Hz |
Pilot Duty Load Ratings Ranges | 1000 VA, 120-277 VAC, 60 Hz | Rating | Tamper Resistant, Weather Resistant |
Skipper Wheel | Not Included | Timer Type | Mechanical |
Tungsten (NO) | 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz, 40 A, 277 VAC, 60 Hz | Tungsten Range(s) | 40 A, 120-277 VAC, 60 Hz |
Wire Size Max | #8 AWG | Wire Size Min | #14 AWG |
Operating Temperature Max (°C) | 54 | Operating Temperature Max (°F) | 130 |
Operating Temperature Min (°C) | -40 | Operating Temperature Min (°F) | -40 |
Product Depth (in) | 3.625 | Product Depth (mm) | 92.1 |
Product Height (in) | 10.125 | Product Height (mm) | 257.2 |
Product Width (in) | 6.5 | Product Width (mm) | 165.1 |
Unit Carton Height (in) | 10.06 | Unit Carton Length (in) | 6.56 |
Unit Carton Weight (lb) | 4.651 | Unit Carton Width (in) | 4 |
