Intermatic - PF1202T - Freeze Protection Control Center with 2 Timers and Thermostat for 240V

IntermaticSKU: PF1202T

Price:
Sale price $536.08
Stock:
Sold out

Description

Install Manual

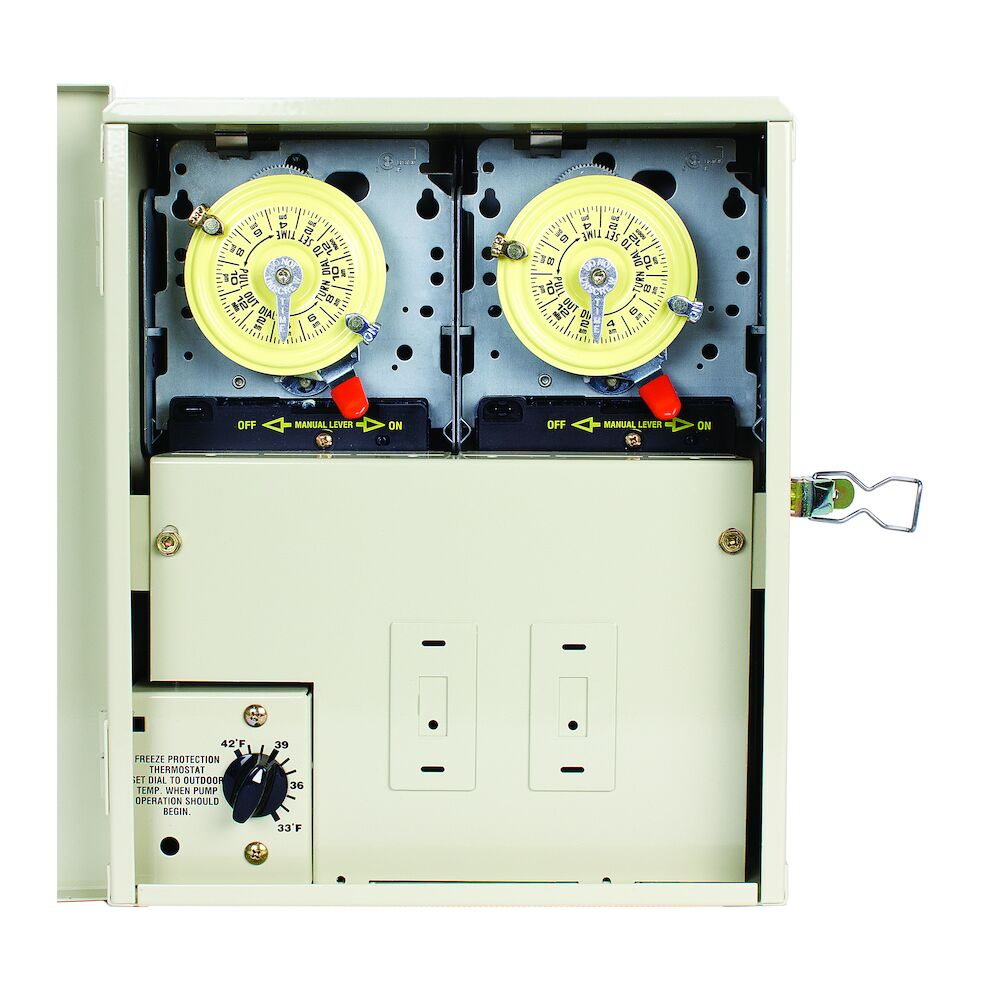

Intermatic PF1202T Freeze Protection Control Center with 2 Timers and Thermostat for 240V, Type 3R Metal Enclosure

Intermatic PF1202T Freeze Protection Control Center with 2 Timers and Thermostat for 240V Cleaner Applications, Type 3R Metal Enclosure

Protects pool/spa equipment against freeze damage.

Features:

  • GFCI and switch mounting capabilities
  • Turns pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat
  • Heavy-duty Type 3R metal indoor/outdoor enclosure

Applications:

  • Protection
  • Pump Control

Specifications:

Input Voltage Range(s) 240 VAC, 60 Hz Number Of Circuits 2
Resistive 17 A, 240 VAC, 60 Hz Switch Type DPST
Enclosure Type Outdoor type 3R plastic Maximum Power Consumption (W) 3 W
Warranty Period 1-Year limited Motor (Three-Phase) 3 HP, 240 VAC, 60 Hz
Power Center Ratings Display 120/240 VAC, 60 Hz, Single-Phase Product Depth (in) 4.25
Product Depth (mm) 108 Product Height (in) 12
Product Height (mm) 304.8 Product Width (in) 12.875
Product Width (mm) 327 Unit Carton Height (in) 5.63
Unit Carton Length (in) 13.81 Unit Carton Weight (lb) 12.374
Unit Carton Width (in) 12.06
