Intermatic - PF1103T - Freeze Protection Timer with Thermostat for 120/240V Applications

IntermaticSKU: PF1103T

Price:
Sale price $292.93
Stock:
Sold out

Description

Install Manual

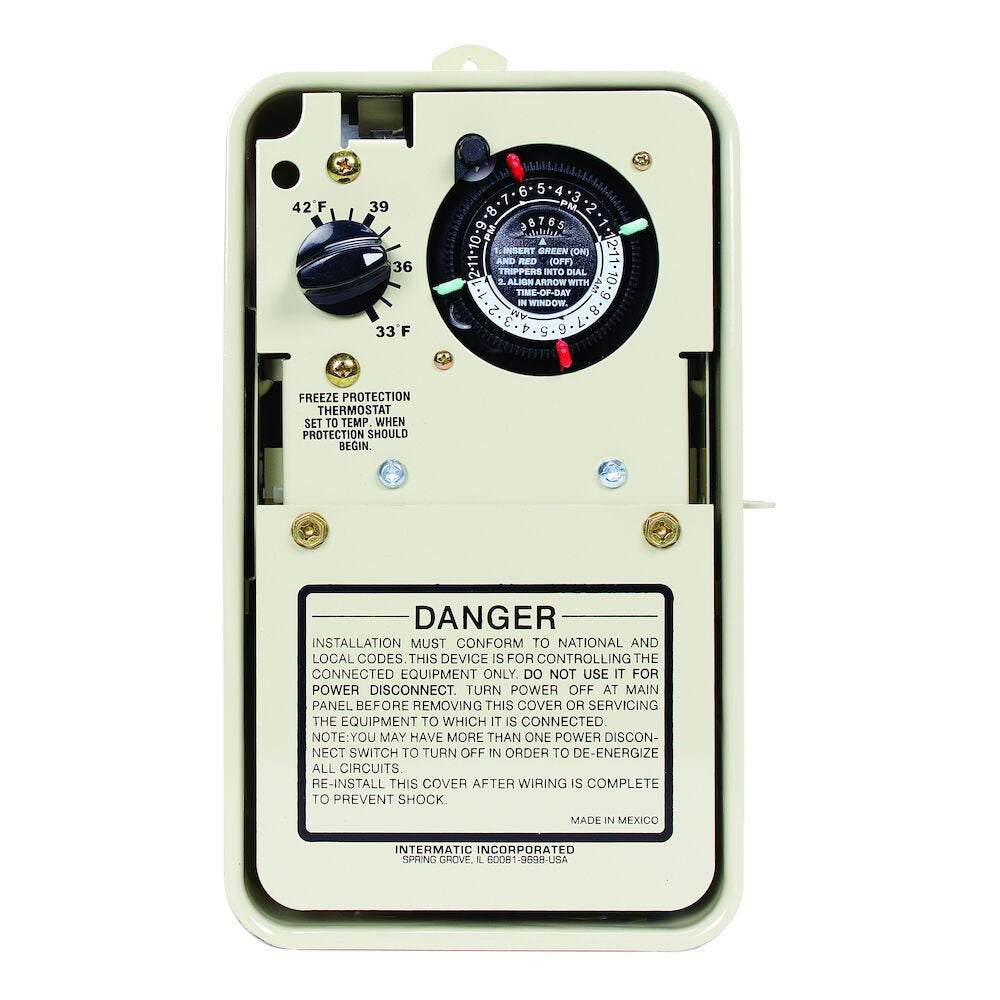

Intermatic PF1103T Freeze Protection Timer with Thermostat for 120/240V Applications, Type 3R Metal Enclosure

Protects pool/spa equipment against freeze damage. Turns pump and heater on when the outdoor temperature drops. Integrated adjustable thermostat.

Features:

  • Turn pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat
  • Models with or without mechanical timer mechanism
  • Heavy-duty metallic rainproof enclosure
  • For use with pool and spa, pond, fountain or marina type applications

Applications:

  • Protection
  • Pump Control

Specifications:

Input Voltage Range(s) 120/240 VAC, 60 Hz Enclosure Type Outdoor type 3R metal
Warranty Period 1-Year limited Knockout Dimensions Back (4) 1/2" - 3/4", (1) 1/2" - 3/4"
Knockout Dimensions Bottom (2) 1/2" - 3/4" Knockout Dimensions Left (1) 1/2" - 3/4"
Knockout Dimensions Right (1) 1/2" - 3/4" Motor (Three-Phase) 1 1/2 HP @ 120 VAC, 3 HP @ 240 VAC, 60 Hz
Outdoor Living Product Type Pool Controls Pool Type Above Ground, In Ground
Product Depth (in) 3.625 Product Depth (mm) 92.1
Product Height (in) 9.625 Product Height (mm) 244.5
Product Width (in) 5.75 Product Width (mm) 146.1
Unit Carton Height (in) 4 Unit Carton Length (in) 11.5
Unit Carton Weight (lb) 4.091 Unit Carton Width (in) 7.06
