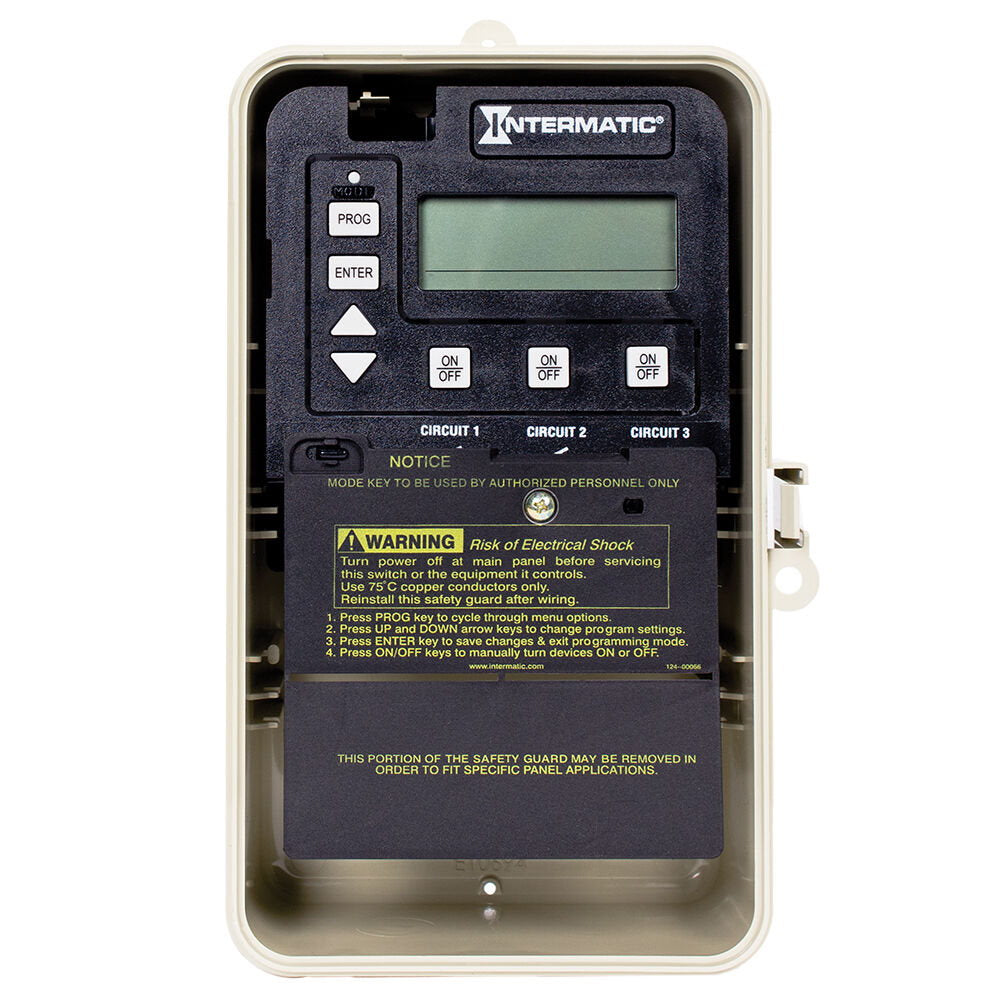

This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule. Controls single- and two-speed pumps and cleaner/booster pumps. Three ON/OFF events per circuit per day.
- Controls single- and two-speed pumps and cleaner/booster pumps
- Three ON/OFF events per circuit per day
- Seven preprogrammed modes
- Freeze and heater protection
- LCD readout
- Multivoltage input and output
- Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system
Heater Thermostat Control
|Input Voltage Range(s)||120/240 VAC, 50/60 Hz||Maximum ON/OFF Operations||3|
|Number Of Circuits||3||Operation Mode||24 hour|
|Resistive||17 A, 120 VAC, 50 Hz, 17 A, 120 VAC, 60 Hz, 17 A, 240 VAC, 50 Hz, 17 A, 240 VAC, 60 Hz||Switch Type||3-SPST|
|Enclosure Type||Outdoor type 3R plastic||Resistive Load Ratings Ranges||17 A, 120/240 VAC, 50/60 Hz|
|Warranty Period||1-Year limited||Motor (Three-Phase)||17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz|
|Motor Three Phase Ranges||80 LRA @ 120/240 VAC, 50/60 Hz; 17 FLA @ 120/240 VAC, 50/60 Hz||Tungsten (NO)||5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 240 VAC, 50 Hz, 5 A, 240 VAC, 60 Hz|
|Tungsten Range(s)||5 A, 120/240 VAC, 50/60 Hz||Voltage Selection Type||Multi Voltage|
|Product Depth (in)||3.625||Product Depth (mm)||92|
|Product Height (in)||9.375||Product Height (mm)||238|
|Product Width (in)||5.5||Product Width (mm)||140|
|Unit Carton Height (in)||5.501||Unit Carton Length (in)||13.751|
|Unit Carton Weight (lb)||2.744||Unit Carton Width (in)||12.001|
