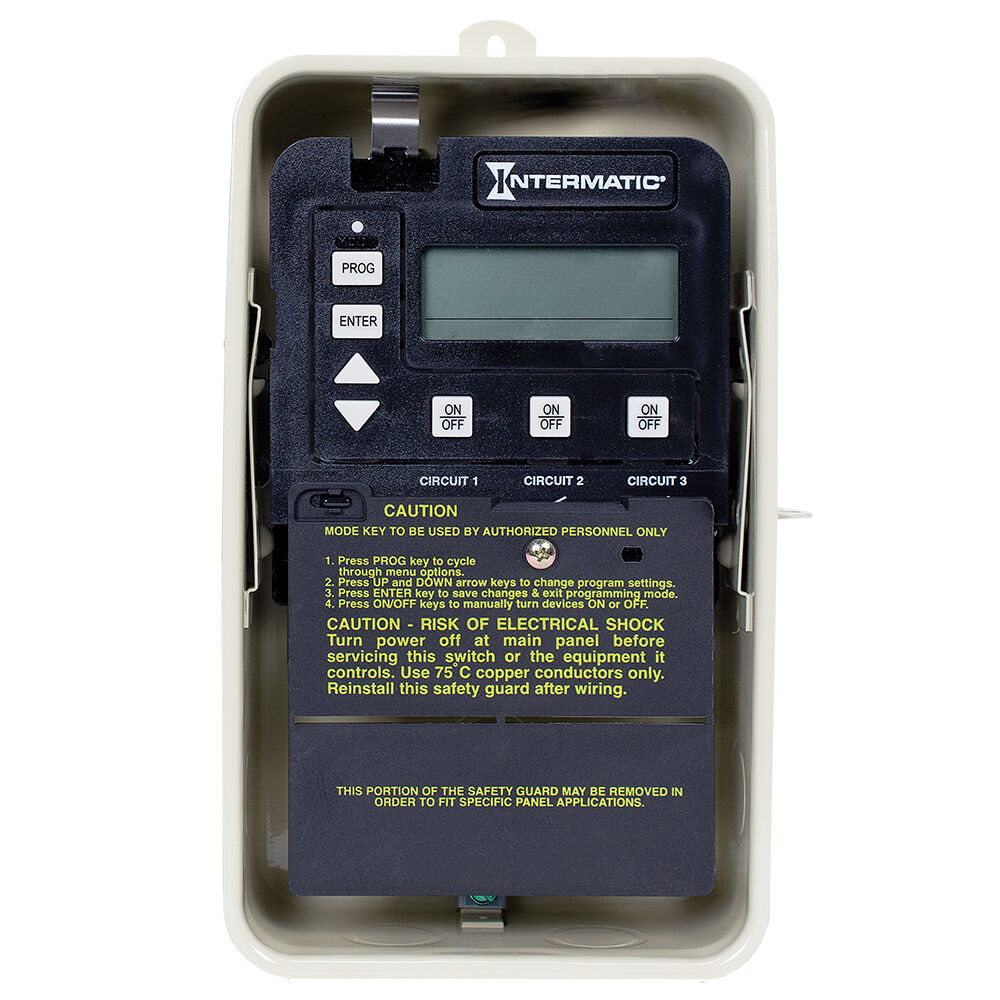

Intermatic - PE153F - 24-Hour Electronic Time Control, 3-Circuit, Freeze Protection Probe, Type 3R Metal Enclosure

IntermaticSKU: PE153F

Price:
Sale price $470.83
Stock:
Sold out

Description

Install Manual

This multipurpose 24-hour control is capable of automatically switching loads according to a preset daily schedule. Controls single- and two-speed pumps and cleaner/booster pumps. Three ON/OFF events per circuit per day.

Features:

  • Controls single- and two-speed pumps and cleaner/booster pumps
  • Three ON/OFF events per circuit per day
  • Seven preprogrammed modes
  • Freeze and heater protection
  • LCD readout
  • Multivoltage input and output
  • Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system

Applications:

  • Heater Thermostat Control
  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 120/240 VAC, 50/60 Hz Maximum ON/OFF Operations 3
Number Of Circuits 3 Operation Mode 24 hour
Resistive 17 A, 120 VAC, 50 Hz, 17 A, 120 VAC, 60 Hz, 17 A, 240 VAC, 50 Hz, 17 A, 240 VAC, 60 Hz Switch Type 3-SPST
Enclosure Type Outdoor type 3R metal Resistive Load Ratings Ranges 17 A, 120/240 VAC, 50/60 Hz
Warranty Period 1-Year limited Motor (Three-Phase) 17 FLA @ 120 VAC, 50 Hz, 17 FLA @ 120 VAC, 60 Hz, 17 FLA @ 240 VAC, 50 Hz, 17 FLA @ 240 VAC, 60 Hz, 80 LRA @ 120 VAC, 50 Hz, 80 LRA @ 120 VAC, 60 Hz, 80 LRA @ 240 VAC, 50 Hz, 80 LRA @ 240 VAC, 60 Hz
Motor Three Phase Ranges 80 LRA @ 120/240 VAC, 50/60 Hz; 17 FLA @ 120/240 VAC, 50/60 Hz Tungsten (NO) 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 240 VAC, 50 Hz, 5 A, 240 VAC, 60 Hz
Tungsten Range(s) 5 A, 120/240 VAC, 50/60 Hz Voltage Selection Type Multi Voltage
Product Depth (in) 3.625 Product Depth (mm) 92
Product Height (in) 9.375 Product Height (mm) 238
Product Width (in) 5.5 Product Width (mm) 140
Unit Carton Height (in) 4.253 Unit Carton Length (in) 11.623
Unit Carton Weight (lb) 4.151 Unit Carton Width (in) 7.253
