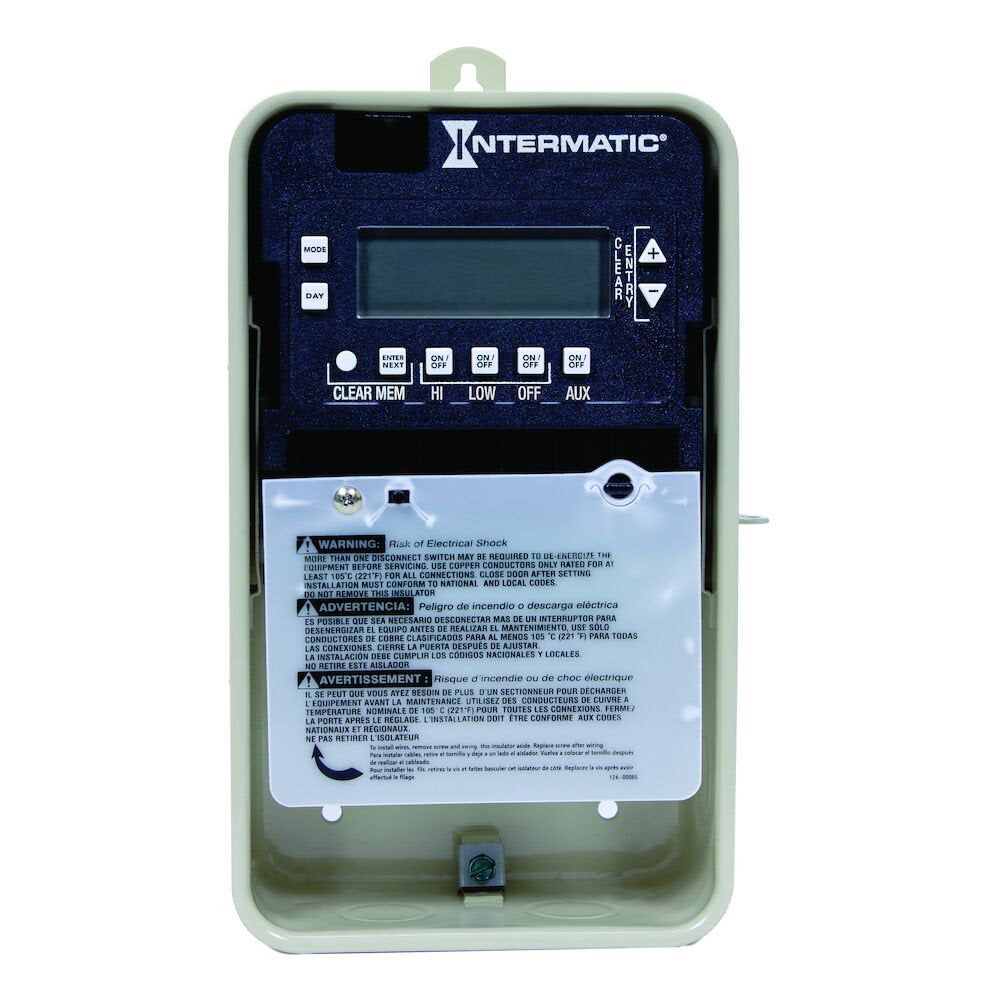

Intermatic PE103 Electronic Pump Motor Controller with Seasonal Adjustment, 4-Circuit, Type 3R Metal Enclosure

IntermaticSKU: PE103

Price:
Sale price $226.87
Stock:
Sold out

Description

Instructions

Control single- and two-speed pumps and auxiliary equipment with this 3-circuit programmable device. The seasonal adjustment feature can be programmed to automatically adjust filter pump ON/OFF schedules according to the season.

Features:

  • Saves up to 40% in monthly utility bills compared to standard timers
  • Meets most rebate incentives
  • Enables separate daily schedules
  • Easy-to-follow on-screen setup for programming
  • Autovoltage adjust
  • Efficient low-speed operation for all seasons
  • User programmable high and low-speed events
  • 100+ hour supercapacitor memory retention
  • Available with Type 3R indoor/outdoor lockable metal enclosure

Applications:

  • Motor Control
  • Pump Control

Specifications:

Backup Type Supercapacitor Input Voltage Range(s) 120-277 VAC, 50/60 Hz
Maximum ON/OFF Operations 3 Number Of Circuits 3
Resistive 120-277 VAC, 20 A @ 28 VDC, 20 A, 28 VDC, 30 A, 24 VAC, 50 Hz, 30 A, 24 VAC, 60 Hz Switch Type 4-SPST
Enclosure Type Outdoor type 3R metal Minimum ON/OFF Times 1 min
Maximum ON/OFF Times 23 hours, 59 minutes Maximum Power Consumption (W) 7 W
ON/OFF Operations 3 Resistive Load Ratings Ranges 30 A @ 24 VAC, 120-277 VAC, 50/60 Hz; 20 A @ 28 VDC
Warranty Period 1-Year limited Daylight Savings Adjustment Automatic
Inductive 120-277 VAC, 30 A @ 24 VAC, 50 Hz, 30 A @ 24 VAC, 60 Hz Inductive Load Ratings Ranges 30 A @ 24 VAC, 120-277 VAC, 50/60 Hz
Motor (Three-Phase) 16 FLA, 96 LRA @ 120 VAC, 50 Hz, 16 FLA, 96 LRA @ 120 VAC, 60 Hz, 17 FLA, 80 LRA @ 240 VAC, 50 Hz, 17 FLA, 80 LRA @ 240 VAC, 60 Hz Motor Three Phase Ranges 16 FLA, 96 LRA @ 120 VAC, 50/60 Hz; 17 FLA, 80 LRA @ 240 VAC, 50/60 Hz
Tungsten (NO) 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 277 VAC, 50 Hz, 5 A, 277 VAC, 60 Hz Tungsten Range(s) 5 A @ 120-277 VAC, 50/60 Hz
Unit Carton Height (in) 4.25 Unit Carton Length (in) 11.5
Unit Carton Weight (lb) 3.802 Unit Carton Width (in) 7.25
