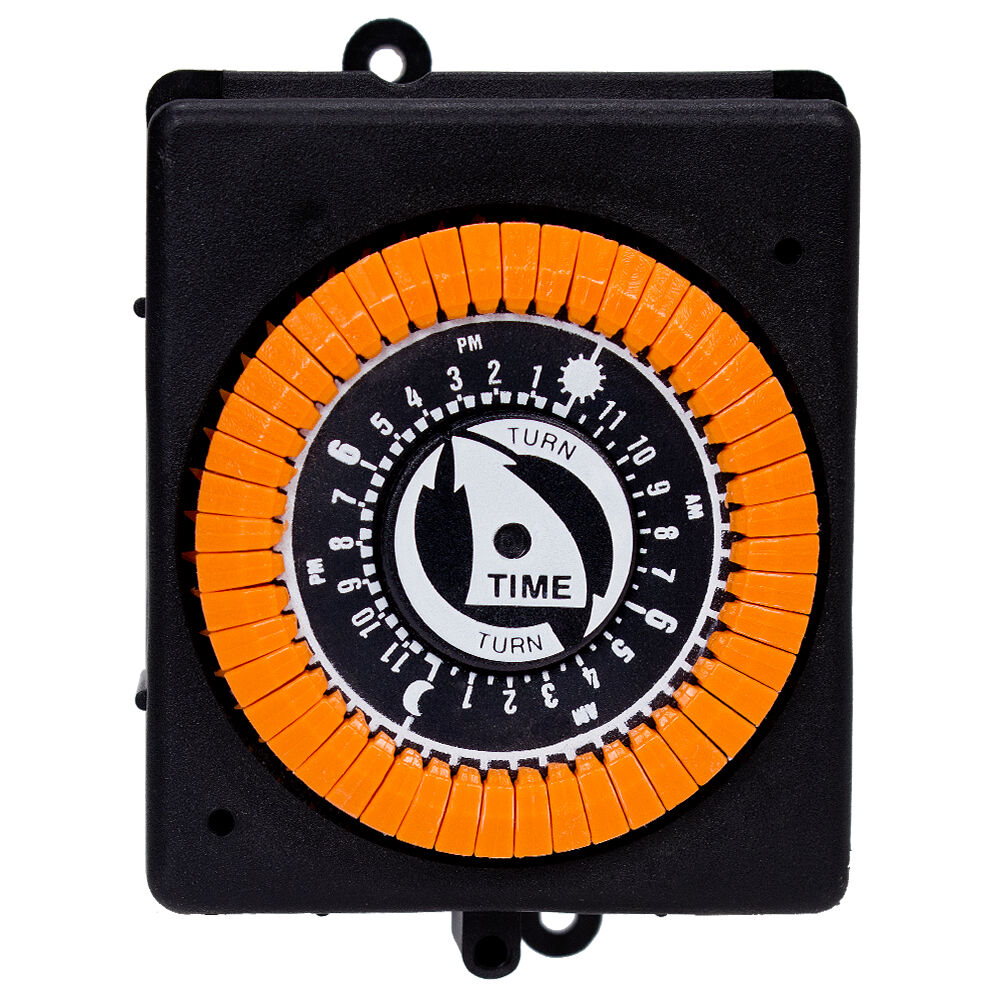

Intermatic - PB914N - 24-Hour 208-277V Mechanical Panel Mount Timer, 48 Trippers

IntermaticSKU: PB914N

Price:
Sale price $43.28
Stock:
Sold out

Description

These timers provide automatic control for pumps, cleaners and other types of loads. Timers have three-way mounting; flush in round opening, raised in rectangular opening or on base. Quick connect terminals for easy installation.

Features:

  • Automated control for pumps, cleaners and other types of loads
  • 3 different mounting methods
  • Quick connect terminals for easy installation
  • 24-hour timing cycle - MIN ON time 1-hr, MAX ON time 23-hr, 30-min intervals
  • 7-day timing cycle - 6 to 162-hr ON time, 3-hr intervals

Applications:

  • Motor Control
  • Pump Control

Specifications:

Input Voltage Range(s) 208-277 VAC, 60 Hz Number Of Circuits 1
Operation Mode 24 hour Resistive 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz
Switch Type SPST Wiring Option (4) 1/4" male (2) for load (2) for independent clock motor, Terminals
Resistive Load Ratings Ranges 20 A, 120-277 VAC, 60 Hz Warranty Period 1-Year limited
Captive Trippers 48 Motor (Three-Phase) 1 HP, 16 FLA @ 120 VAC, 60 Hz, 2 HP, 12 FLA @ 240 VAC, 60 Hz
Pilot Duty (NO) 360 VA, 120 VAC, 60 Hz, 360 VA, 208 VAC, 60 Hz, 360 VA, 240 VAC, 60 Hz, 360 VA, 277 VAC, 60 Hz Pilot Duty Load Ratings Ranges 360 VA, 120-240 VAC, 60 Hz
Tungsten (NO) 1250 W, 125 VAC, 60 Hz Product Depth (in) 1.953
Product Depth (mm) 49.6 Product Height (in) 3.333
Product Height (mm) 84.6 Product Width (in) 2.813
Product Width (mm) 71.4 Unit Carton Height (in) 4
Unit Carton Length (in) 2 Unit Carton Weight (lb) 0.369
Unit Carton Width (in) 2.75
