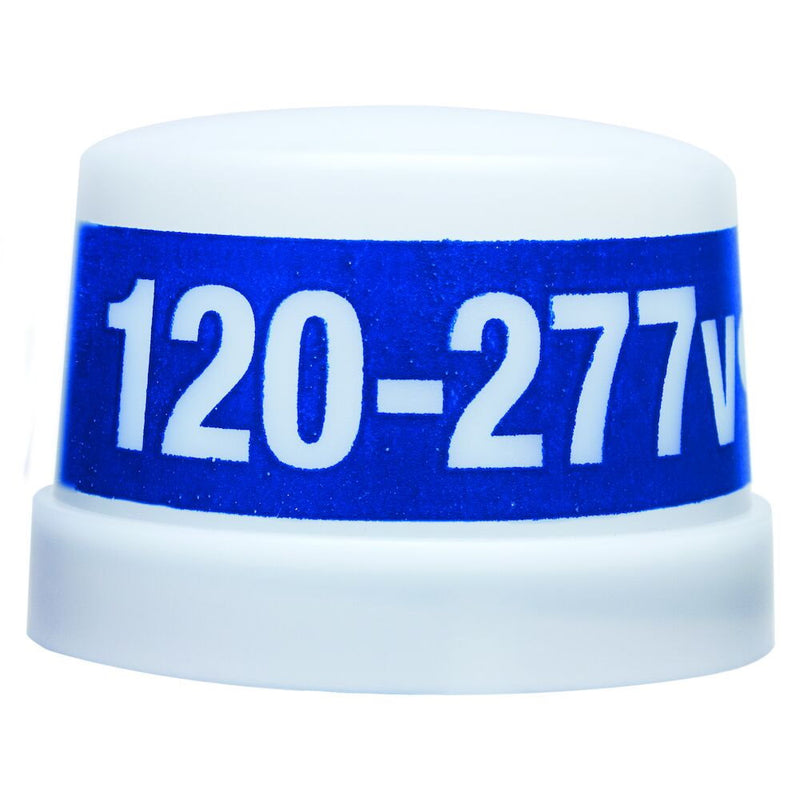

Intermatic - LED4536SC - NightFox™ Specifier Grade Locking Type Electronic Photocontrol, 120-277 V

IntermaticSKU: LED4536SC

Price:
Sale price $26.50
Stock:
Sold out

Description

Spec Sheet  Install Manual

Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.

Features:

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • All components meet 20-year life expectancy
  • Conformal coated PCB
  • Exceeds 15,000 ON/OFF switching cycles
  • Ideal for single or multi-fixture HID and LED installations (up to 2,220 W @ 277 VAC)
  • 510 J MOV surge protection

Applications:

  • Outdoor Lighting Control

Specifications:

Input Voltage Range(s) 120-277 VAC, 50/60 Hz Usage Environments Outdoor
Electronic Ballast 8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz, 8 A, 208 VAC, 50 Hz, 8 A, 208 VAC, 60 Hz, 8 A, 240 VAC, 50 Hz, 8 A, 240 VAC, 60 Hz, 8 A, 277 VAC, 50 Hz, 8 A, 277 VAC, 60 Hz Photocontrol Style Locking type
Surge Protection Technology 510 J MOV Warranty Period 12-Year limited
Application Compatibilities HID, Incandescent, LED Activation Off 2.25 fc
Activation On 1.5 fc Category Locking Type Electronic Photocontrols Web
Cover Color White with Blue Band Electronic Ballast Load Ratings Ranges 8 A, 120-277 VAC, 50/60 Hz
Fail Mode ON Housing Material Polypropylene
Magnetic Ballast (NO) 1800 VA Magnetic Ballast Range(s) 1800 VA
Photo Control Switch Type Relay Photocell Type Silicon Diode
Photocontrol Sensor Location Side Photocontrol Type Electronic
Sensor Time Delay Instant ON; 2 sec to 5 sec OFF Tungsten (NO) 1000 W
Tungsten Range(s) 1000 W Operating Temperature Max (°C) 70
Operating Temperature Max (°F) 158 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Height (in) 2 3/4
Product Height (mm) 69.9 Unit Carton Height (in) 3.375
Unit Carton Length (in) 3.062 Unit Carton Weight (lb) 0.25
Unit Carton Width (in) 3.375
