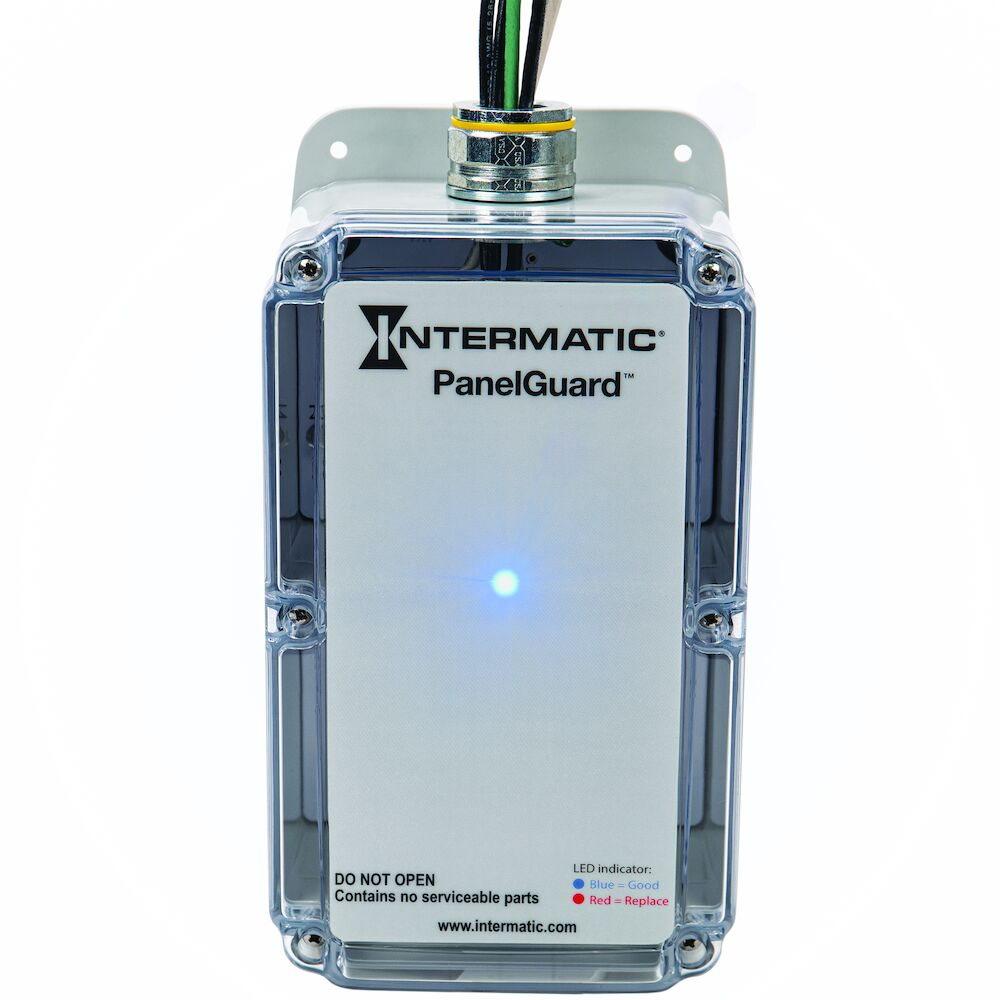

Intermatic L10F13Y1DG2 Surge Protective Device, 4-Mode, 120/208 VAC, 3Ph Y, Type 1, Audible Alarm, Form C Contact, Surge Current Rating 100kA
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
- Type 1 surge protection
- Optional audible alarm and dry relay contacts
- 4 Modes of protection
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- Blue LED protection status indicator, and red LED service indicator
|Color||Gray||Modes of Protection||4|
|Surge Protection Type||1||Enclosure Type||NEMA Type 4X|
|Surge Protection Technology||Individually integrated thermal disconnect technology TPMOV||Voltage||120/208 VAC 3-Phase Wye|
|Filter||No Filter||Warranty Period||5-Year limited|
|Has LED Remote Contact Audible Alarm||Yes||Maximum Surge Current Rating Per Phase||100 kA|
|Conduit Size||3/4"||Diagnostics Indicator||Audible Alarm Indicator, Blue LED Protection Status Indicator, Form C Dry Relay Contacts, Red LED Service Indicator|
|Maximum Continuous Operating Voltage (L-G)||150||Maximum Continuous Operating Voltage (L-L)||300|
|Maximum Continuous Operating Voltage (L-N)||150||Maximum Continuous Operating Voltage (N-G)||150|
|Maximum Surge Current Rating Per Mode||100 kA||Nominal Discharge Current||20 kA|
|RoHS Certification||Yes||Short Circuit Current Rating||200 kA|
|Surge Protection LED Indicator||Yes||Voltage Protection Rating (L-G)||1000|
|Voltage Protection Rating (L-L)||1000||Voltage Protection Rating (L-N)||700|
|Voltage Protection Rating (N-G)||700||Wire Size Max||#10 AWG|
|Operating Temperature Max (°C)||80||Operating Temperature Max (°F)||176|
|Operating Temperature Min (°C)||-40||Operating Temperature Min (°F)||-40|
|Product Depth (in)||3.29||Product Depth (mm)||83.57|
|Product Height (in)||10.59||Product Height (mm)||268.99|
|Product Width (in)||5.25||Product Width (mm)||133.35|
|Unit Carton Height (in)||4.375||Unit Carton Length (in)||12.625|
|Unit Carton Weight (lb)||0.6||Unit Carton Width (in)||6.375|
