Intermatic - L10F13N4DG2 - Surge Protective Device, 4-Mode, 440/480 VAC 3Phase High Leg Delta

IntermaticSKU: L10F13N4DG2

Price:
Sale price $722.74
Stock:
Sold out

Description

Spec Sheet  Install Manual

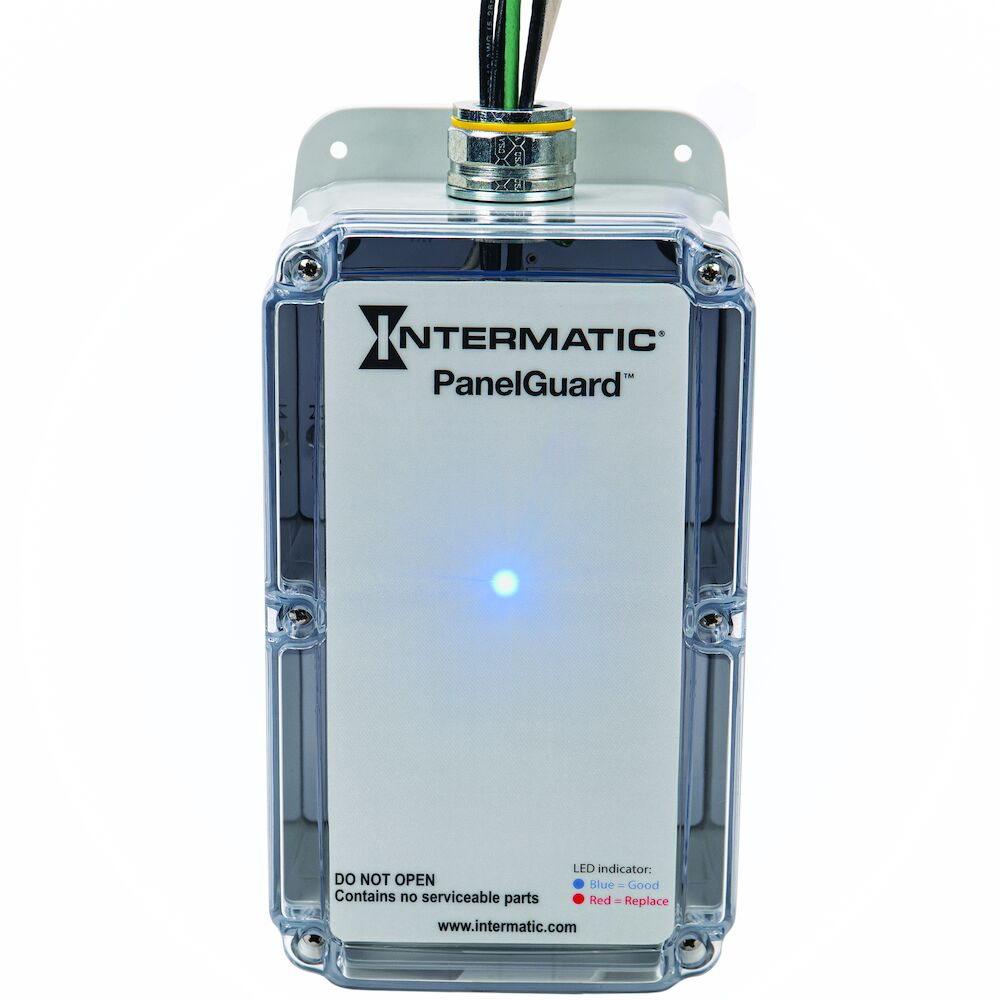

Intermatic L10F13N4DG2 Surge Protective Device, 4-Mode, 440/480 VAC 3Ph High Leg Delta, Type 1

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Features:

  • Type 1 surge protection
  • Optional audible alarm and dry relay contacts
  • 4 Modes of protection
  • NEMA 4X enclosure for indoor or outdoor installation
  • Individually integrated disconnect TPMOV surge protection technology
  • Blue LED protection status indicator, and red LED service indicator

Applications:

  • Distribution Panel
  • Service Entrance

Specifications:

Color Gray Modes of Protection 4
Surge Protection Type 1 Enclosure Type NEMA Type 4X
Surge Protection Technology Individually integrated thermal disconnect technology TPMOV Voltage 440/480 VAC 3-Phase High Leg Delta
Filter No Filter Warranty Period 5-Year limited
Has LED Remote Contact Audible Alarm Yes Maximum Surge Current Rating Per Phase 100 kA
Conduit Size 3/4" Diagnostics Indicator Audible Alarm Indicator, Blue LED Protection Status Indicator, Form C Dry Relay Contacts, Red LED Service Indicator
Maximum Continuous Operating Voltage (L-G) 552 Maximum Continuous Operating Voltage (L-L) 552
Maximum Surge Current Rating Per Mode 100 kA Nominal Discharge Current 20 kA
RoHS Certification Yes Short Circuit Current Rating 200 kA
Surge Protection LED Indicator Yes Voltage Protection Rating (L-G) 1800
Voltage Protection Rating (L-L) 4000 Wire Size Max #10 AWG
Operating Temperature Max (°C) 80 Operating Temperature Max (°F) 176
Operating Temperature Min (°C) -40 Operating Temperature Min (°F) -40
Product Depth (in) 3.29 Product Depth (mm) 83.57
Product Height (in) 10.59 Product Height (mm) 268.99
Product Width (in) 5.25 Product Width (mm) 133.35
Unit Carton Height (in) 4.375 Unit Carton Length (in) 12.625
Unit Carton Weight (lb) 0.6 Unit Carton Width (in) 6.375
