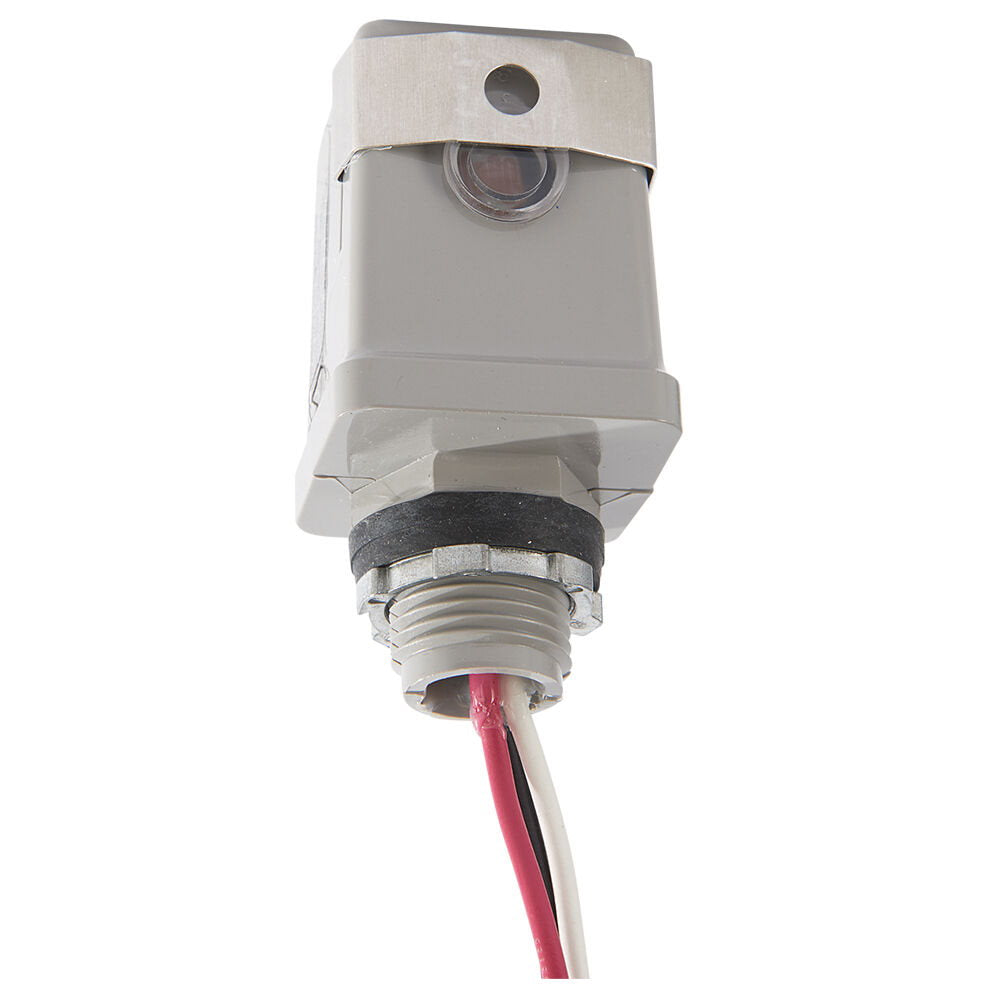

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1?2"-14 NPSM thread or 7?8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Delay feature prevents unwanted OFF switching
- Gray plastic housing
- 1?2"-14 NPSM threaded stem
- Washer gasket and locking nut included
- #18 AWG, 9" wire leads
Outdoor Lighting Control
|Input Voltage Range(s)||208-277 VAC, 50/60 Hz||Usage Environments||Outdoor|
|Photocontrol Style||Stem Mount||Warranty Period||2-Year limited|
|Wiring Option||Wire leads||Application Compatibilities||Fluorescent, HID, Incandescent|
|Activation Off||3 to 15 fc||Activation On||1 to 5 fc|
|Category||Fixed Mount Thermal Photocontrols Web||Cover Color||Gray|
|Fail Mode||ON||Housing Material||Polycarbonate|
|Magnetic Ballast (NO)||8.3 A, 1700-2300 VA||Magnetic Ballast Range(s)||8.3 A, 1700-2300 VA|
|Photo Control Switch Type||Mechanical Bimetal||Photocell Type||Cadmium Sulfide|
|Photocontrol Sensor Location||Side||Photocontrol Type||Thermal|
|Sensor Time Delay||30 sec to 90 sec||Tungsten (NO)||15 A, 3100-4150 W|
|Tungsten Range(s)||15 A, 3100-4150 W||Wire Size Max||#18 AWG|
|Operating Temperature Max (°C)||70||Operating Temperature Max (°F)||158|
|Operating Temperature Min (°C)||-40||Operating Temperature Min (°F)||-40|
|Product Depth (in)||1 9/16||Product Depth (mm)||39.7|
|Product Height (in)||3||Product Height (mm)||76.2|
|Product Width (in)||1 9/16||Product Width (mm)||39.7|
|Unit Carton Height (in)||4.88||Unit Carton Length (in)||3|
|Unit Carton Weight (lb)||0.2||Unit Carton Width (in)||1.75|
