Intermatic K122 Locking Type Receptacle, 3-Pin, C136.10 Compliant, with Pole Mounting Bracket

IntermaticSKU: K122

Price:
Sale price $24.25
Stock:
Sold out

Description

Specifications

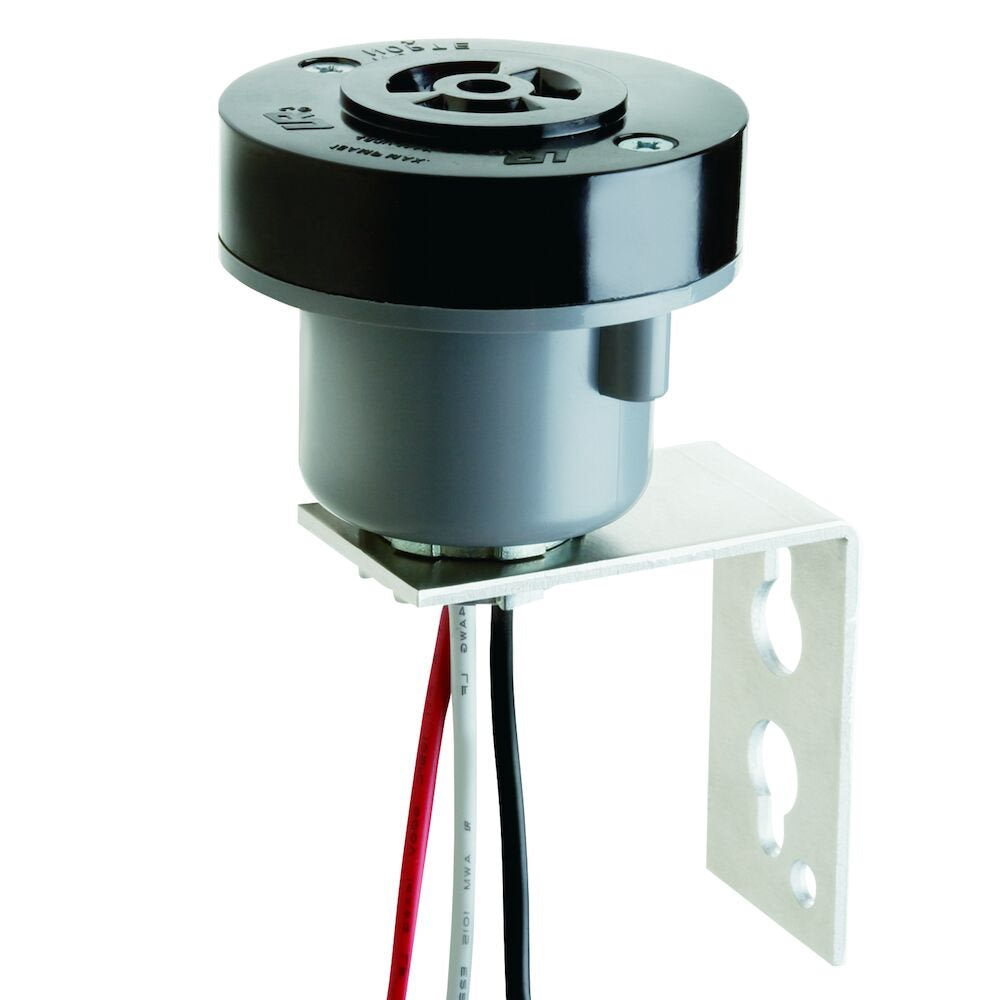

The K122 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself, or attached externally with the use of a mounting bracket (included).

Features:

  • NEMA receptacle with 3-prong sockets
  • Compliant to ANSI C136.10 specifications

Specifications:

Color Black Warranty Period 1-Year limited
Back Cover Material Phenolic Base Material Phenolic
Bracket Material Aluminum Category Photocontrols Accessories Web
Gasket (Integrated) Thermal Elastomer Power Contacts Material Brass/Phosphor Bronze
Power Contacts Rating 480 V max, 15 A max UL Standard UL 772
Wire Leads #14 AWG, 105°C, AWM3321 Operating Temperature Max (°C) 80
Operating Temperature Max (°F) 176 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Height (in) 2.13
Product Height (mm) 54.1 Unit Carton Height (in) 6.381
Unit Carton Length (in) 3.251 Unit Carton Weight (lb) 0.35
Unit Carton Width (in) 3.251
