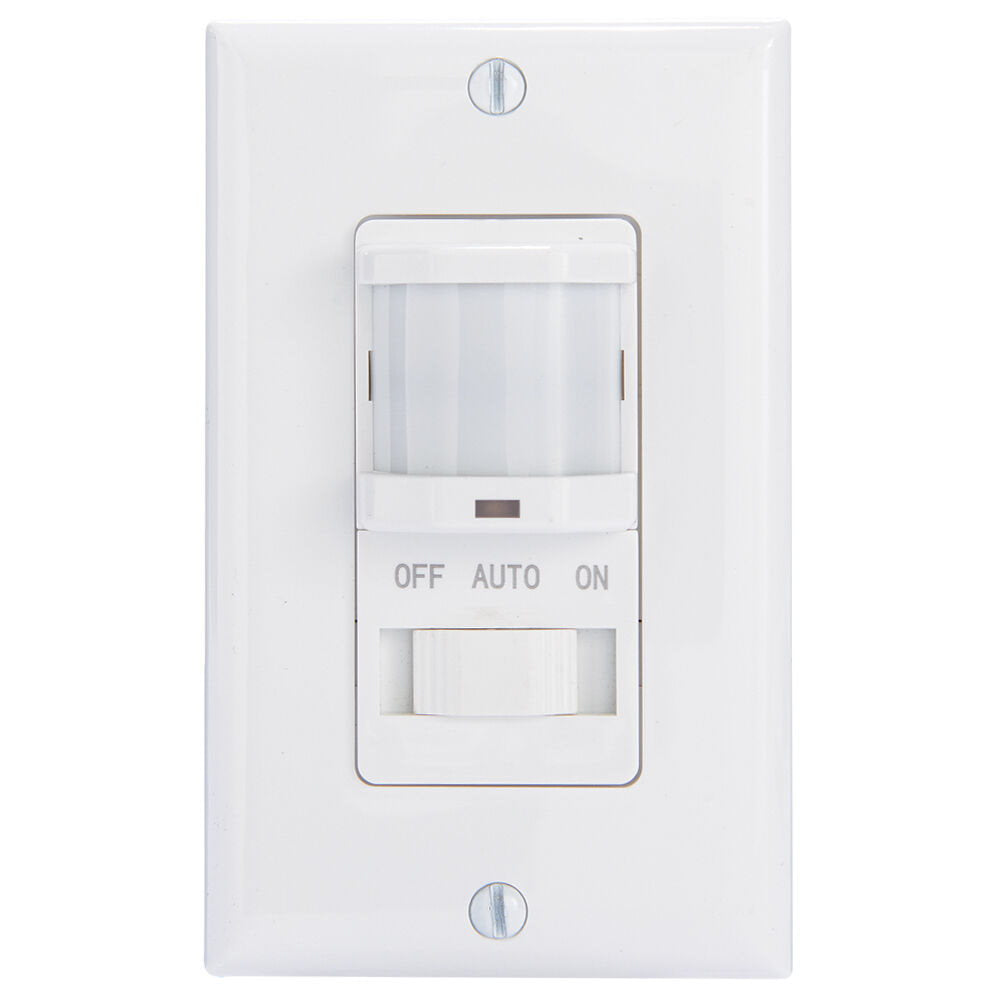

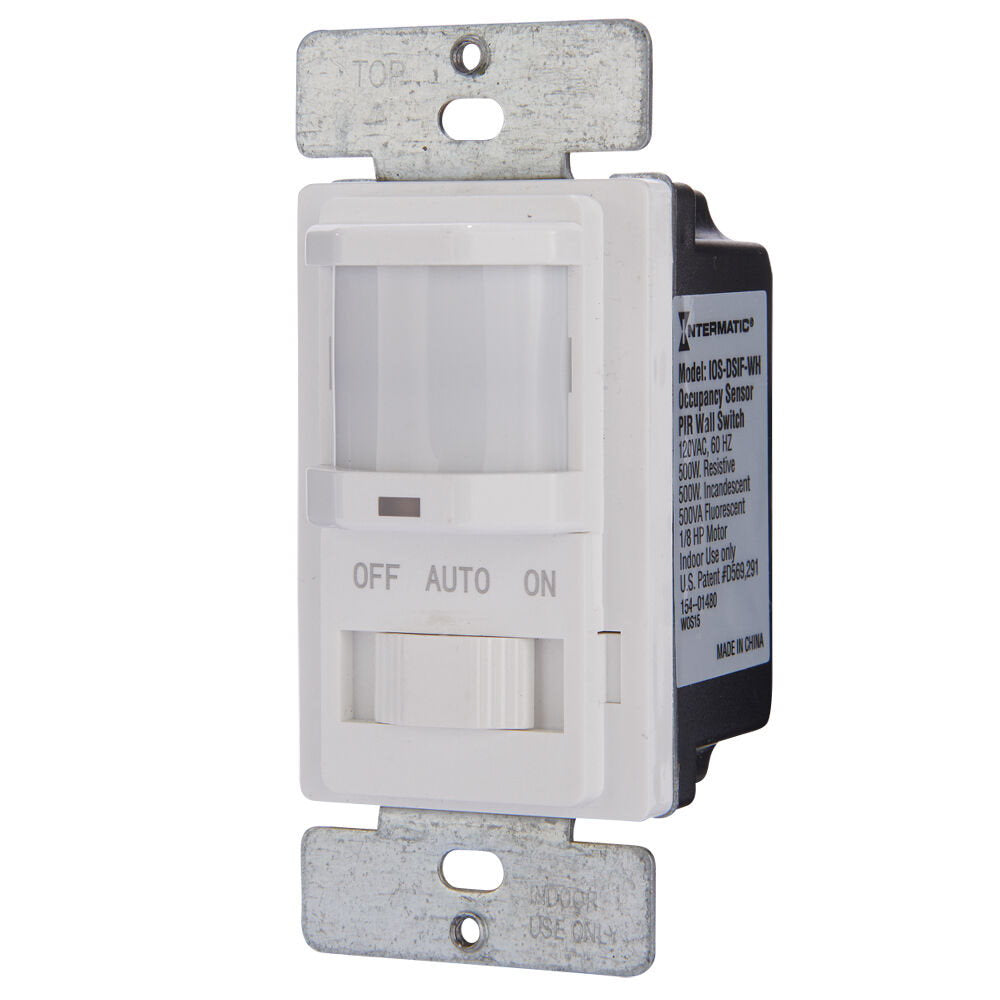

Intermatic IOS-DSIMF-WH Residential In-Wall PIR Occupancy Sensor, No Neutral Required, White

IntermaticSKU: IOS-DSIMF-WH

Price:
Sale price $16.85
Stock:
Sold out

Description

Specifications | Instructions

The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor

Features:

  • Passive Infrared (PIR) sensing for presence detection
  • Adjustable PIR sensitivity
  • Adjustable time delay 15 sec to 30 min
  • Adjustable ambient light sensor override
  • Coverage: 150º, 980 ft2 with non-obstructed views
  • IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
  • 'No neutral' models offered for retrofit applications
  • Fits standard decorator wall plate (included)

Applications:

  • Indoor Sensing Control

Specifications:

Color White Input Voltage Range(s) 120 VAC, 50/60 Hz
Mount Type In-Wall Neutral Connection Required No
Occupancy Sensor Power Type Line Voltage Warranty Period 2-Year limited
Application Compatibilities CFL, Fluorescent, Incandescent Sensor Switch Type Occupancy
Sensor Technology PIR (Passive Infrared) Adjustable Light Level Max Daylight
Adjustable Light Level Min 30 lux Adjustable Time Delay Max 30 min
Adjustable Time Delay Min 15 sec Ballast Fluorescent 800 VA
Ballast Fluorescent Ranges 800 VA Category Occupancy/Vacancy Sensors Web
Coverage Pattern 150°, 980 ft2 Fluorescent Lamps 800 VA
Includes Wall Plate Yes Inductive 800 VA
Inductive Load Ratings Ranges 800 VA Maximum Mounting Height (ft) 4 ft
Motor (Three-Phase) 1/4 HP Motor Three Phase Ranges 1/4 HP
PIR Coverage Area (sq ft) 980 PIR Lens 2 Coverage Pattern (degrees) 150
Resistive Heater 800 W Tungsten (Incandescent) Range(s) 800 W
Tungsten Incandescent 800 W Operating Temperature Max (°C) 55
Operating Temperature Max (°F) 131 Operating Temperature Min (°C) 0
Operating Temperature Min (°F) 32 Product Depth (in) 1.625
Product Depth (mm) 41 Product Height (in) 2.75
Product Height (mm) 70 Product Width (in) 1 7/16
Product Width (mm) 37 Unit Carton Height (in) 5
Unit Carton Length (in) 3 Unit Carton Weight (lb) 0.4
Unit Carton Width (in) 2.25
