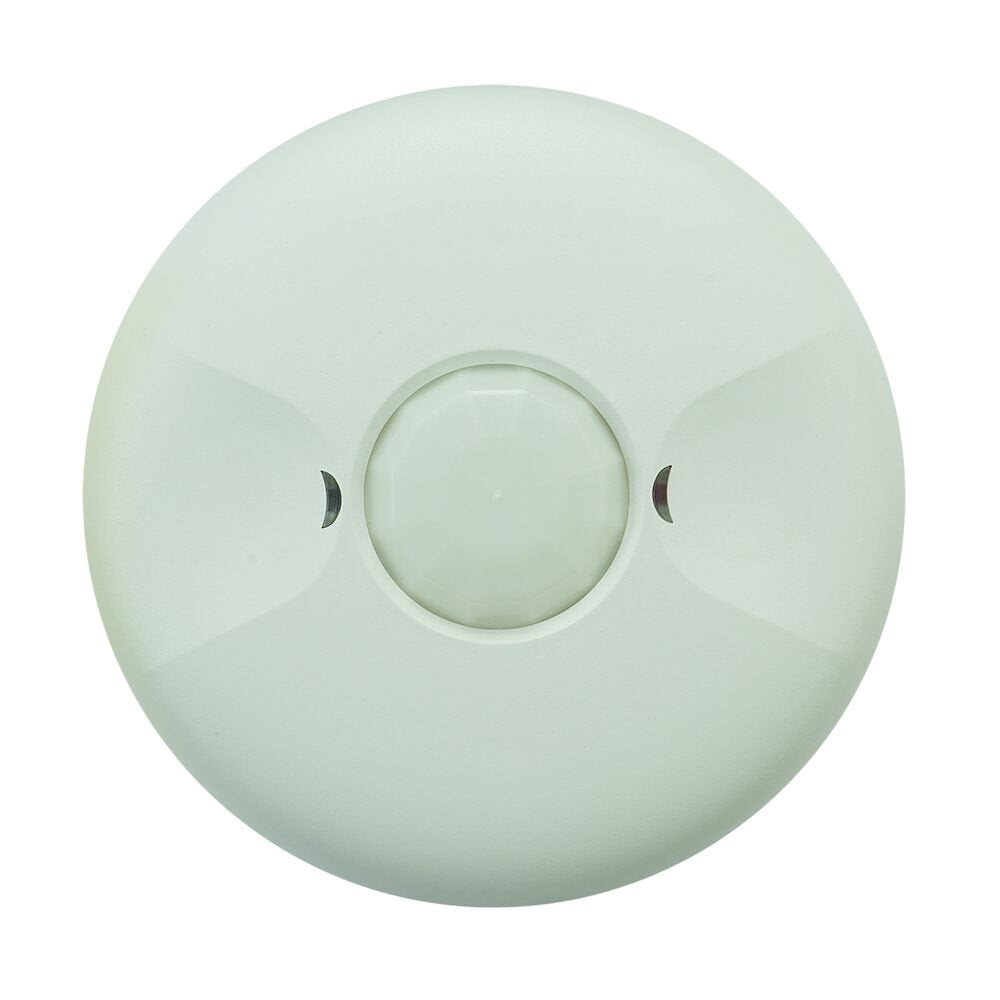

Intermatic IOS-CMP-U Commercial Grade Line Voltage Ceiling Mount PIR Occupancy Sensor, White

IntermaticSKU: IOS-CMP-U

Sale price $64.56
Sold out


Specifications | Instructions

The IOS-CMP-U 360° Passive Infrared (PIR) Line Voltage Occupancy Sensors control lighting systems based on occupancy and ambient light levels. When movement is detected, the sensor turns the lights ON. If no movement is detected for a user-specified time, the lights are turned OFF. The occupancy sensor provides a 360° coverage pattern, up to 1200 square feet.


  • PIR technology sensing for presence detection
  • Coverage: 1200 ft2 when mounted on 8 to 11 ft ceiling
  • Zero-crossing technology for long life and performance
  • Adjustable ambient light sensor override
  • Requires neutral connection
  • Incandescent/Fluorescent/CFL/LED compatible


  • Indoor Sensing Control


Color White Input Voltage Range(s) 120/277 VAC, 60 Hz
Mount Type Ceiling Neutral Connection Required Yes
Occupancy Sensor Power Type Line Voltage Warranty Period 2-Year limited
Application Compatibilities CFL, Fluorescent, Incandescent, LED Sensor Switch Type Occupancy
Sensor Technology PIR (Passive Infrared), Zero-crossing Adjustable Light Level Max 150 fc
Adjustable Light Level Min 10 fc Adjustable Time Delay Max 30 min
Adjustable Time Delay Min 15 sec Ballast Fluorescent 800 VA, 120 VAC; 1600 VA, 277 VAC
Ballast Fluorescent Ranges 800 VA, 120 VAC; 1600 VA, 277 VAC Category Occupancy/Vacancy Sensors Web
Electronic Ballast LED 800 VA, 120 VAC; 1600 VA, 277 VAC Maximum Mounting Height (ft) 8-11 ft
Motor (Three-Phase) 1/4 HP, 120 VAC Motor Three Phase Ranges 1/4 HP, 120 VAC
PIR Coverage Area (sq ft) 1200 PIR Lens 2 Coverage Pattern (degrees) 360
Rating General Purpose Resistive Heater 10 A
Tungsten (Incandescent) Range(s) 800 W, 120 VAC Tungsten Incandescent 800 W, 120 VAC
Operating Temperature Max (°C) 55 Operating Temperature Max (°F) 131
Operating Temperature Min (°C) 0 Operating Temperature Min (°F) 32
Product Height (in) 1 3/8 Product Height (mm) 35
Unit Carton Height (in) 2 Unit Carton Length (in) 5
Unit Carton Weight (lb) 0.399 Unit Carton Width (in) 5
