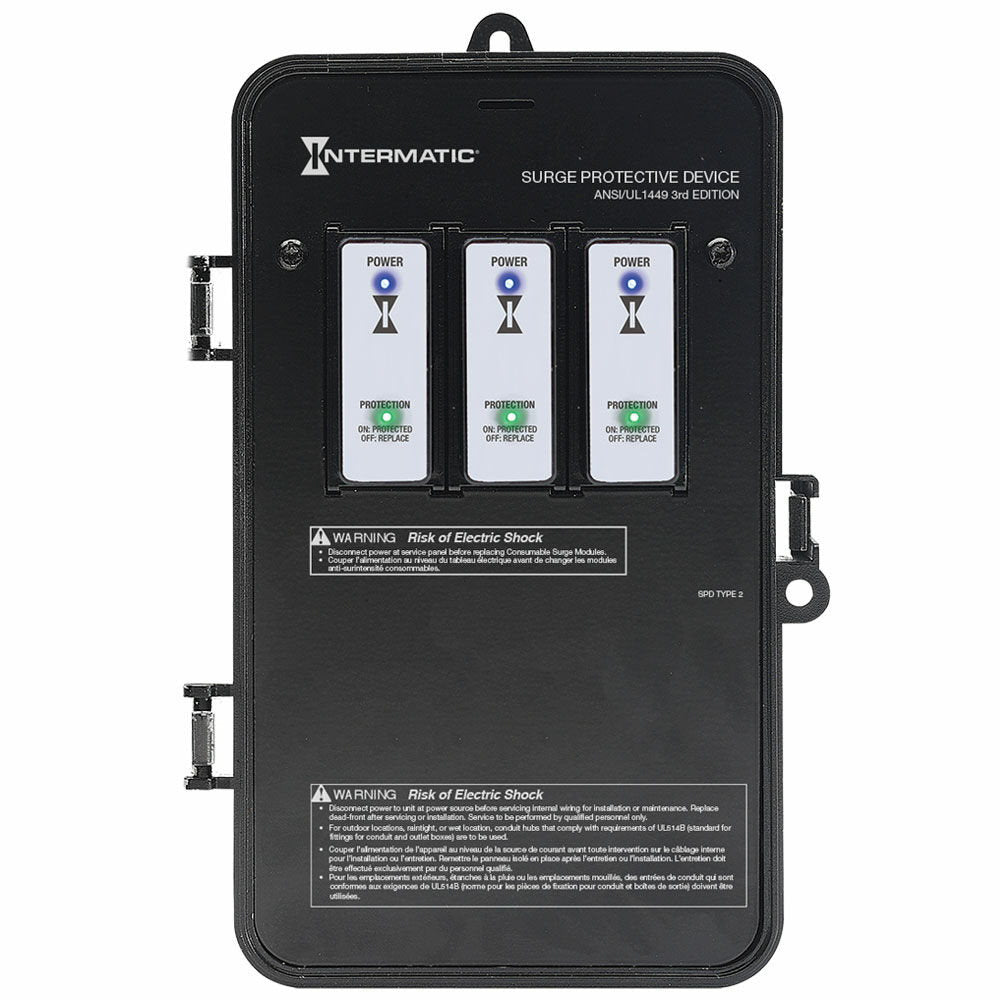

Intermatic IG2240-PK Surge Protective Device, 6-Mode, 120/240 VAC 1Ph, Type 2, Outdoor Plastic, Connected Equipment Warranty 10yr $25,000
Intermatic's Smart Guard® Whole House Surge Protective Device provides coverage of your customer’s big investment equipment, from appliances and computers, to HVAC equipment and TVs. This innovative SPD uses the IModule™ with LED lights for quick and easy indication when protection has been compromised. A blue light indicates the SPD unit is ON and a green light indicates surge protection is active. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. UL Listed to ANSI/UL 1449 3rd edition.
Features:
- Six Modes of protection
- TPMOV® surge protection technology
- Includes three IModules with LED power and protection status lights
- IModules replace quickly and easily, eliminating the need to install a new SPD unit
- Tamper-proof IModule doors, will only open when IModule is being inserted
- Type 3R Rainproof Enclosure for indoor/outdoor applications in plastic
- 10-year product warranty
- $25,000 connected equipment warranty for 10 years on appliances and electronics
- UL certified to ANSI/UL 1449 4th edition
Applications:
-
Whole Home Protection
Specifications:
Input Voltage Range(s) | 120/240 VAC, 50/60 Hz | Modes of Protection | 6 (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2) |
Surge Protection Type | 2 | Enclosure Type | Indoor/outdoor type 3R plastic |
Surge Protection Technology | TPMOV® | Voltage | 120/240 VAC Single-Phase |
Warranty Period | 10-Year limited (Base) 3-Year limited (Modules) | Wiring Option | Terminals, Wire leads |
Maximum Surge Current Rating Per Phase | 50 kA | Category | Whole House Surge Web |
Connected Equipment Warranty Period | 10-Year limited | Joules | 0 |
Maximum Continuous Operating Voltage (L-G) | 300 | Maximum Continuous Operating Voltage (L-L) | 300 |
Maximum Continuous Operating Voltage (L-N) | 150 | Maximum Continuous Operating Voltage (N-G) | 150 |
Nominal Discharge Current | 10 kA | Phase | Single |
Short Circuit Current Rating | 10 kA | Surge Protection LED Indicator | Blue, Green |
UL Standard | Ansi/UL 1449 3rd Edition | Voltage Protection Rating (L-G) | 1500 |
Voltage Protection Rating (L-L) | 1200 | Voltage Protection Rating (L-N) | 800 |
Voltage Protection Rating (N-G) | 700 | Wire Size Max | #10 AWG, Tinned Copper |
Operating Temperature Max (°C) | 85 | Operating Temperature Max (°F) | 185 |
Operating Temperature Min (°C) | -35 | Operating Temperature Min (°F) | -31 |
Unit Carton Height (in) | 10.75 | Unit Carton Length (in) | 6.75 |
Unit Carton Weight (lb) | 3.3 | Unit Carton Width (in) | 4.25 |
