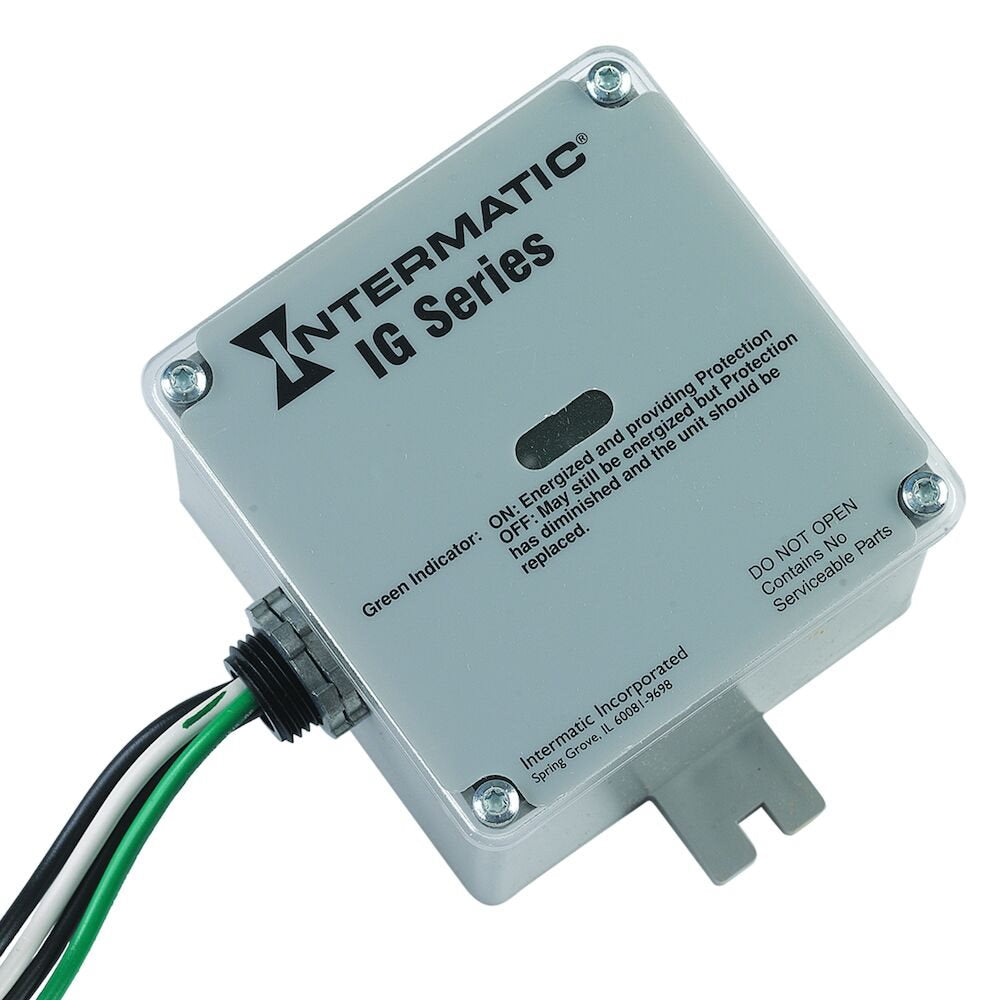

Intermatic - IG1240RC3 - Surge Protective Device, 6-Mode, 120/240 VAC 1Phase, Type 1 or Type 2

IntermaticSKU: IG1240RC3

Price:
Sale price $172.43
Stock:
In stock

Description

Spec Sheet  Install Manual

Intermatic IG1240RC3 Surge Protective Device, 6-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor Plastic, Connected Equipment Warranty 5 yr $10,000

The IG Series Surge Protective Devices (SPD) are designed for a variety of applications. A green LED indicator provides status of protection. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA certified to ANSI/UL 1449, 3rd Edition.

Features:

  • Six modes of surge protection
  • TPMOV® surge protection technology
  • Green LED indicator provides status of protection
  • Type 3R rainproof enclosure for indoor/outdoor applications in plastic
  • 5-year product warranty
  • $10,000 connected equipment warranty on appliances and electronics
  • CSA certified to ANSI/UL 1449 3rd edition

Applications:

  • Whole Home Protection

Specifications:

Modes of Protection 6 (L1-N, L2-N, L1-G, L2-G, N-G, L1-L2) Surge Protection Type 1, 2
Enclosure Type Outdoor type 3R plastic Surge Protection Technology TPMOV®
Voltage 120/240 VAC Single-Phase Warranty Period 5-Year limited
Wiring Option Wire leads Maximum Surge Current Rating Per Phase 50 kA
Category Whole House Surge Web Connected Equipment Warranty Period 5-Year limited
Maximum Continuous Operating Voltage (L-G) 300 Maximum Continuous Operating Voltage (L-L) 300
Maximum Continuous Operating Voltage (L-N) 150 Maximum Continuous Operating Voltage (N-G) 150
Nominal Discharge Current 20 kA Phase Single
Short Circuit Current Rating 100 kA Surge Protection LED Indicator Green
UL Standard Ansi/UL 1449 3rd Edition Voltage Protection Rating (L-G) 1200
Voltage Protection Rating (L-L) 1200 Voltage Protection Rating (L-N) 700
Voltage Protection Rating (N-G) 700 Wire Size Max #12 AWG, Tinned Copper
Operating Temperature Max (°C) 85 Operating Temperature Max (°F) 185
Operating Temperature Min (°C) -35 Operating Temperature Min (°F) -31
Product Depth (in) 3 7/16 Product Depth (mm) 87.3
Product Height (in) 4 3/16 Product Height (mm) 106.4
Product Width (in) 4 3/16 Product Width (mm) 106.4
Unit Carton Height (in) 7.501 Unit Carton Length (in) 6.251
Unit Carton Weight (lb) 1.098 Unit Carton Width (in) 3.751
