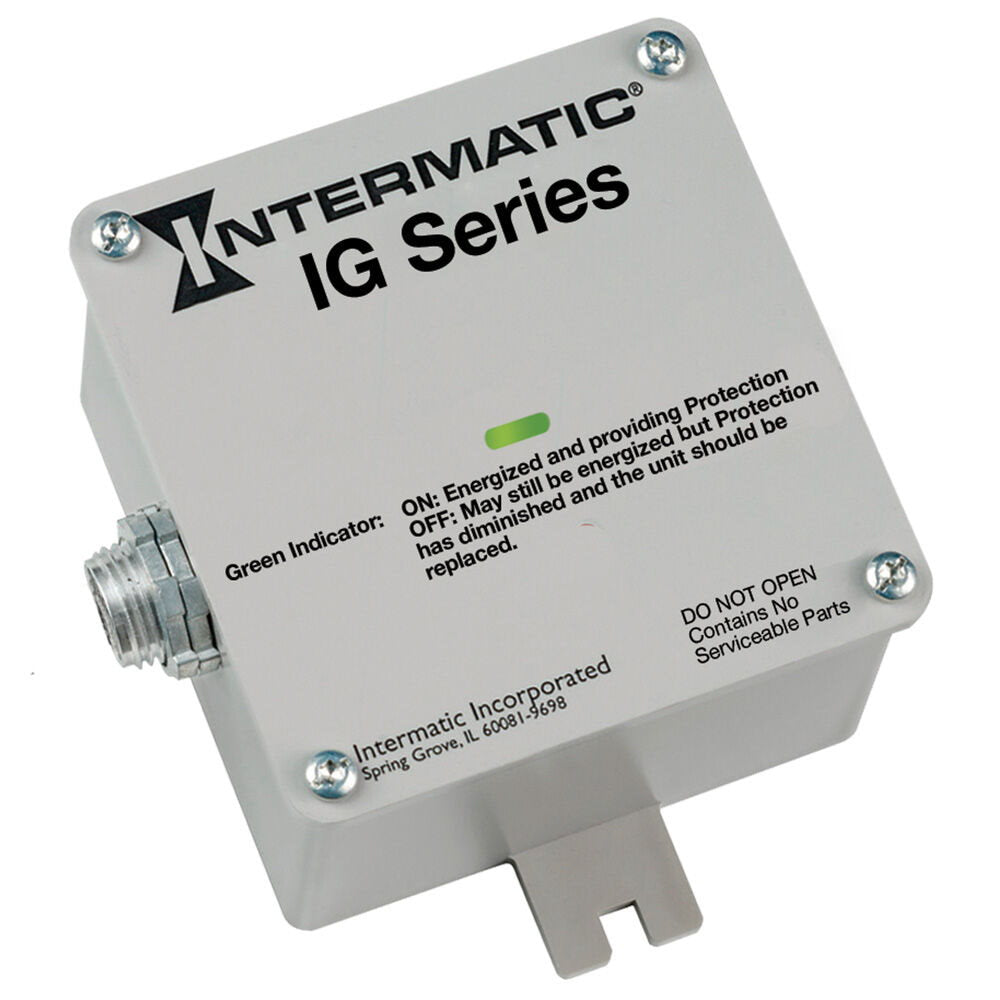

Intermatic IG1200RC3 Surge Protective Device, 3-Mode, 120/240 VAC 1Phase, Type 1 or Type 2

IntermaticSKU: IG1200RC3

Price:
Sale price $111.49
Stock:
In stock

Description

Specifications | Instructions

Intermatic IG1200RC3 Surge Protective Device, 3-Mode, 120/240 VAC 1Ph, Type 1 or Type 2, Outdoor Plastic, Connected Equipment Warranty 3 yr $7,500

The IG1200 Surge Protective Device (SPD) is designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology.

Features:

  • Three modes of surge protection
  • TPMOV® surge protection technology
  • Green LED indicator provides status of protection
  • Type 3R rainproof enclosure for indoor/outdoor applications in plastic
  • 3-year product warranty
  • $7,500 connected equipment warranty on appliances and electronics
  • CSA certified to ANSI/UL 1449 3rd edition

Applications:

  • Whole Home Protection

Specifications:

Modes of Protection 3 (L1-N, L2-N, L1-L2) Surge Protection Type 1, 2
Enclosure Type Outdoor type 3R plastic Surge Protection Technology TPMOV®
Voltage 120/240 VAC Single-Phase Warranty Period 3-Year limited
Wiring Option Wire leads Maximum Surge Current Rating Per Phase 50 kA
Category Whole House Surge Web Connected Equipment Warranty Period 3-Year limited
Joules 0 Maximum Continuous Operating Voltage (L-L) 300
Maximum Continuous Operating Voltage (L-N) 150 Nominal Discharge Current 20 kA
Phase Single Short Circuit Current Rating 100 kA
Surge Protection LED Indicator Green UL Standard Ansi/UL 1449 3rd Edition
Voltage Protection Rating (L-L) 1200 Voltage Protection Rating (L1-N/G) 700
Wire Size Max #12 AWG, Tinned Copper Operating Temperature Max (°C) 85
Operating Temperature Max (°F) 185 Operating Temperature Min (°C) -35
Operating Temperature Min (°F) -31 Product Depth (in) 3 7/16
Product Depth (mm) 87.3 Product Height (in) 4 3/16
Product Height (mm) 106.4 Product Width (in) 4 3/16
Product Width (mm) 106.4 Unit Carton Height (in) 7.501
Unit Carton Length (in) 6.251 Unit Carton Weight (lb) 1.098
Unit Carton Width (in) 3.751
