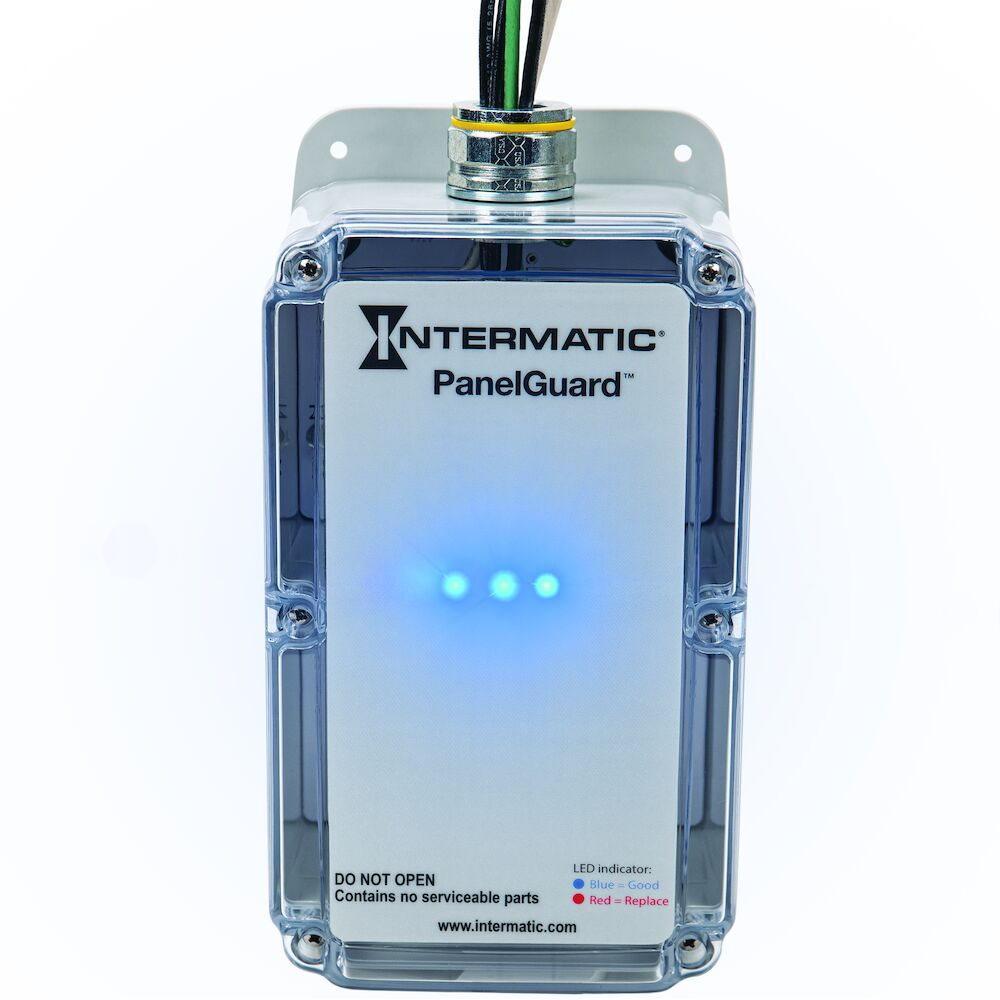

Intermatic H20S13D1DG2 Surge Protective Device, 7-Mode, 120/240 VAC 3Ph High Leg Delta, Type 1, Audible Alarm, Form C Contact, Surge Current Rating 200kA
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
Features:
- Type 1 surge protection
- Optional audible alarm and dry relay contacts
- 7 Modes of protection
- NFPA 780, UL 96A Lightning system protection compliant
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- Blue LED status indicator per phase, red LED service indicator
Applications:
-
Distribution Panel
-
Service Entrance
Specifications:
Color | Gray | Modes of Protection | 7 |
Surge Protection Type | 1 | Enclosure Type | NEMA Type 4X |
Surge Protection Technology | Individually integrated thermal disconnect technology TPMOV | Voltage | 120/240 VAC 3-Phase High Leg Delta |
Filter | No Filter | Warranty Period | 10-Year limited |
Has LED Remote Contact Audible Alarm | Yes | Maximum Surge Current Rating Per Phase | 200 kA |
Conduit Size | 3/4" | Diagnostics Indicator | Audible Alarm Indicator, Blue LED Status Indicator Per Phase, Form C Dry Relay Contacts, Red LED Service Indicator |
Maximum Continuous Operating Voltage (L-G) | 150 | Maximum Continuous Operating Voltage (L-L) | 300 |
Maximum Continuous Operating Voltage (L-N) | 150 | Maximum Continuous Operating Voltage (N-G) | 150 |
Maximum Continuous Operating Voltage HG | 300 | Maximum Continuous Operating Voltage HL | 300 |
Maximum Continuous Operating Voltage HN | 300 | Maximum Surge Current Rating Per Mode | 100 kA |
Nominal Discharge Current | 20 kA | RoHS Certification | Yes |
Short Circuit Current Rating | 200 kA | Surge Protection LED Indicator | Yes |
Voltage Protection Rating (L-G) | 700 | Voltage Protection Rating (L-L) | 1200 |
Voltage Protection Rating (L-N) | 700 | Voltage Protection Rating (N-G) | 700 |
Voltage Protection Rating HG | 1200 | Voltage Protection Rating HL | 1800 |
Voltage Protection Rating HN | 1200 | Wire Size Max | #10 AWG |
Operating Temperature Max (°C) | 80 | Operating Temperature Max (°F) | 176 |
Operating Temperature Min (°C) | -40 | Operating Temperature Min (°F) | -40 |
Product Depth (in) | 3.29 | Product Depth (mm) | 83.57 |
Product Height (in) | 10.59 | Product Height (mm) | 268.99 |
Product Width (in) | 5.25 | Product Width (mm) | 133.35 |
Unit Carton Height (in) | 4.375 | Unit Carton Length (in) | 12.625 |
Unit Carton Weight (lb) | 0.6 | Unit Carton Width (in) | 6.375 |
