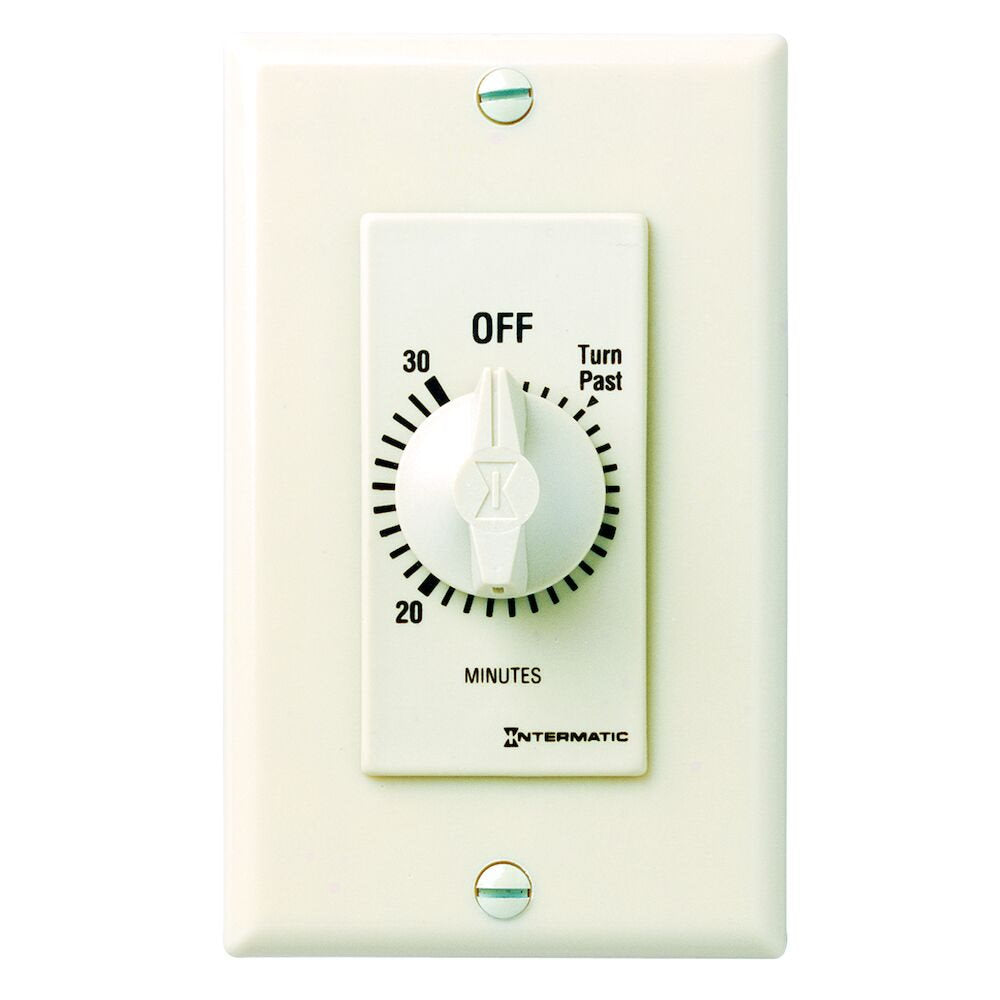

Intermatic - FD30MAC - Spring Wound Countdown Timer, Decorator Style, Light Almond

IntermaticSKU: FD30MAC

Price:
Sale price $29.72
Stock:
Sold out

Description

Spec Sheet  Install Manual

Intermatic FD30MAC Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 30 Minute Max, Without Hold, Light Almond

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

  • 30-Minute timer
  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single- or multi-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Incandescent/fluorescent/CFL/LED compatible
  • No neutral connection is required

Applications:

  • Air Movement & Ventilation
  • Indoor Lighting Control
  • Motor Control
  • Outdoor Lighting Control

Specifications:

Color Light Almond Input Voltage Range(s) 125-277 VAC, 50/60 Hz
Operation Mode Countdown Switch Type SPST
Wiring Configurations Single Hold Mode Included No
Wall Plate Configurations Single-Gang, Multi-Gang Countdown Time 30 min
Mechanism Type Analog/Mechanical Neutral Connection Required No
Warranty Period 1-Year limited Application Compatibilities CFL, Fluorescent, Incandescent, LED
Category Spring Wound Countdown Timers Web Motor Three Phase Ranges 1 HP, 125 VAC; 2 HP, 250 VAC
Resistive Heater 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC Tungsten (Incandescent) Range(s) 7 A, 125 VAC, 50/60 Hz, 875 W
Tungsten Incandescent 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W Operating Temperature Max (°C) 49
Operating Temperature Max (°F) 120 Operating Temperature Min (°C) 4
Operating Temperature Min (°F) 40 Product Depth (in) 1.25
Product Depth (mm) 31.8 Product Height (in) 4.125
Product Height (mm) 104.8 Product Width (in) 1.75
Product Width (mm) 44.5 Unit Carton Height (in) 7
Unit Carton Length (in) 2.5 Unit Carton Weight (lb) 0.2
Unit Carton Width (in) 4
