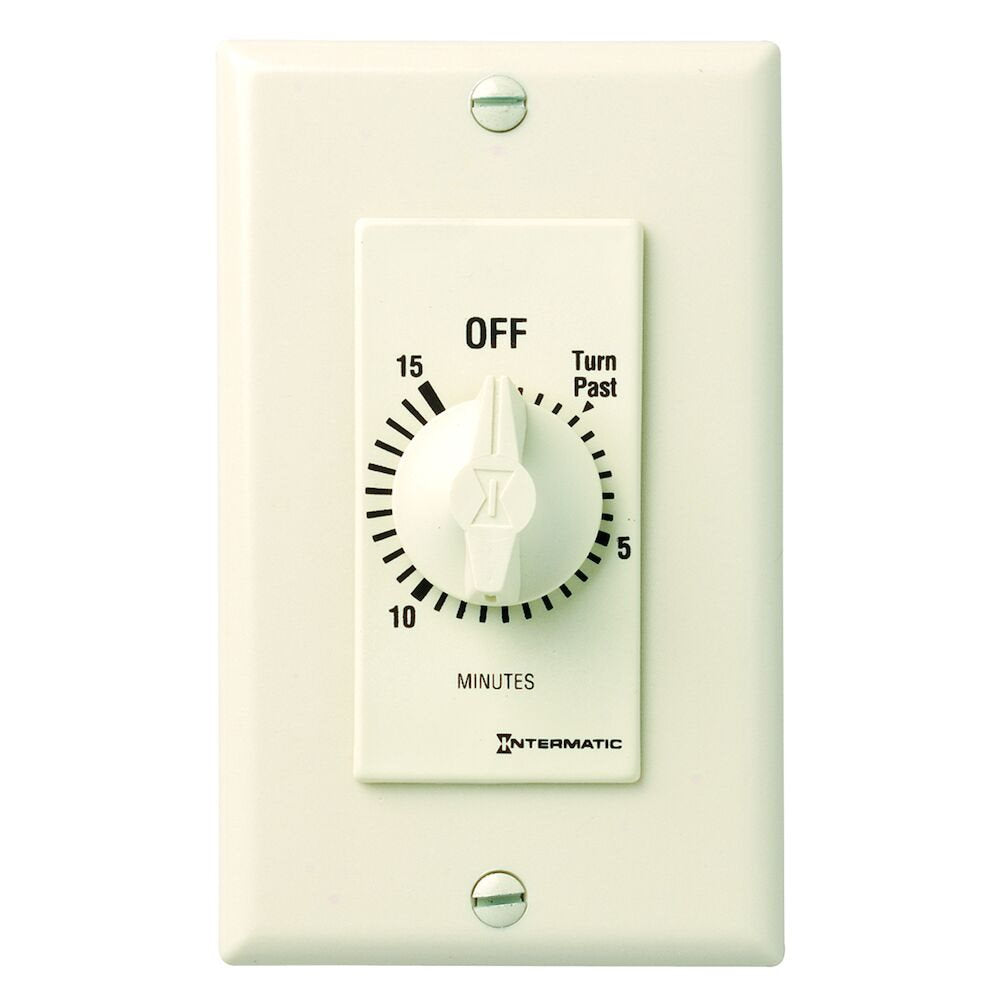

Intermatic FD15MAC Spring Wound Countdown Timer, Decorator Style, 125-277 VAC, 50/60 Hz, SPST, 15 Minute Max, Without Hold, Light Almond
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- 15-Minute timer
- SPST (Single-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
- Decorator switch plate not included
Air Movement & Ventilation
Indoor Lighting Control
Outdoor Lighting Control
|Color||Light Almond||Input Voltage Range(s)||125-277 VAC, 50/60 Hz|
|Operation Mode||Countdown||Switch Type||SPST|
|Wiring Configurations||Single||Hold Mode Included||No|
|Wall Plate Configurations||Single-Gang, Multi-Gang||Countdown Time||15 min|
|Mechanism Type||Analog/Mechanical||Neutral Connection Required||No|
|Warranty Period||1-Year limited||Application Compatibilities||CFL, Fluorescent, Incandescent, LED|
|Category||Spring Wound Countdown Timers Web||Motor Three Phase Ranges||1 HP, 125 VAC; 2 HP, 250 VAC|
|Resistive Heater||20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC||Tungsten (Incandescent) Range(s)||7 A, 125 VAC, 50/60 Hz, 875 W|
|Tungsten Incandescent||7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W||Operating Temperature Max (°C)||49|
|Operating Temperature Max (°F)||120||Operating Temperature Min (°C)||4|
|Operating Temperature Min (°F)||40||Product Depth (in)||1.25|
|Product Depth (mm)||31.8||Product Height (in)||4.125|
|Product Height (mm)||104.8||Product Width (in)||1.75|
|Product Width (mm)||44.5||Unit Carton Height (in)||7|
|Unit Carton Length (in)||2.5||Unit Carton Weight (lb)||0.299|
|Unit Carton Width (in)||4|
