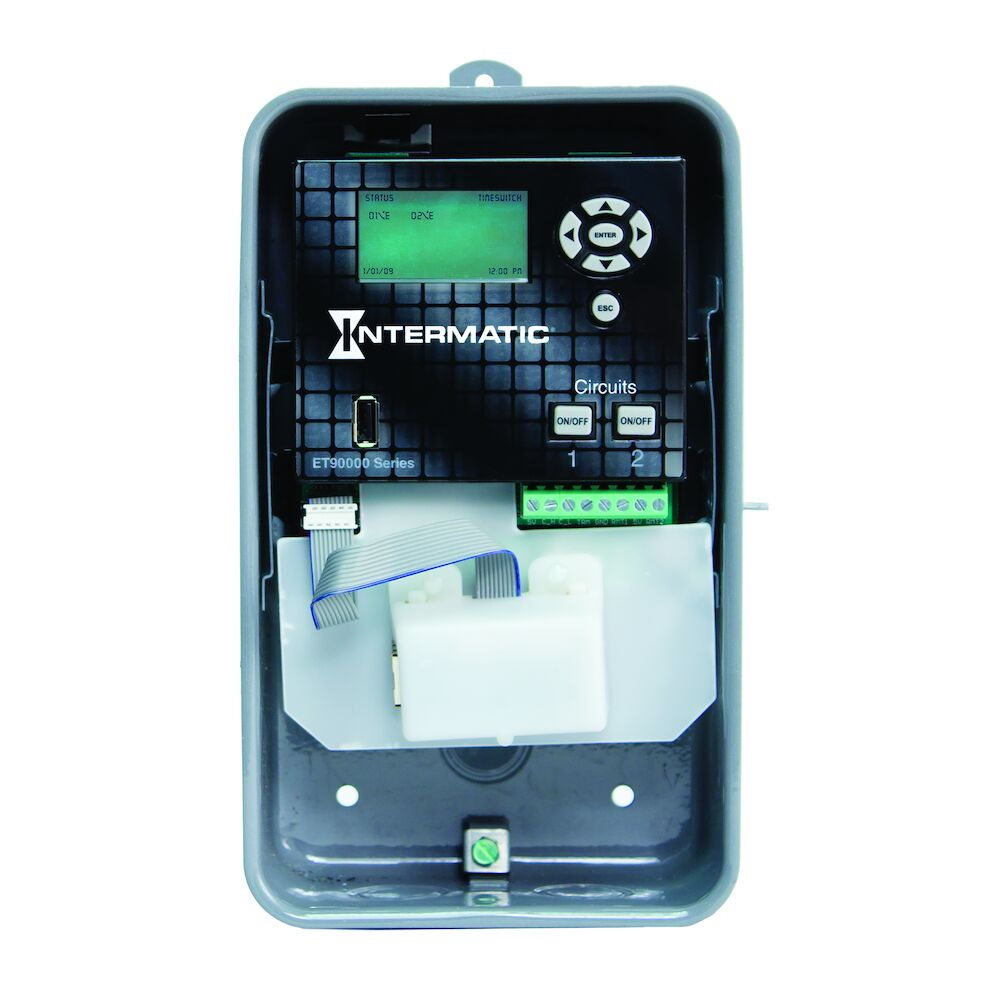

Intermatic ET90215CRE Astronomic 365-Day 2-Circuit Electronic Control, 120-277 VAC

IntermaticSKU: ET90215CRE

Price:
Sale price $693.86
Stock:
Sold out

Description

Specifications | Instructions

The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates.

Features:

  • Automatic input voltage selection from 120 to 277 VAC, 50/60 Hz
  • Over 2,000 events plus holiday schedules
  • Advanced scheduling including relative events, such as fourth Thursday of November or first week of year
  • 30 A rated contacts
  • 100-hour supercapacitor eliminates the need for batteries
  • USB connection for uploading, downloading and transferring programs
  • Easy-to-follow on-screen menus for programming to-the-minute accuracy
  • Non-volatile memory protects programming indefinitely
  • Firmware can be upgraded in-field via USB or Ethernet
  • Internally expandable, in 4-circuit increments, up to 16-circuits for 4, 8, and 12-circuit models

Applications:

  • Indoor Lighting Control
  • Machinery & Pump Controls
  • Outdoor Lighting Control
  • Timing/Scheduling ON/OFF

Specifications:

Backup Type Supercapacitor Input Voltage Range(s) 120-277 VAC, 50/60 Hz
Maximum ON/OFF Operations 2000 Number Of Circuits 2
Operation Mode 365-day Switch Type 2xSPDT
Enclosure Type Outdoor type 3R metal Minimum ON/OFF Times 1 Sec
Operation Features Astronomic, Holiday Electronic Series ET90000 Series
Maximum ON/OFF Times 365 days Maximum Power Consumption (W) 16 W
Minimum Pulse Time 1 Sec ON/OFF Operations 2000
Resistive (NO) 20 A @ 28 VDC, 30 A, 12 VAC, 50 Hz, 30 A, 12 VAC, 60 Hz, 30 A, 120 VAC, 50 Hz, 30 A, 120 VAC, 60 Hz, 30 A, 18 VAC, 50 Hz, 30 A, 18 VAC, 60 Hz, 30 A, 208 VAC, 50 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 24 VAC, 50 Hz, 30 A, 24 VAC, 60 Hz, 30 A, 240 VAC, 50 Hz, 30 A, 240 VAC, 60 Hz Warranty Period 3-Year limited
Wiring Option Terminals Backup Protection Time 100 Hour
Backup Restoration Time 30 Minutes Category Astronomic Electronic Controls Web
Data Transfer Options Ethernet Optional/USB Daylight Savings Adjustment Automatic
Electronic Ballast (NO) 8 A, 120 VAC, 50 Hz, 8 A, 120 VAC, 60 Hz, 8 A, 208 VAC, 50 Hz, 8 A, 208 VAC, 60 Hz, 8 A, 240 VAC, 50 Hz, 8 A, 240 VAC, 60 Hz, 8 A, 277 VAC, 50 Hz, 8 A, 277 VAC, 60 Hz Electronic Ballast Load Ratings NO Ranges 8 A, 120-277 VAC, 50/60 Hz
General Purpose (NC) 10 A, 120 VAC, 50 Hz, 10 A, 120 VAC, 60 Hz, 10 A, 12 VAC, 50 Hz, 10 A, 12 VAC, 60 Hz, 10 A, 18 VAC, 50 Hz, 10 A, 18 VAC, 60 Hz, 10 A, 208 VAC, 50 Hz, 10 A, 208 VAC, 60 Hz, 10 A, 240 VAC, 50 Hz, 10 A, 240 VAC, 60 Hz, 10 A, 24 VAC, 50 Hz, 10 A, 24 VAC, 60 Hz General Purpose (NC) Range(s) 10 A, 12-240 VAC, 50/60 Hz
General Purpose (NO) 30 A, 120 VAC, 50 Hz, 30 A, 120 VAC, 60 Hz, 30 A, 12 VAC, 50 Hz, 30 A, 12 VAC, 60 Hz, 30 A, 18 VAC, 50 Hz, 30 A, 18 VAC, 60 Hz, 30 A, 208 VAC, 50 Hz, 30 A, 208 VAC, 60 Hz, 30 A, 240 VAC, 50 Hz, 30 A, 240 VAC, 60 Hz, 30 A, 24 VAC, 50 Hz, 30 A, 24 VAC, 60 Hz General Purpose (NO) Range(s) 30 A, 12-240 VAC, 50/60 Hz
Magnetic Ballast (NC) 3 A, 120 VAC, 50 Hz, 3 A, 120 VAC, 60 Hz, 3 A, 208 VAC, 50 Hz, 3 A, 208 VAC, 60 Hz, 3 A, 240 VAC, 50 Hz, 3 A, 240 VAC, 60 Hz, 3 A, 277 VAC, 50 Hz, 3 A, 277 VAC, 60 Hz Magnetic Ballast (NC) Range(s) 3 A, 120-277 VAC, 50/60 Hz
Magnetic Ballast (NO) 20 A, 120 VAC, 50 Hz, 20 A, 120 VAC, 60 Hz, 20 A, 208 VAC, 50 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 50 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 50 Hz, 20 A, 277 VAC, 60 Hz Magnetic Ballast (NO) Range(s) 20 A, 120-277 VAC, 50/60 Hz
Maximum Pulse Time 23 hours, 59 minutes Motor (NC) 1/4 HP, 120 VAC, 50 Hz, 1/4 HP, 120 VAC, 60 Hz, 1/2 HP, 240 VAC, 50 Hz, 1/2 HP, 240 VAC, 60 Hz
Motor (NO) 1 HP, 120 VAC, 50 Hz, 1 HP, 120 VAC, 60 Hz, 2 HP, 240 VAC, 50 Hz, 2 HP, 240 VAC, 60 Hz Motor Load Ratings NC Ranges 1/4 HP, 120 VAC, 50/60 Hz; 1/2 HP, 240 VAC, 50/60 Hz
Motor Load Ratings NO Ranges 1 HP, 120 VAC, 50/60 Hz; 2 HP, 240 VAC, 50/60 Hz Pilot Duty (NC) 275 VA, 120 VAC, 50 Hz, 275 VA, 120 VAC, 60 Hz, 275 VA, 208 VAC, 50 Hz, 275 VA, 208 VAC, 60 Hz, 275 VA, 240 VAC, 50 Hz, 275 VA, 240 VAC, 60 Hz
Pilot Duty (NC) Range(s) 275 VA, 120-240 VAC, 50/60 Hz Pilot Duty (NO) 470 VA, 120 VAC, 50 Hz, 470 VA, 120 VAC, 60 Hz, 470 VA, 208 VAC, 50 Hz, 470 VA, 208 VAC, 60 Hz, 470 VA, 240 VAC, 50 Hz, 470 VA, 240 VAC, 60 Hz
Pilot Duty (NO) Range(s) 470 VA, 120-240 VAC, 50/60 Hz Resistive (NC) 10 A, 12 VAC, 50 Hz, 10 A, 12 VAC, 60 Hz, 10 A, 120 VAC, 50 Hz, 10 A, 120 VAC, 60 Hz, 10 A, 18 VAC, 50 Hz, 10 A, 18 VAC, 60 Hz, 10 A, 208 VAC, 50 Hz, 10 A, 208 VAC, 60 Hz, 10 A, 24 VAC, 50 Hz, 10 A, 24 VAC, 60 Hz, 10 A, 240 VAC, 50 Hz, 10 A, 240 VAC, 60 Hz, 10 A, 28 VDC
Resistive (NC) Range(s) 10 A, 28 VDC; 10 A, 12-240 VAC, 50/60 Hz Resistive (NO) Range(s) 20 A, 28 VDC; 30 A, 12-240 VAC, 50/60 Hz
Tungsten (NO) Load Ratings 5 A, 110 VAC, 50 Hz, 5 A, 110 VAC, 60 Hz, 5 A, 115 VAC, 50 Hz, 5 A, 115 VAC, 60 Hz, 5 A, 12 VAC, 50 Hz, 5 A, 12 VAC, 60 Hz, 5 A, 120 VAC, 50 Hz, 5 A, 120 VAC, 60 Hz, 5 A, 24 VAC, 50 Hz, 5 A, 24 VAC, 60 Hz, 5 A, 50 VAC, 50 Hz, 5 A, 50 VAC, 60 Hz Tungsten (NO) Range(s) 5 A, 12-120 VAC, 50/60 Hz
Voltage Selection Type Auto Voltage Operating Temperature Max (°C) 40
Operating Temperature Max (°F) 104 Operating Temperature Min (°C) -40
Operating Temperature Min (°F) -40 Product Depth (in) 3.6
Product Depth (mm) 91 Product Height (in) 9.6
Product Height (mm) 243 Product Width (in) 5.7
Product Width (mm) 145 Unit Carton Height (in) 9
Unit Carton Length (in) 11.38 Unit Carton Weight (lb) 3.642
Unit Carton Width (in) 4.38
