Intermatic - EI200W - Electronic Countdown Timer, White

IntermaticSKU: EI200W

Price:
Sale price $41.83
Stock:
Sold out

Description

Spec Sheet  Install Manual

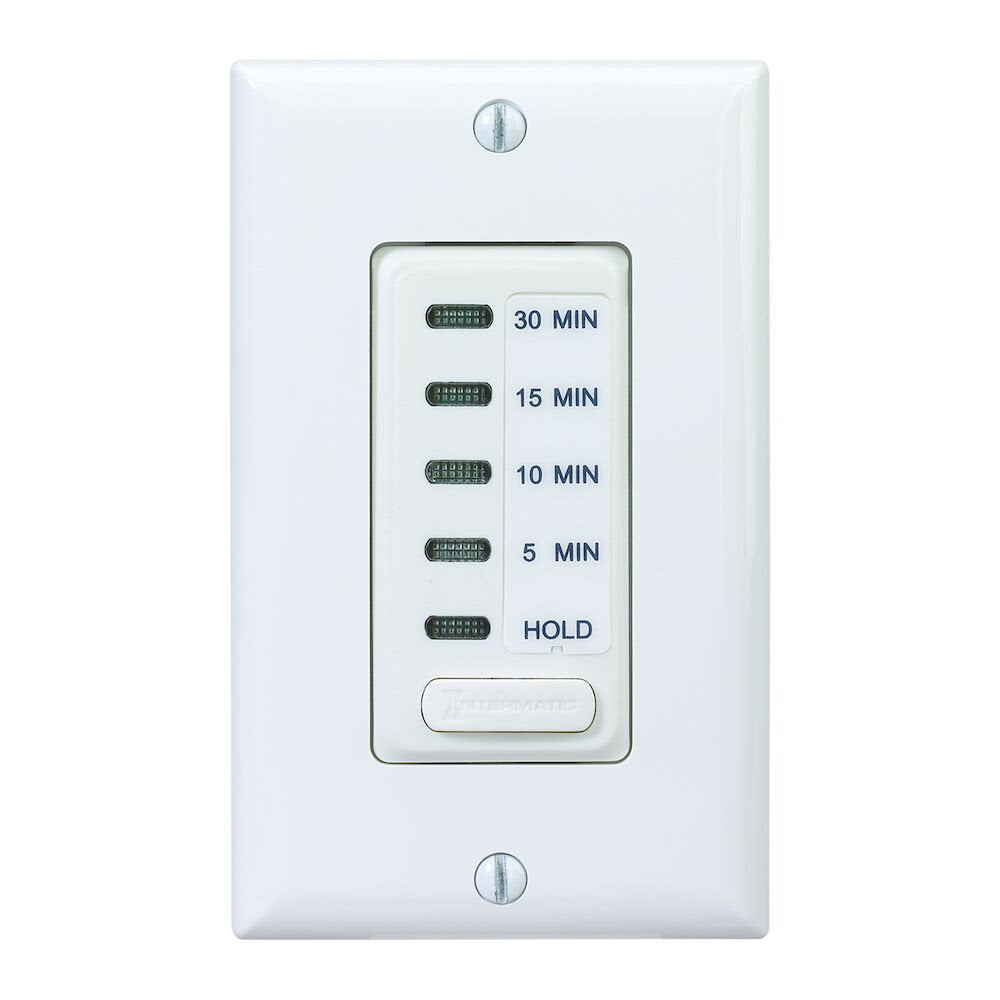

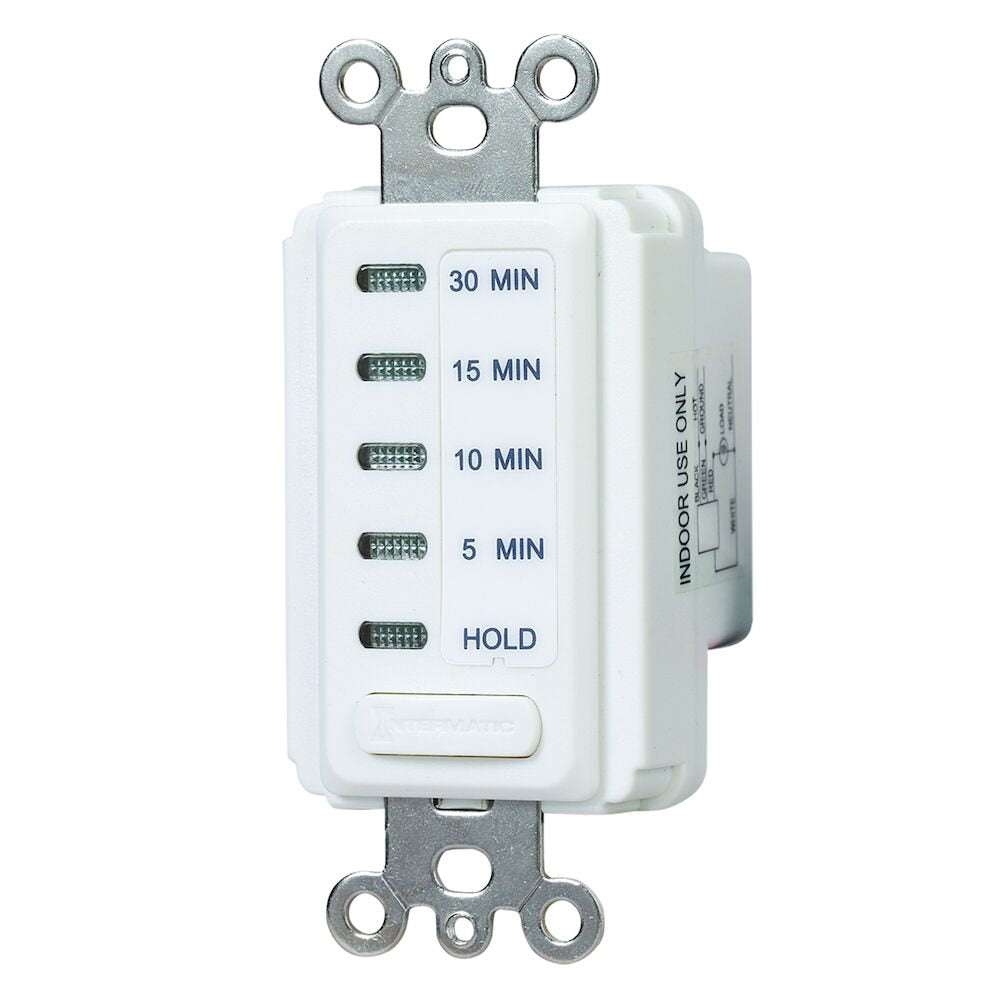

Intermatic EI200W Electronic Countdown Timer, 120 VAC, 60 Hz, Preset Times 5,10,15,30 Minute, With Hold, White

This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

  • No programming required
  • Provides silent operation in time ranges from five minutes to 30 minutes
  • Single-button time selection, with some models having a HOLD mode, for continuous ON operation
  • Replaces single-pole switches in a variety of applications
  • Incandescent/fluorescent/CFL/LED compatible
  • For use with decorator-style wall plate (not included)
  • Requires neutral connection

Applications:

  • Air Movement & Ventilation
  • Indoor Lighting Control

Specifications:

  • Color: White
  • Operation Mode: Countdown
  • Hold Mode Included: Yes
  • Countdown Time: 30 min
  • Neutral Connection Required: Yes
  • Warranty Period: 1-Year limited
  • Ballast Fluorescent: 8 A, 1000 VA
  • Electronic Ballast LED: 4 A, 500 VA
  • Motor Three Phase Ranges: 1/4 HP
  • RoHS Certification: Yes
  • Tungsten Incandescent: 1000 W
  • Operating Temperature Max (°F): 104
  • Operating Temperature Min (°F): 32
  • Input Voltage Range(s): 120 VAC, 60 Hz
  • Wiring Configurations: Single
  • Wall Plate Configurations: Single-Gang
  • Mechanism Type: Digital/Electrical
  • Time Presets: 5 min, 10 min, 15 min, 30 min
  • Application Compatibilities: CFL, Fluorescent, Incandescent, LED
  • Category: Electronic Countdown Timers Web
