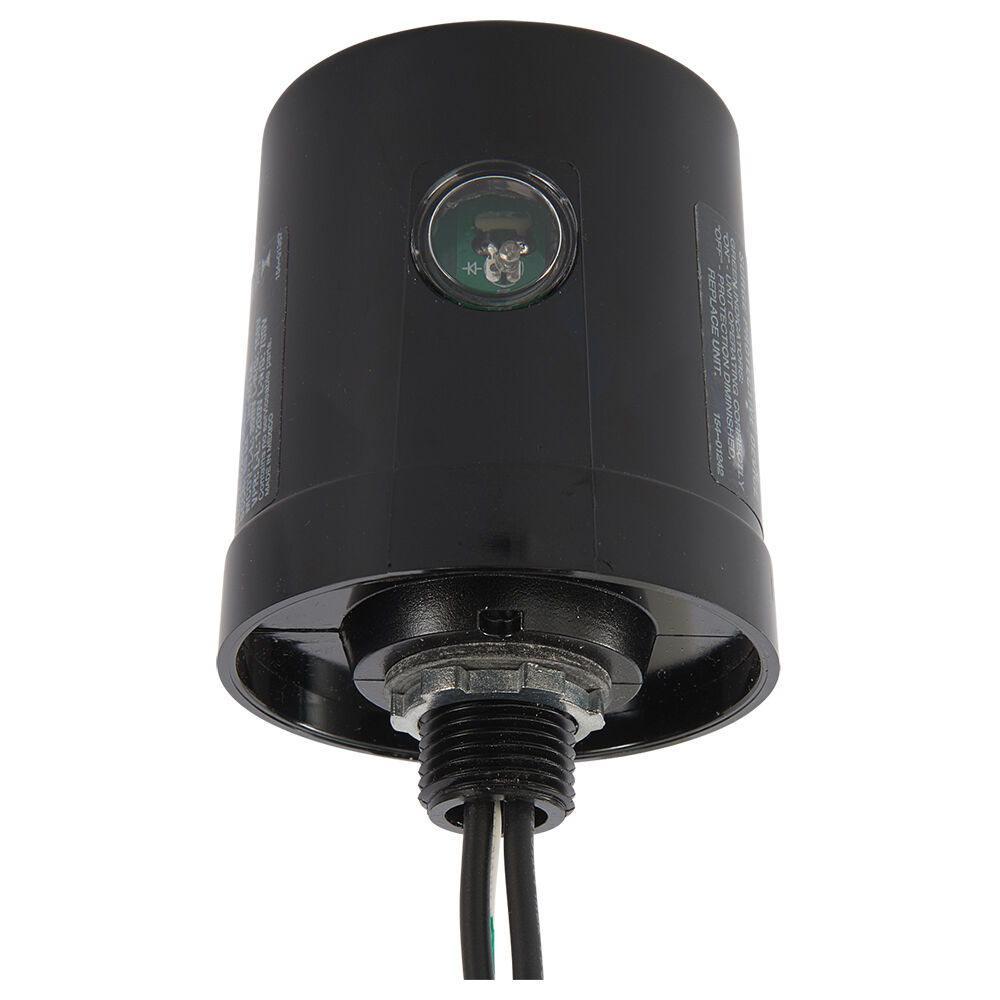

Intermatic AG48013 Surge Protective Device, 3-Mode, 277/480 VAC 1 Phase

IntermaticSKU: AG48013

Sale price $112.23
Sold out


Specification Sheet | Instructions

Intermatic AG48013 Surge Protective Device, 3-Mode, 277/480 VAC 1Ph, Type 1 or Type 2, Outdoor

The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection.

Type 1 applications include outdoor installations before service entrances and utility meter cabinets.

Type 2 applications include installations after service entrances.

Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.


  • Three modes of protection
  • TPMOV® surge protection technology
  • Green LED protection indicator
  • Type 4X watertight, plastic enclosure for outdoor installations
  • UV-resistant polycarbonate housing
  • 1?2" threaded nipple for 7?8" nominal conduit knockout
  • 1-year product warranty
  • UL Listed to ANSI/UL 1449 3rd edition
  • CSA certified to ANSI/UL 1449 3rd edition


  • Distribution Panel
  • Service Entrance


  • Modes of Protection: 3 (L1-N, L2-N, L1-L2)
  • Enclosure Type: Indoor/outdoor type 4X
  • Voltage: 277/480 VAC Single-Phase
  • Wiring Option: Wire leads
  • Category: Hard Wired Surge Web
  • Maximum Continuous Operating Voltage (L-L): 640
  • Maximum Continuous Operating Voltage (L1-L2): 640
  • Phase: Single
  • Surge Protection LED Indicator: Green
  • Voltage Protection Rating (L-G): 1200
  • Voltage Protection Rating (L-N): 1200
  • Operating Temperature Max (°F): 185
  • Operating Temperature Min (°F): -31
  • Product Height (in): 4 3/16"
  • Unit Carton Height (in): 3
  • Unit Carton Weight (lb): 1.098
  • Surge Protection Type: 1, 2
  • Surge Protection Technology: TPMOV®
  • Warranty Period: 1-Year limited
  • Maximum Surge Current Rating Per Phase: 50 kA
  • Maximum Continuous Operating Voltage (L-G): 320
  • Maximum Continuous Operating Voltage (L-N): 320
  • Nominal Discharge Current: 20 kA
  • Short Circuit Current Rating: 50 kA
  • UL Standard: Ansi/UL 1449 3rd Edition
  • Voltage Protection Rating (L-L): 2000
  • Wire Size Max: #6 AWG (Green), #10 AWG (Black, White)
