Intermatic - AG2083C3 - Surge Protective Device, 6-Mode, Outdoor

IntermaticSKU: AG2083C3

Sale price $141.74
Sold out


Spec Sheet  Install Manual

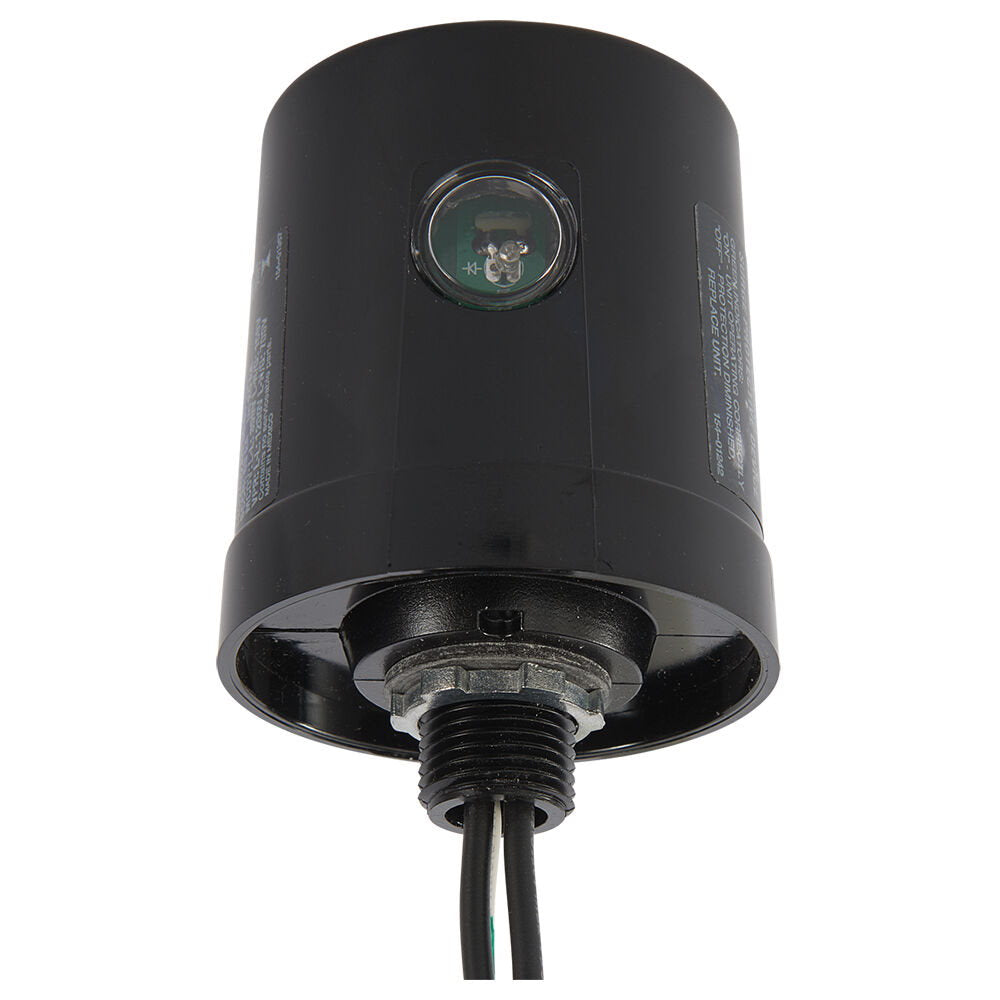

Intermatic AG2083C3 Surge Protective Device, 6-Mode, 120/208 VAC 3Ph Y, Type 1 or Type 2, Outdoor

The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection.

Type 1 applications include outdoor installations before service entrances and utility meter cabinets.

Type 2 applications include installations after service entrances.

Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.


  • Six modes of protection
  • TPMOV® surge protection technology
  • Green LED protection indicator
  • Type 4X watertight, plastic enclosure for outdoor installations
  • UV-resistant polycarbonate housing
  • 1?2" threaded nipple for 7?8" nominal conduit knockout
  • 1-year product warranty
  • CSA certified to ANSI/UL 1449 3rd edition


  • Distribution Panel
  • Service Entrance


  • Modes of Protection: 6 (L1-N, L2-N, L3-N, L1-L2, L1-L3, L2-L3)
  • Enclosure Type: Indoor/outdoor type 4X
  • Voltage: 120/208 VAC 3-Phase Wye
  • Wiring Option: Wire leads
  • Category: Hard Wired Surge Web
  • Maximum Continuous Operating Voltage (L-L): 300
  • Maximum Continuous Operating Voltage (L1-L2): 300
  • Phase: 3
  • Surge Protection LED Indicator: Green
  • Voltage Protection Rating (L-G): 700
  • Voltage Protection Rating (L-N): 700
  • Operating Temperature Max (°C): 85
  • Operating Temperature Min (°C): -35
  • Product Height (in): 4 3/16"
  • Unit Carton Height (in): 7.001
  • Unit Carton Weight (lb): 0.998
  • Surge Protection Type: 1, 2
  • Surge Protection Technology: TPMOV®
  • Warranty Period: 1-Year limited
  • Maximum Surge Current Rating Per Phase: 50 kA
  • Maximum Continuous Operating Voltage (L-G): 150
  • Maximum Continuous Operating Voltage (L-N): 150
  • Nominal Discharge Current: 20 kA
  • Short Circuit Current Rating: 50 kA
  • UL Standard: Ansi/UL 1449 3rd Edition
  • Voltage Protection Rating (L-L): 1200
  • Wire Size Max: #12 AWG
  • Operating Temperature Max (°F): 185
  • Operating Temperature Min (°F): -31
