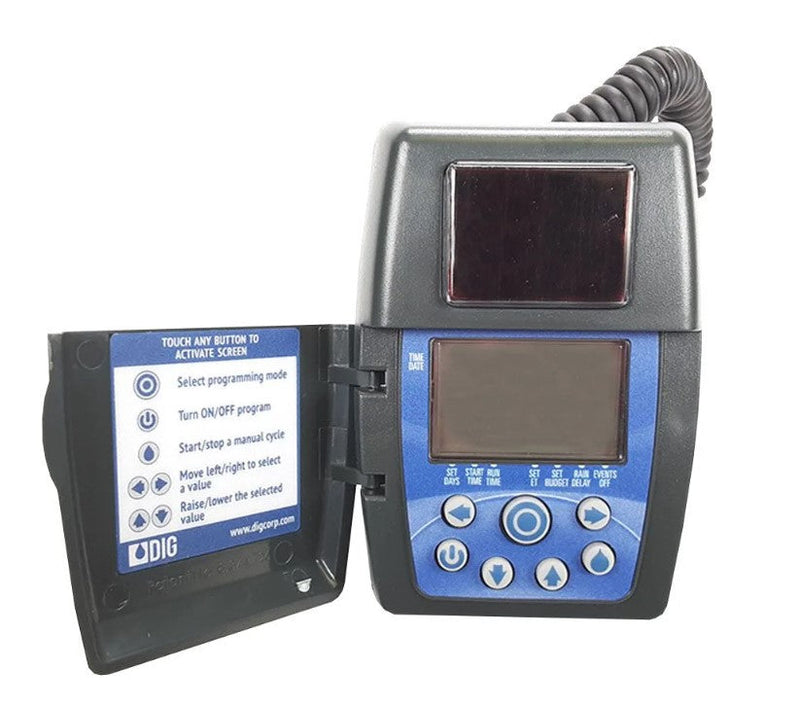

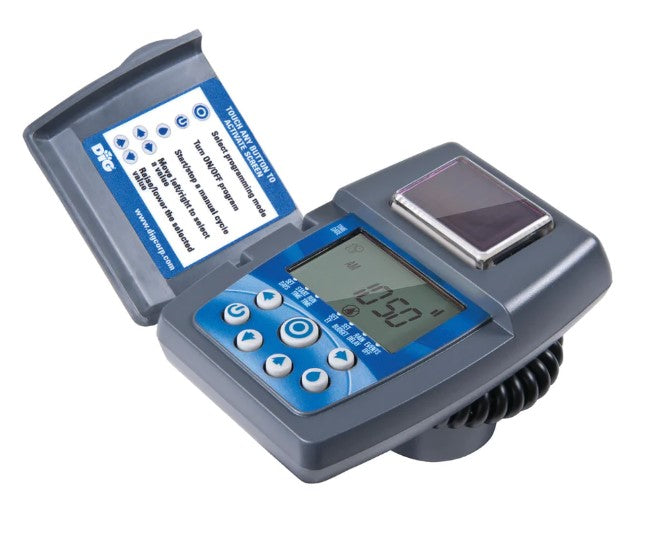

DIG LEIT Solar Powered controller ILV-200 with 2" Inline Valve
Spec Sheet Install Manual
Ambient Light Powered Irrigation Controller
Powered solely by ambient light (solar), DIG has developed a fully self-sustainable irrigation controller that doesn’t use batteries or an AC power source. The LEIT-1 requires no direct sunlight and can obtain enough power from surrounding light to operate both day and night in any weather condition. In addition, the LEIT-1 employs SimpleSmart™ programming which automatically adjusts irrigation schedules monthly to help eliminate over and under watering, ensuring a healthy landscape while saving water
Saves Water
• SimpleSmart™ ET feature automatically adjusts irrigation schedules monthly
• Rain- and moisture-sensor compatible
• Daily and monthly programming restriction options to comply with city and municipal watering restrictions
Uses Clean, Sustainable Solar Power
• No batteries to change or replace
• No direct sunlight required
• No wires
Versatile
• Easily retrofits to most manufacturers’ valves
• Three solenoid valve adapters included
Programming Features
• Five start times per day provide added flexibility for any type of watering application including sandy or clay soil
• Valve duration up to six hours in one-minute increments
• Custom programming schedules using weeks, odd days, even days or intervals of 1-30 days utilizing a yearly calendar with leap year
• Twenty historical ET programming presets with 10 climate zones, 10 for drip irrigation and 10 for spray systems
• Monthly seasonal adjustment that modifies the watering duration from 5% to 200% in 5% increments without modifying the controller’s program duration
• Irrigation suspension (rain delay) for up to 99 days; resumes irrigation automatically
• Rain Delay with up to 99 days with auto restart
Controller Specifications:
- Power source: ambient light (PVM)
- Controller power input: 3,000 -100,000+LUX
- Seven keypad buttons with integrated liquid crystal display
- Temperature range: 38°F to +140°F (3°C to +60°C)
- Solenoid: 7-12 VDC, two-way latching, normally closed
- Solenoid control orifice: .065" (1.65 mm)
- Encapsulated solenoid thread: 11/16"-12 UN male thread
- Retractable solenoid wire: 8.1" (coiled length when extended, approximately 36")
- Sensor connection: normally closed 6" (15 cm) yellow wire (16 AWG)
- Solenoid adapter: 11/16"-12 UN female thread x 3/4”-20 UNEF male threaded
- Valves type & sizes: globe 3/4", 1" , 1 1/2" and 2"
- Materials:
- Controller housing: high-impact plastic (polycarbonate)
- Solenoid housing: glass-reinforced nylon
- Plunger & spacer: 430F stainless steel
- Plunger rubber cap: EPDM
- O-ring: Buna-N
- RoHS
Flow Rates:
- 2 in: 30-160 GPM
- Operating Pressure: 10-150 PSI (.7-10.5 BAR)
- Temperature Range: Up to 170°F (76.7°C)
