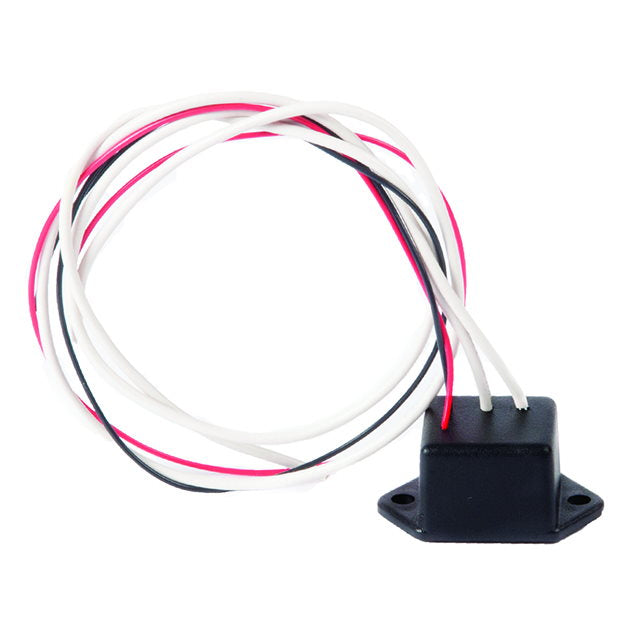

DIG Irrigation RIK-018 DC General Purposes Relay Interface DC Switch Module

DIG IrrigationSKU: RIK-018

Price:
Sale price $36.04
Stock:
Re-stocking soon

Description

DC latching switch-type relay interface module for general purposes

Features

  • Use for operation of pump fertilizer injector, fountain, light or any electrical equipment
  • Can be used with 720A, 740A and 760A
  • RoHS Compliant

Specifications

  • Relay function: Single Coil Latching
  • Input Voltage: Rated 3VDC
  • Input Rated Current: 67mA
  • Input Minimum Set/Reset Signal Width: 20miliSecond at 23 Degree C
  • Input Coil Resistance: 45 Ohms
  • Contact Rated Load: 10Amp and 250VAC, or 10Amp 30VDC
  • Contact Maximum Carrying Current: 10 Amps
  • Contact Maximum Resistance: 30 milliOhm
  • Insulation Resistance: 1,000 Mega Ohms
  • Weight: 50g, or 1.76oz
  • Length of Input (red, white) and Output (black, black) wires: 45cm, or 18in
