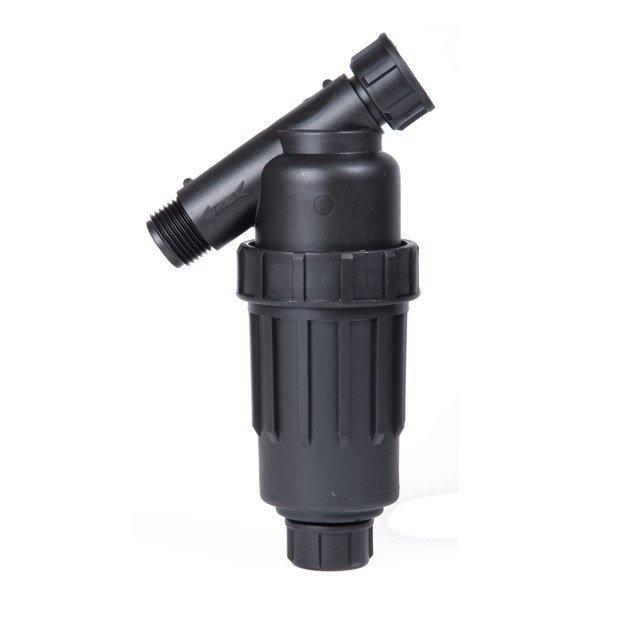

DIG Irrigation P15-155 3/4″ FHT Plastic Screen Filter w/ Stainless Steel Screen & Flush Valve, 155 Mesh

DIG IrrigationSKU: P15-155

Price:
Sale price $19.04
Stock:
In stock

Description

DIG’s heavy-duty plastic screen filters with hose thread are commonly used in residential and commercial installations to protect a drip irrigation system from debris that might enter the line and cause blockage of the emitters. The low maintenance, inexpensive screen filters provide reliable and trouble-free operation by removing fine sand and other particles that could otherwise block the small water passages of the drip and micro sprinklers.

Features

  • All-purpose filter with a wide range of polyester and stainless-steel screens from 180 to 80 micron to suit a wide range of filtration requirements
  • Screens have excellent resistance to most common chemicals
  • Color-coded replacement screens for easy identification
  • Large filter area and low friction loss allows long intervals between cleaning
  • Available with flush cap for easy flushing of particles trapped in the bottom of filter.
  • Recommended to be installed and used after the control valve.
  • Easy maintenance – the screen can be extracted from the filter for easy cleaning
  • Interchangeable screen and disc elements
  • Constructed of UV-resistant, durable plastic material to withstand the most adverse conditions

Specifications

  • Flow rates: up to 13 GPM (3.5 m3/h)
  • Screen filtration area: 14.9 sq inch (96 cm2)
  • Operating pressure: up to 120 PSI (8.4 BAR)
  • Temperature range: up to 130°F (54°C)
  • Polyester or stainless-steel screens from 80, 120, 155 to 200 mesh
  • Inlet and outlet size: 3/4" FHT x MHT with flush cap
  • Filter weight with screen: .46 lb (.21 kg)
  • Materials:
    • Housing: polypropylene
    • O-ring: EPDM
    • Pressure testing port: polypropylene
    • Pressure testing seals: natural rubber BR
