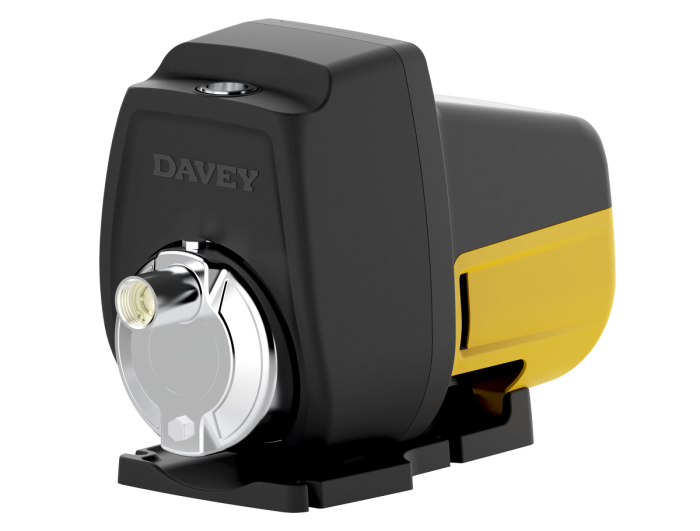

Davey EvoDrive ED16-40NPT Constant Pressure Booster Pump
Brand: Davey SKU: ED16-40NPT
The Davey EvoDrive ED16-40NPT is an innovative variable speed drive water pump system engineered to deliver consistent, uninterrupted water pressure for modern residential and light commercial properties. Equipped with an advanced Variable Frequency Drive (VFD), this smart booster pump automatically adjusts motor speed to match real-time water demand. Whether running a single faucet or supplying multiple bathrooms simultaneously, the EvoDrive ensures a powerful, stable flow while minimizing energy consumption and operational noise.
Designed to perform reliably across various climates and housing configurations, the EvoDrive features a compact design with a highly efficient permanent magnet motor for whisper-quiet day and night operation. Built from robust materials including 304-grade stainless steel impellers and casing, it offers a dependable, installer-friendly solution that integrates smoothly with above-ground tanks, underground reservoirs, or municipal water connections.
Key Features:
- Variable Frequency Drive (VFD): Automatically matches motor speed to water demand for stable, consistent pressure output and lower energy bills.

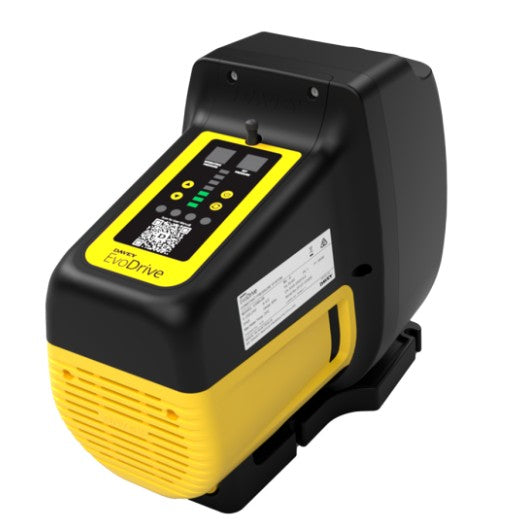

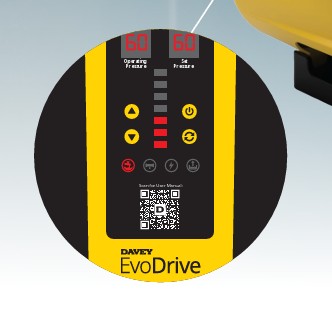

- Illuminated Digital Touch Panel: Provides simple configuration, effortless monitoring, and customized pressure adjustments at your fingertips.
- On-Screen Fault Alerts: Diagnoses issues early with direct display notifications, significantly reducing maintenance downtime.
- Comprehensive Pump Protection: Built-in dry run and loss of prime protection stop internal damage if the water supply runs low or suffers suction interruptions.
Technical Specifications:
- Maximum Flow Rate: 28 gpm
- Flow Rate at 40 psi: 16 gpm
- Maximum Pressure: 101.5 psi
- Maximum Casing Pressure: 145 psi
- Maximum Suction Lift: 13 ft
- Electrical Rating: 110-120 V, 11 A, 60 Hz
- Inlet / Outlet Connection: 1 inch NPT Female
- Material Construction: 304 Stainless Steel Impeller and Casing
- Operating Water Temperature Range: 37°F to 158°F
- Dimensions: 16.26" L x 7.8" W x 11.7" H
Installation & Versatility:
- Plug-and-Pump Setup: Designed for an efficient, hassle-free installation process that saves professionals time on site and minimizes homeowner disruption.
- Flexible Water Source Integration: Easily connects to municipal mains boosting, underground reservoirs, or rainwater/well tanks.
- Dual Pump Capabilities: Can be configured for dual pump operation to support duty/standby or assist pump modes in high-demand settings.
- Suction Lift Design: Supports up to 13 feet of suction lift, making it highly effective for remote water sources or deep above-ground configurations.
Common Applications:
- Medium to Large Family Homes: Seamlessly provides strong shower flow and simultaneous water pressure across multiple kitchens, bathrooms, and garden outlets.
- Light Commercial Properties: Delivers reliable, steady water pressure for small commercial applications such as cafes, boutique offices, and retail spaces.
- City Mains Pressure Boosting: Corrects low municipal water supply pressure to deliver a luxurious, high-performance flow throughout multi-story properties.
Frequently Asked Questions:
- Q: What type of fluid can the Davey EvoDrive pump handle?
- A: The system is designed for clean, clear, non-corrosive fluids with a neutral pH, and can tolerate a maximum sand/silica concentration of 0.04 oz/ft³.
- Q: Can this pump be used in multi-pump configurations?
- A: Yes, the EvoDrive can be easily configured for dual pump operation, supporting either duty/standby or combined output assist modes for demanding environments.
- Q: Does the system protect itself if water runs out?
- A: Yes, it features integrated dry run protection and loss of prime protection to safeguard internal components against damage during water supply failures.
The Davey EvoDrive ED16-40NPT is the ultimate smart booster pump for homeowners, contractors, and plumbers seeking efficient, whisper-quiet constant water pressure performance.
