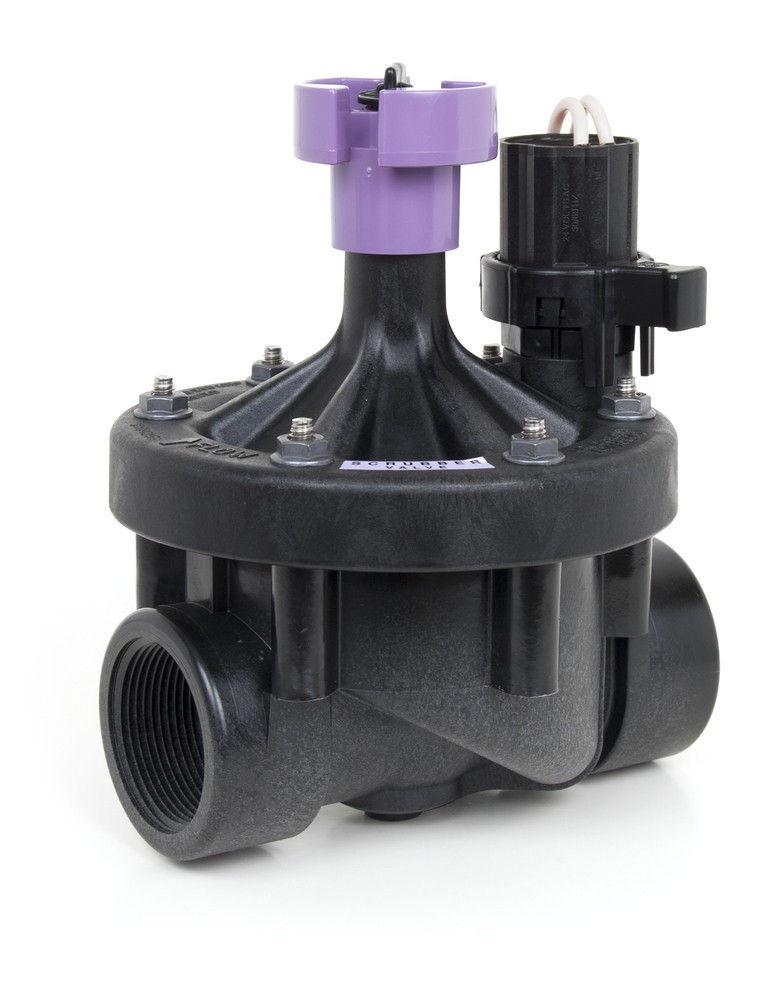

Rain Bird - 200PESBR 2" Inlet Inline Plastic Industrial Irrigation Valve (For Reclaimed Water)

Rain BirdSKU: 200PESBR

Price:
Sale price $233.37
Stock:
In stock

Description

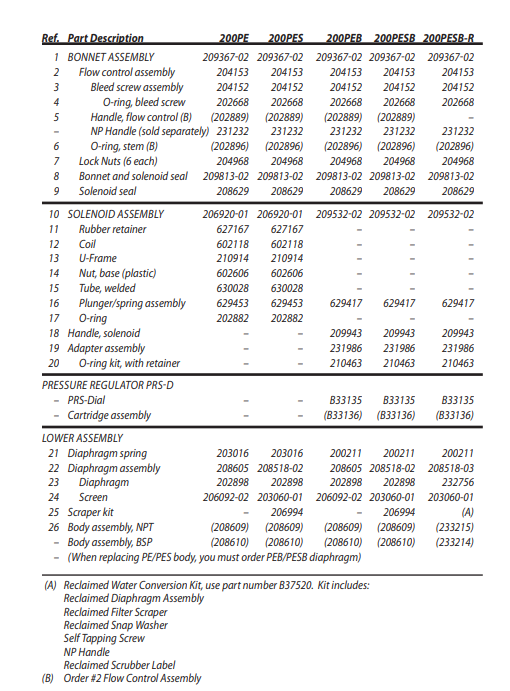

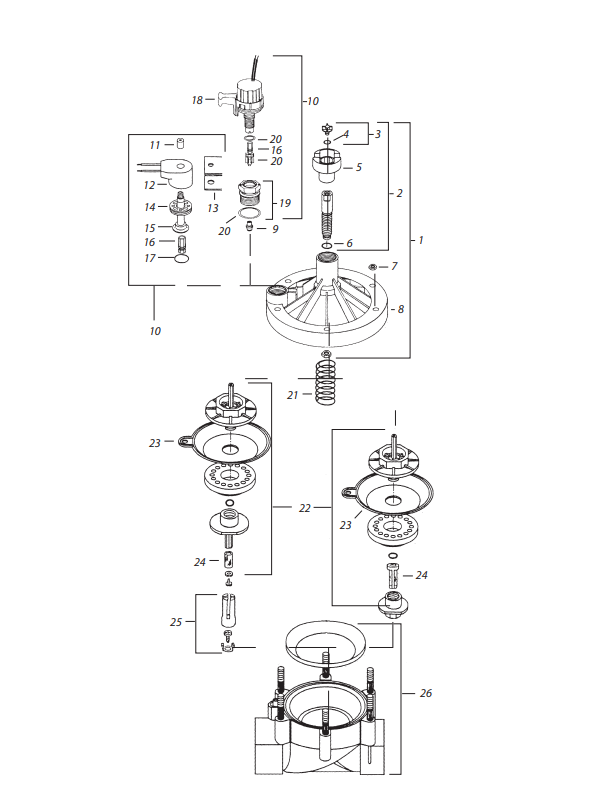

    MAINTENANCE GUIDE

    A true reclaimed water irrigation valve, able to handle chlorine and other chemicals found in reclaimed water systems. PESB-R Series valves offer long life and efficient, trouble-free performance – even in harsh reclaimed water applications.

    Constructed of heavy-duty, glass-filled nylon, these valves resist clogging and feature a patented scrubber to actively fight dirt, algae and other particles from blocking the pilot flow.

    • 2 in. (50/60) chlorine-resistant valve for reclaimed water irrigation applications
    • Plastic diaphragm and scrubber components molded of chlorine- and chemical-resistant plastic material
    • Durable glass-filled nylon construction for long life and heavy-duty performance at 200 psi (13,80 bars) pressure
    • Stainless steel studs molded into the body. Bonnet can be attached and removed easily without damaging threads
    • One-piece solenoid design with captured plunger and spring for easy servicing; prevents loss of parts during field service
    • External bleed protects the solenoid ports from debris when system is flushed
    • Purple flow control handle standard on PESB-R Series valves


    Additional features:

    • Internal bleed operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning on the valve at the controller first.
    • Slow closing to prevent water hammer and subsequent system damage.
    • Scrubber mechanism scrapes stainless steel screen clean to break down grit and plant material.
    • Accommodates optional, field installed PRS-D pressure regulating module to ensure optimum sprinkler performance.
    • Accepts latching solenoid for use with Rain Bird battery-operated controllers up to 150 psi (10,35 bars).

    • Valve Size: 2 in
    • Valve Type: Inline
    • Material: Plastic
    • Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
    • Valve Options: Dirty Water
    • Valve Series: PESB-R
    • Operating Temperature: Up to 150° F (66° C)
    • Electrical Specifications:
      • 24 VAC 50/60 Hz (cycles per second) solenoid
      • Inrush current: 0.41A (9.9VA)
      • Holding current: 0.14A (3.43VA)
      • Coil resistance: 30-39 Ohms
      • Flow Range:
        • Without PRS-D: 0.25 to 200 GPM (0,06 to 45,40 m3/h; 0,02 to 12,60 l/s)
        • With PRS-D: 5 to 200 GPM (1,14 to 45,40 m3/h; 0,32 to 12,60 l/s)
        • Operating Pressure: 20 to 200 psi (1,38 to 13,80 bars)
