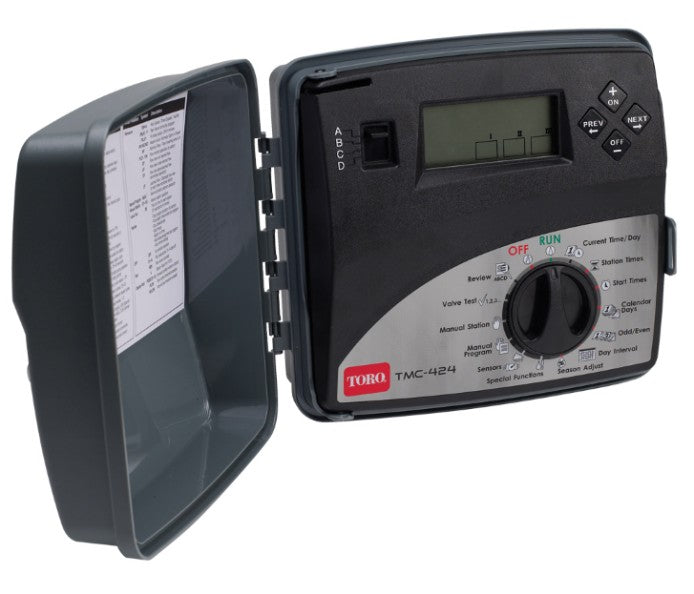

Toro TMC-424E-OD TMC-424E Modular Controller, Outdoor

ToroSKU: TMC-424E-OD

Price:
Sale price $275.99
Stock:
Sold out

Description

The TMC-424E Series takes modularity to a whole new level. Toro’s advanced modular technology combines sophisticated features with simple operation to provide a customisable controller.

  • Station count modularity from 4 to 24 stations using 4- and 8-station modules for flexibility

  • Standard or High Surge modules provide options to meet regional lightning protection needs

  • Monitor and react to system leaks or breaks

  • Options for connection of up to four Master Valve or Pump Start Relays utilizing TSM-4F and TSM-8F modules
Station Count Modularity

For flexibility and reduced inventory – modular from 2 to 12 stations in 2-station increments.



Up to 4 Master Valve or Pump Start Connections

Options for connection of up to four Master Valve or Pump Start Relays utilizing TSM-4F or TSM-8F modules.



Run Times In Minutes or Seconds

Ability to set run times for less than a minute provides efficient watering for planter box, misting cycle, nursery, or syringe cycle needs.



Flow-Sensing

Monitor and react to system leaks or breaks.



Two Levels of Surge Protection

Standard or High Surge modules provide options to meet regional lightning protection needs.

Power
120 VAC, 60Hz or 220/240 VAC, 50Hz

Weight
Indoor: 7.5 lbs (3,4 kg); Outdoor: 7.1 lbs (3,2 kg)

Number of Programs
4

Run Time
8 hours

Valves
2

Number of Start Times
16

Programming Options
Days of the Week; Odd/Even; Interval

Surge Protection
Optional High Surge; 6.0 KV common mode; 6.0 KV normal mode

Output Power
24 VAC (60 Hz)

Additional Features Four programs with 16 total start times

Three Scheduling choices

– Seven-day calendar

– 1- to 31-day interval with day exclusion

– Odd/even days with day exclusion

Station run times in minutes or seconds

Programmable well recovery/station delay from 1 to 60 seconds or 1 to 60 minutes

Pump start/master valve settable by program and station

Operate up to three programs simultaneously

Rain delay from one to 14 days and water budgeting from 0-200% in 10% increments

Hot-swappable station modules

Review feature quickly recaps all program information

Short detection for faster troubleshooting

Valve Test mode for quick system checks

Multi-language capability (English, Spanish, French, Italian, German and Portuguese)

Program erase 12/24-hour real-time clock

Non-volatile memory
