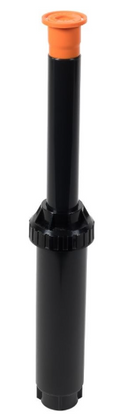

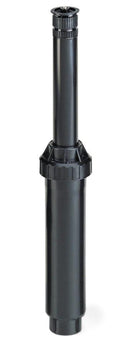

Rain Bird - 4" UNI-Spray Series Pop-Up Spray Head Sprinkler-No Nozzle

Rain BirdSKU: US400

Price:
Sale price $1.55
Stock:
In stock

Description

Specification

Rain Bird® UNI-Sprays and VAN Nozzles ensure the diverse needs of your landscape, including oddly shaped corners, will be evenly watered, leaving you with a beautiful lawn and garden. UNI-Sprays are ideal for smaller grassy areas around sidewalks and driveways; they can also be used for watering flowerbeds or shrubs. The UNI-Spray's compact design makes these sprinklers less noticeable when not in operation, so relax and enjoy your landscape.

* Uni-Spray does not come with a nozzle unless specified in the options*

The UNI-Spray™ accepts all Rain Bird nozzles, including MPR, VAN and U-Series, making it an excellent choice for watering standard and irregular-shaped turf and shrub areas.

For added convenience, these reliable, compact spray heads can be shipped with or without pre-installed Variable Arc Nozzles (VANs) that are adjustable from 0° to full circle operation, saving hours of installation time, effort and money.

Uni-Spray Features Include:
  • Pressure-activated, wiper seal prevents excessive flow-by and water waste. Keeps debris from entering upon retraction.
  • Durable stem ratchet allows for quick and easy nozzle pattern alignment.
  • Internal parts removable from the top of the sprinkler for easy servicing.
  • Small exposed cover makes the unit virtually invisible for more attractive landscapes.
  • Rugged cover and body provide durability in high pressure and surge conditions.
  • Plastic and stainless steel materials resist corrosion.
  • Available in popular 2-inch (5,1 cm) and 4-inch (10,2 cm) models to provide unobstructed watering of today’s taller turf grass varieties.
  • VAN nozzle and screen are easily removable for flushing.
  • UNI-Spray™ accepts all Rain Bird® Series nozzles and accessories, which simplifies inventory management.
  • Optional field installable Seal-A-Matic™ check valve prevents low head drainage up to five feet (1,5 m) of elevation difference.
Operating Range
  • Spacing Nozzles Needed:
    • 10 VAN Series: 8 to 10 feet (2,4 to 3,0 m)
    • 12 VAN Series: 10 to 12 feet (3,0 to 3,7 m)
    • 15 VAN Series: 12 to 15 feet (3,7 to 4,6 m)
    • 18 VAN Series: 14 to 18 feet (4,3 to 5,5 m)
  • Pressure: 15 to 70 psi (1,0 to 4,8 bar)
  • Optimum Pressure: 30 psi (2 bar)
  • Adjustable nozzle arc range: 0° - 360°
  • Flow-by:
    • 0 at 10 psi (0,75 bar) or greater
    • 0.20 GPM (0,04 m3/h; 0,01 l/s) otherwise
Dimensions
  • 1/2" (15/21) NPT female threaded inlet
  • Body height:
    • US-200: 3 3/4" (9,5 cm)
    • US-400: 5 7/8" (15 cm)
  • Exposed surface diameter: 1 1/4" (3,2 cm)

Specifications:

  • Inlet Size: 1/2"
  • Inlet Thread: NPT Female Threaded
