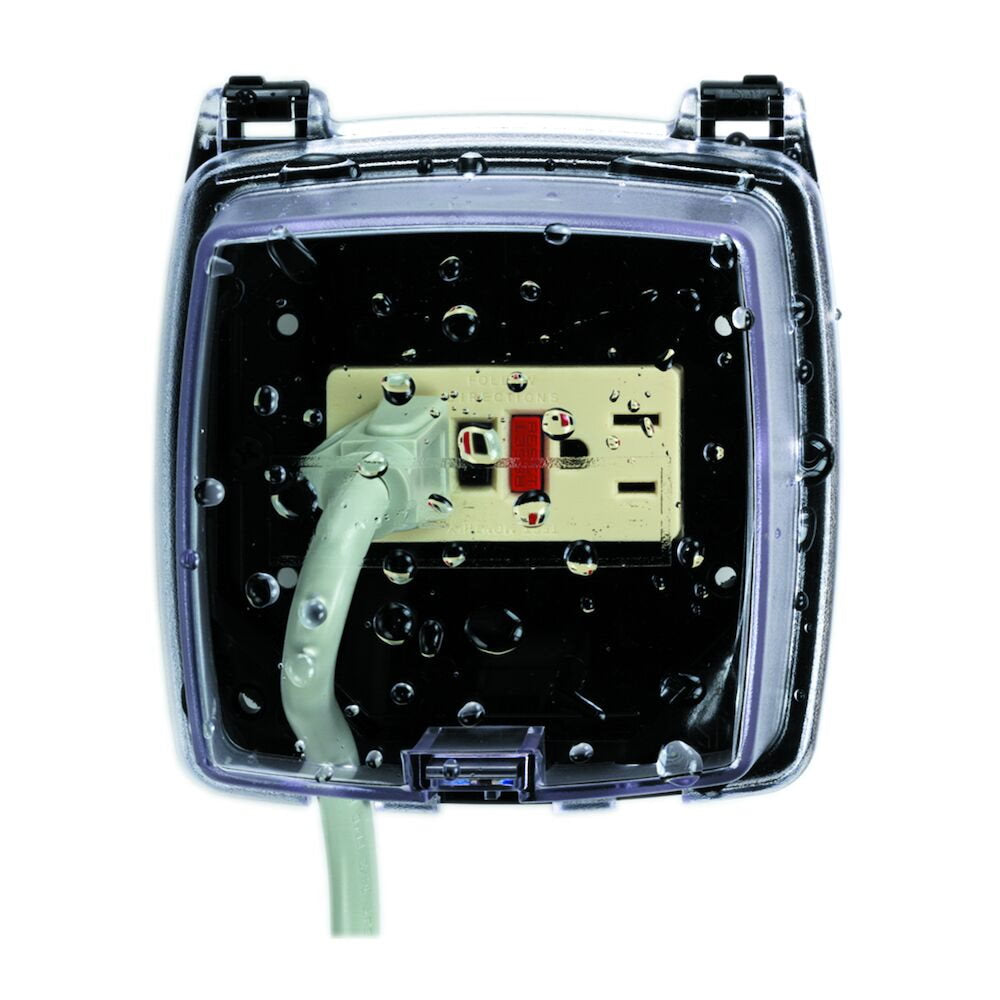

Intermatic - WP1020C - Plastic In-Use Weatherproof Cover, Double-Gang, Vrt, 2.25" Clear

IntermaticSKU: WP1020C

Price:
Sale price $12.12
Stock:
In stock

Description

Spec Sheet  Install Manual

Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.

Features:

  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8" (3 mm) thick neoprene gasket with slits for mounting screws
  • Two inserts provided with all models for multiple installations
  • Max cord size: (2) #14 AWG or (1) #12 AWG, WP1050 (2) #14 AWG or (1) #10 AWG
  • Warranty: 1-year limited

Applications:

  • Receptacle Protection

Specifications:

Box Type Double Color Clear
Is Extra-Duty Rated No Enclosure Type Outdoor type 3R plastic
Hinge Direction Vertical Warranty Period 1-Year limited
Accepted Cord Size Max 1x12 AWG, 2x14 AWG Cover Gasket 3mm
Insert Types Included WP101, WP102 Material UV Stabilized Polycarbonate
Weatherproof Cover Material UV Stabilized Plastic Product Depth (in) 2 1/4
Product Depth (mm) 57 Product Height (in) 5 1/2
Product Height (mm) 139.7 Product Width (in) 5
Product Width (mm) 127 Unit Carton Height (in) 3.133
Unit Carton Length (in) 5.503 Unit Carton Weight (lb) 0.4
Unit Carton Width (in) 5.253
