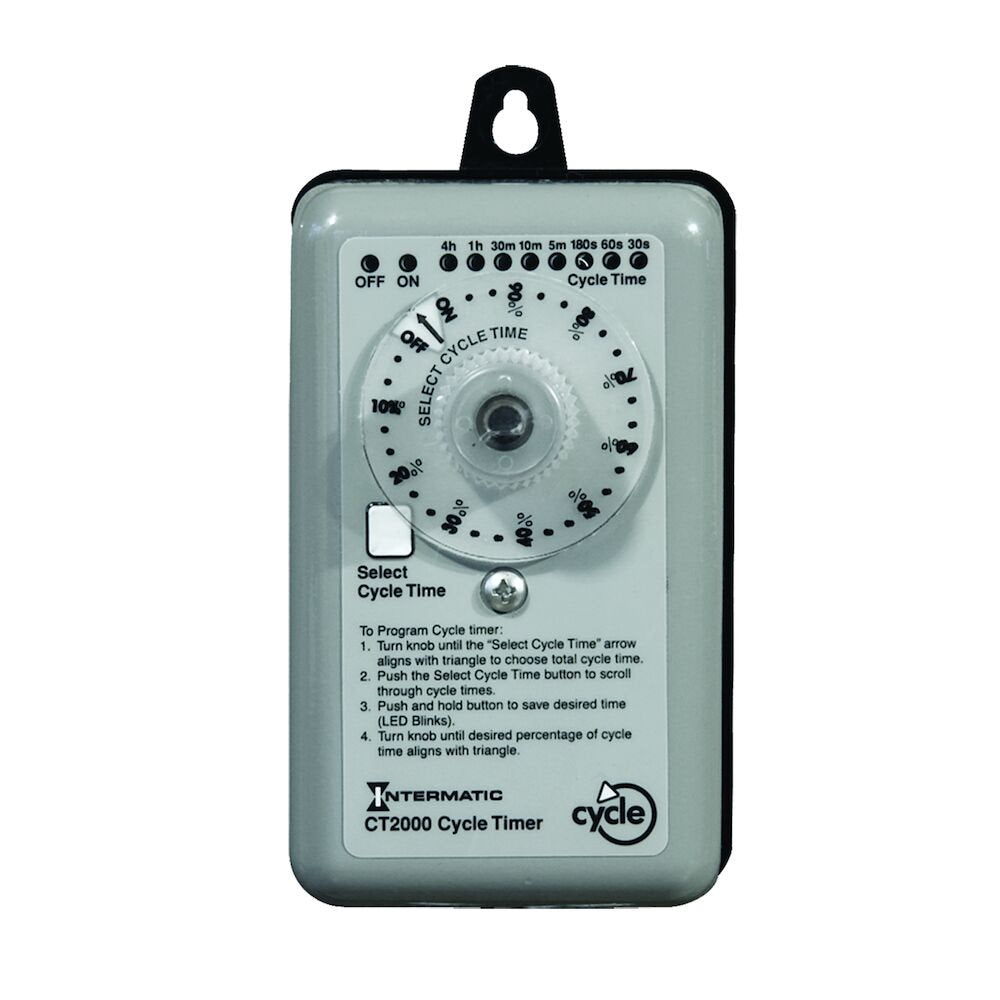

Intermatic - CT2000 - Percentage Cycle Time Switch

IntermaticSKU: CT2000

Price:
Sale price $162.08
Stock:
Sold out

Description

Install Manual

The CT2000 Percentage Cycle Time Switch is a field adjustable timer, offering true flexibility for repetitive cycle times via an upfront control button. The timer provides repetitive cycling for short-cycle applications. The timer enclosure includes two slotted mounting holes on 5" centers and a ½" knockout for conduit connection.

Features:

  • Provides 8 field-selectable cycle durations of 30 seconds, 1, 3, 5, 10, 30 minutes and 1 or 4 hours
  • Front cover button enables true flexibility for repetitive cycle times
  • Temporary and permanent manual overrides
  • 30 separate positions enable precise percentage ON time selection
  • User settings stored in non-volatile memory
  • No DIP switches to program cycle time
  • Type 3R indoor/outdoor aluminum enclosure

Applications:

  • Agriculture Feeders
  • Greenhouse Misting Control

Specifications:

  • Resistive: 20 A, 28 VDC
  • Enclosure Type: Outdoor type 3R metal
  • Wiring Option: Wire leads
  • Category: Specialty Time Switches Web
  • General Purpose: 20 A, 240 VAC, 60 Hz
  • Motor Three Phase Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC, 60 Hz
  • Resistive Load Ratings Ranges: 20 A, 28 VDC, 240 VAC, 60 Hz
  • Product Depth (in): 3.3125
  • Product Height (in): 6.625
  • Product Width (in): 3.5
  • Switch Type: SPST
  • Warranty Period: 12-Year limited
  • Ballast Fluorescent: 10 A, 277 VAC, 60 Hz
  • Cycle Duration: 1 min, 1-Hour, 10 min: 30 min, 3 min, 30 sec, 4 hours, 5 min
  • Motor (Three-Phase): 1 HP, 120 VAC, 60 Hz, 2 HP, 240 VAC, 60 Hz
  • Pilot Duty (NO): 470 VA, 240 VAC, 60 Hz
  • Tungsten Incandescent: 5 A, 240 VAC, 60 Hz
