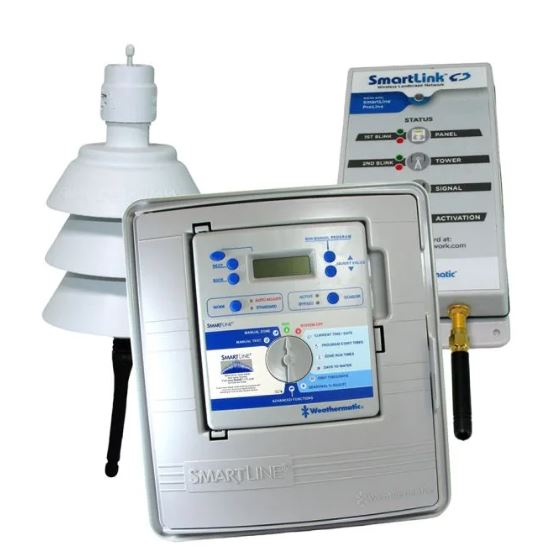

Weathermatic SL4848-1YR-BDL-M1NA SmartLink 48-Zone LTE Controller Bundle
Brand: Weathermatic | SKU: SL4848-1YR-BDL-M1NA
Product Overview
The Weathermatic SL4848-1YR-BDL-M1NA SmartLink 48-Zone Controller Bundle combines a commercial-grade SmartLine irrigation controller with cellular remote management and on-site weather sensing. Designed for systems with up to 48 conventional-wire irrigation zones, this bundle gives contractors, property managers, and property owners a convenient way to program and manage irrigation from the SmartLink platform without relying on the property's Wi-Fi network.
The bundle includes the SL4800 Series controller configured for 48 zones, required station modules, SLW5 Wireless Weather Station, SmartLink Aircard, and a 1-year SmartLink service plan. The LTE CAT M1 cellular connection allows the controller to communicate with Weathermatic's SmartLink system for remote access from compatible internet-connected devices.
Key Features
- Controls up to 48 conventional-wire irrigation zones
- LTE CAT M1 cellular communication for SmartLink connectivity
- Remote irrigation programming and management through SmartLink
- Includes 1-year SmartLink service plan
- Includes SLW5 Wireless Weather Station
- Weather-based Auto Adjust irrigation scheduling
- Standard mode for user-defined zone run times
- 4 independent irrigation programs
- 8 start times per program
- Zone run times from 1 minute up to 9 hours, 55 minutes
- Programmable rain delay from 1 to 7 days
- Nonvolatile memory retains controller programming
- Rain and freeze monitoring with the included SLW5 weather station
- Modular 48-station configuration
- Indoor/outdoor wall-mount enclosure
Common Uses
- Commercial landscape irrigation systems
- Large residential irrigation systems
- HOAs and multi-family properties
- Office and retail properties
- Schools and institutional landscapes
- Municipal irrigation systems
- Professional irrigation management
- Sites where remote access is needed without relying on local Wi-Fi
What's Included
- Weathermatic SL4800 Series SmartLine controller
- Station modules required for 48-zone operation
- SLW5 Wireless Weather Station
- SmartLink Aircard for LTE CAT M1 cellular communication
- 1-year SmartLink service plan
Technical Specifications
| Brand | Weathermatic |
| SKU | SL4848-1YR-BDL-M1NA |
| Series | SL4800 Series |
| Product Type | Smart Irrigation Controller Bundle |
| Number of Stations | 48 |
| Wiring Type | Conventional Wire |
| Communication | LTE CAT M1 Cellular |
| Number of Programs | 4 |
| Start Times | 8 Per Program |
| Zone Run Time | 1 Minute to 9 Hours, 55 Minutes |
| Operating Modes | Standard and Auto Adjust |
| Sensor Compatibility | Rain & Freeze |
| Voltage | 120V |
| Installation | Indoor / Outdoor |
| Mounting Type | Wall Mount |
| Enclosure | Front-Entry |
| Configuration | Modular |
| SmartLink Service | 1 Year Included |
Dimensions
| Width | 15 in. |
| Height | 16-1/2 in. |
| Depth | 5-7/16 in. |
SmartLink Remote Management
The included SmartLink Aircard uses LTE CAT M1 cellular communication to connect the SmartLine controller with Weathermatic's SmartLink platform. This allows authorized users to access controller programming and irrigation management functions remotely from compatible internet-connected devices.
SmartLink provides remote controller programming, manual zone and program operation, controller overviews, event information, historical reporting, valve location tools, and other irrigation management features.
Weather-Based Irrigation Control
The included SLW5 Wireless Weather Station enables the SmartLine controller's Auto Adjust mode. Instead of relying only on fixed watering times, the controller can use on-site weather data to calculate weather-based irrigation run times.
The SLW5 also supports adjustable rain shutoff and freeze protection. Freeze shutoff activates at approximately 37°F to help prevent irrigation during freezing conditions.
Compatibility & Notes
This bundle is configured for 48 conventional-wire irrigation zones and uses LTE CAT M1 cellular communication for SmartLink connectivity. Cellular network coverage is required for remote SmartLink communication.
Flow Monitoring Note: SKU SL4848-1YR-BDL-M1NA is the standard 48-zone SmartLink bundle and does not include the flow-enabled Aircard. Weathermatic offers SL4848-1YR-BDL-FLOW-M1NA as the corresponding 48-zone bundle with flow capability.
Service Note: This bundle includes 1 year of SmartLink service. Continued use of subscription-based SmartLink connectivity after the included service period requires an applicable SmartLink service plan.
Frequently Asked Questions
How many zones can the Weathermatic SL4848-1YR-BDL-M1NA control?
The controller is configured to operate up to 48 conventional-wire irrigation zones.
Does the SL4848 SmartLink bundle require Wi-Fi?
No local Wi-Fi network is required for SmartLink communication. The included SmartLink Aircard uses LTE CAT M1 cellular communication to connect the controller with Weathermatic's SmartLink system. Cellular network coverage is required.
Does this bundle include the weather station?
Yes. The SLW5 Wireless Weather Station is included and enables weather-based Auto Adjust scheduling along with rain and freeze monitoring.
Does SL4848-1YR-BDL-M1NA include flow monitoring?
No. This SKU is the standard 48-zone SmartLink bundle without flow capability. The flow-enabled version is Weathermatic SKU SL4848-1YR-BDL-FLOW-M1NA.
Why Buy the Weathermatic SL4848-1YR-BDL-M1NA?
The Weathermatic SL4848-1YR-BDL-M1NA packages the major components needed for centralized management of a larger conventional-wire irrigation system into one solution. With 48-zone capacity, cellular SmartLink access, on-site weather sensing, and a 1-year service plan included, it is a strong fit for contractors, property managers, HOAs, and property owners who need reliable remote access to irrigation programming without depending on a site's Wi-Fi network.
