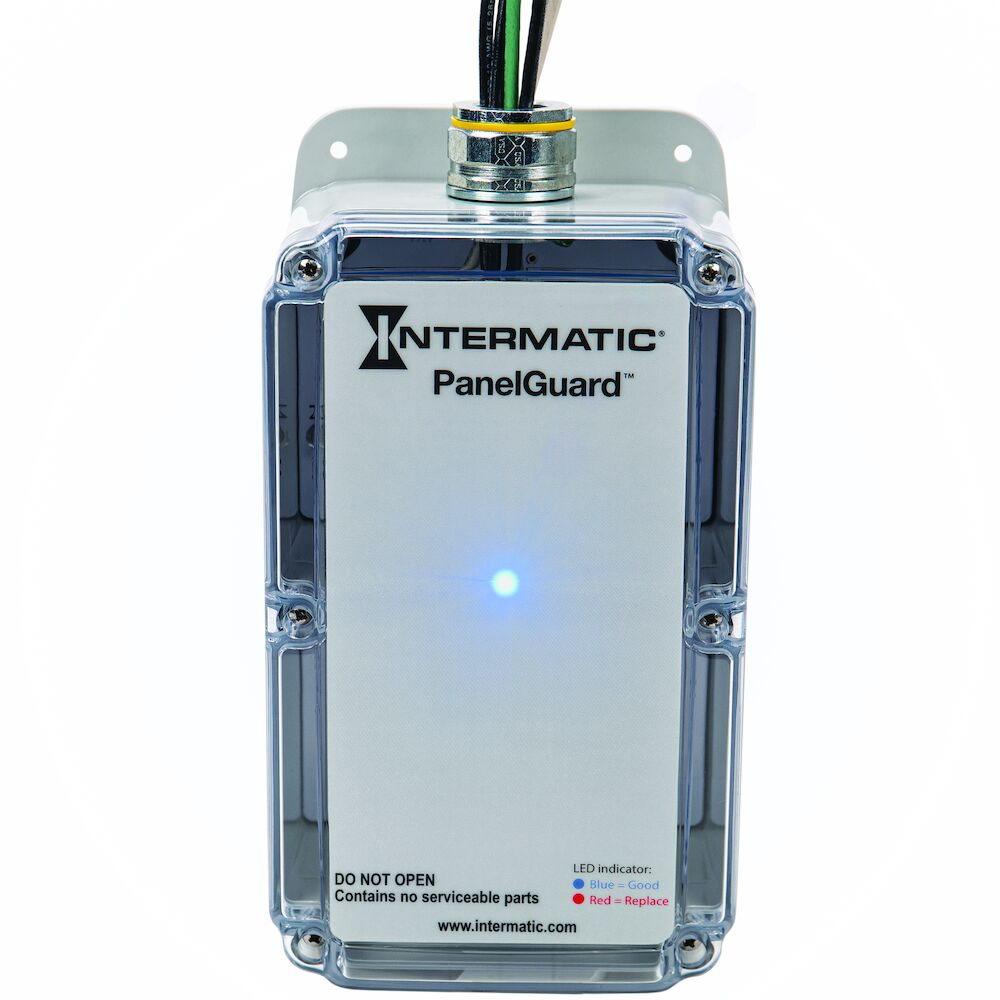

Intermatic L10F23Y2DG1 Surge Protective Device, 4-Mode, 277/480 VAC 3Ph Y, Type 2, EMI/RFI Filter, Surge Current Rating 100kA
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
- Type 2 surge protection
- Optional audible alarm and dry relay contacts
- 4 Modes of protection
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- Optional advanced electrical noise filter (UL 1283)
- Blue LED protection status indicator, and red LED service indicator
|Color||Gray||Modes of Protection||4|
|Surge Protection Type||2||Enclosure Type||NEMA Type 4X|
|Surge Protection Technology||Individually integrated thermal disconnect technology TPMOV||Voltage||277/480 VAC 3-Phase Wye|
|Filter||EMI/RFI Filter||Warranty Period||5-Year limited|
|Has LED Remote Contact Audible Alarm||No||Maximum Surge Current Rating Per Phase||100 kA|
|AC Sinewave Tracking (EMI/RFI) Level||Sinewave tracking (EMI/RFI) level is up to 54? dB? from 2 kHz to 100 MHz||Conduit Size||3/4"|
|Diagnostics Indicator||Blue LED Protection Status Indicator, Red LED Service Indicator||Maximum Continuous Operating Voltage (L-G)||320|
|Maximum Continuous Operating Voltage (L-L)||640||Maximum Continuous Operating Voltage (L-N)||320|
|Maximum Continuous Operating Voltage (N-G)||320||Maximum Surge Current Rating Per Mode||100 kA|
|Nominal Discharge Current||20 kA||RoHS Certification||Yes|
|Short Circuit Current Rating||200 kA||Surge Protection LED Indicator||Yes|
|Voltage Protection Rating (L-G)||2500||Voltage Protection Rating (L-L)||2500|
|Voltage Protection Rating (L-N)||1200||Voltage Protection Rating (N-G)||1200|
|Wire Size Max||#10 AWG||Operating Temperature Max (°C)||80|
|Operating Temperature Max (°F)||176||Operating Temperature Min (°C)||-40|
|Operating Temperature Min (°F)||-40||Product Depth (in)||3.29|
|Product Depth (mm)||83.57||Product Height (in)||10.59|
|Product Height (mm)||268.99||Product Width (in)||5.25|
|Product Width (mm)||133.35||Unit Carton Height (in)||4.375|
|Unit Carton Length (in)||12.625||Unit Carton Weight (lb)||0.6|
|Unit Carton Width (in)||6.375|
